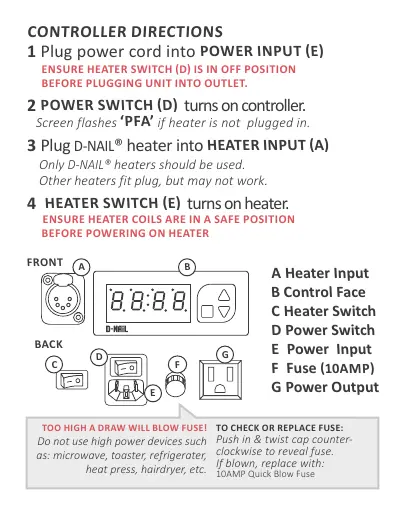

CONTROLLER DIRECTIONS
1 Plug power cord into
POWER INPUT (E)
ENSURE HEATER SWITCH (D) IS IN OFF POSITION
BEFORE PLUGGING UNIT INTO OUTLET.
2
POWER SWITCH (D)
turns on controller.
Screen flashes
‘PFA’
if heater is not plugged in.
3 Plug
D-NAIL
® heater into
HEATER INPUT (A)
Only
D-NAIL
® heaters should be used.
Other heaters fit plug, but may not work.
4
HEATER SWITCH (E)
turns on heater.
ENSURE HEATER COILS ARE IN A SAFE POSITION
BEFORE POWERING ON HEATER
C
D
E
F
G
A Heater Input
B Control Face
C Heater Switch
D Power Switch
E Power Input
F Fuse
(10AMP)
G Power Output
BACK
FRONT
A B
TO CHECK OR REPLACE FUSE:
Push in & twist cap counter-
clockwise to reveal fuse.
If blown, replace with:
10AMP Quick Blow Fuse
TOO HIGH A DRAW WILL BLOW FUSE!
Do not use high power devices such
as: microwave, toaster, refrigerater,
heat press, hairdryer, etc.
