ENGLISH
23
The pump operates exactly the same as a pump with a “start-stop” system and flow and pressure
control. When the pressure drops below the set value the pump starts, when the tap is turned off the
pump stops, if there is a lack of water the pump stops and a warning is signalled on the pump’s control
panel. After a preset time the pump automatically starts again and if all operations are within the set
parameters the pump carries on operating normally.
The system also includes a special anti-stench and anti-draining trap.

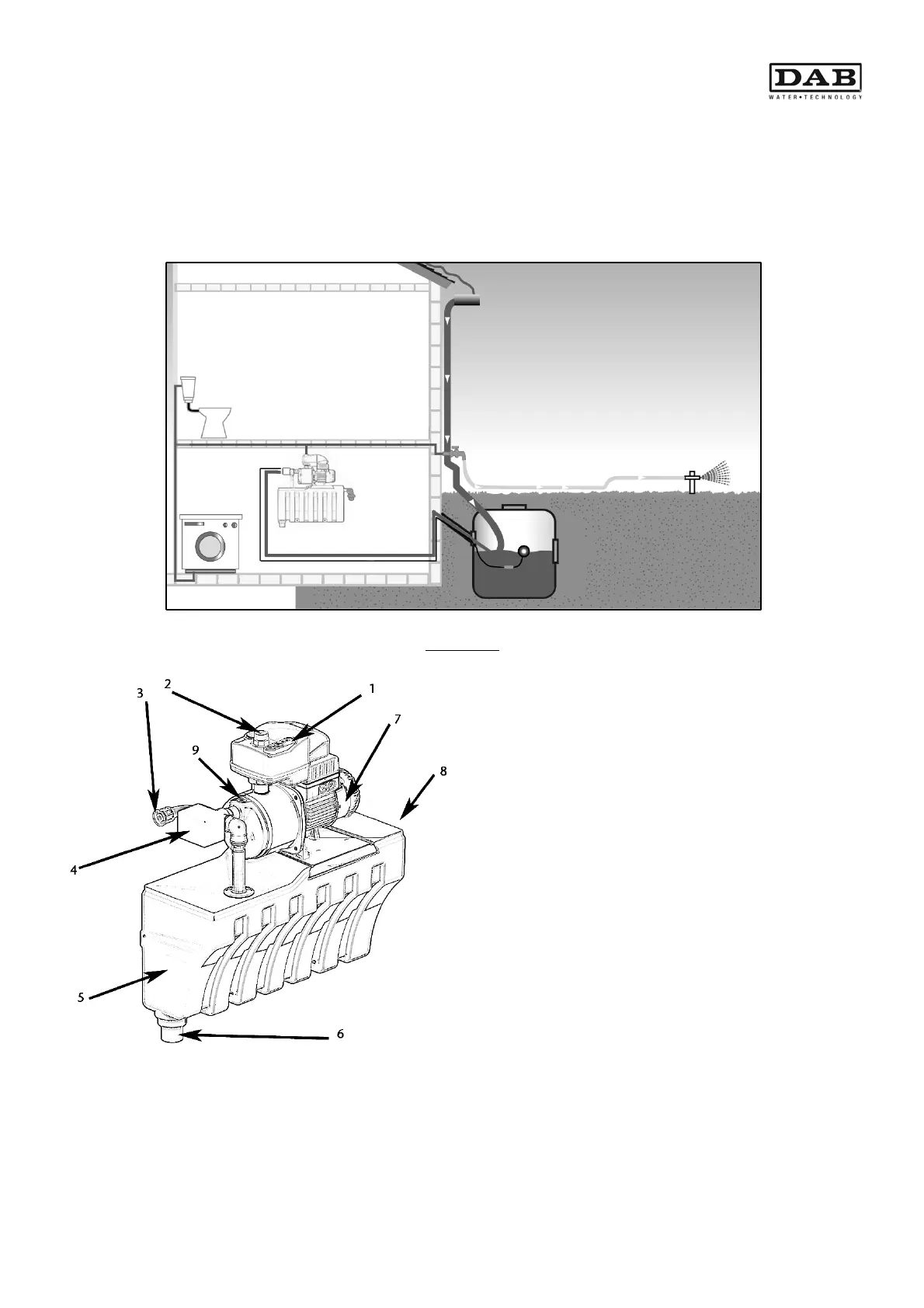

Figure 01
1. pump control panel
2. pressurised water outlet
3. recovery tank suction
4. 3-way valve
5. mains water collection tank
6. trap overflow
7. pump
8. mains water inlet
9. pump filler plug
