dacell DN501A - 3-6. Rear Panel

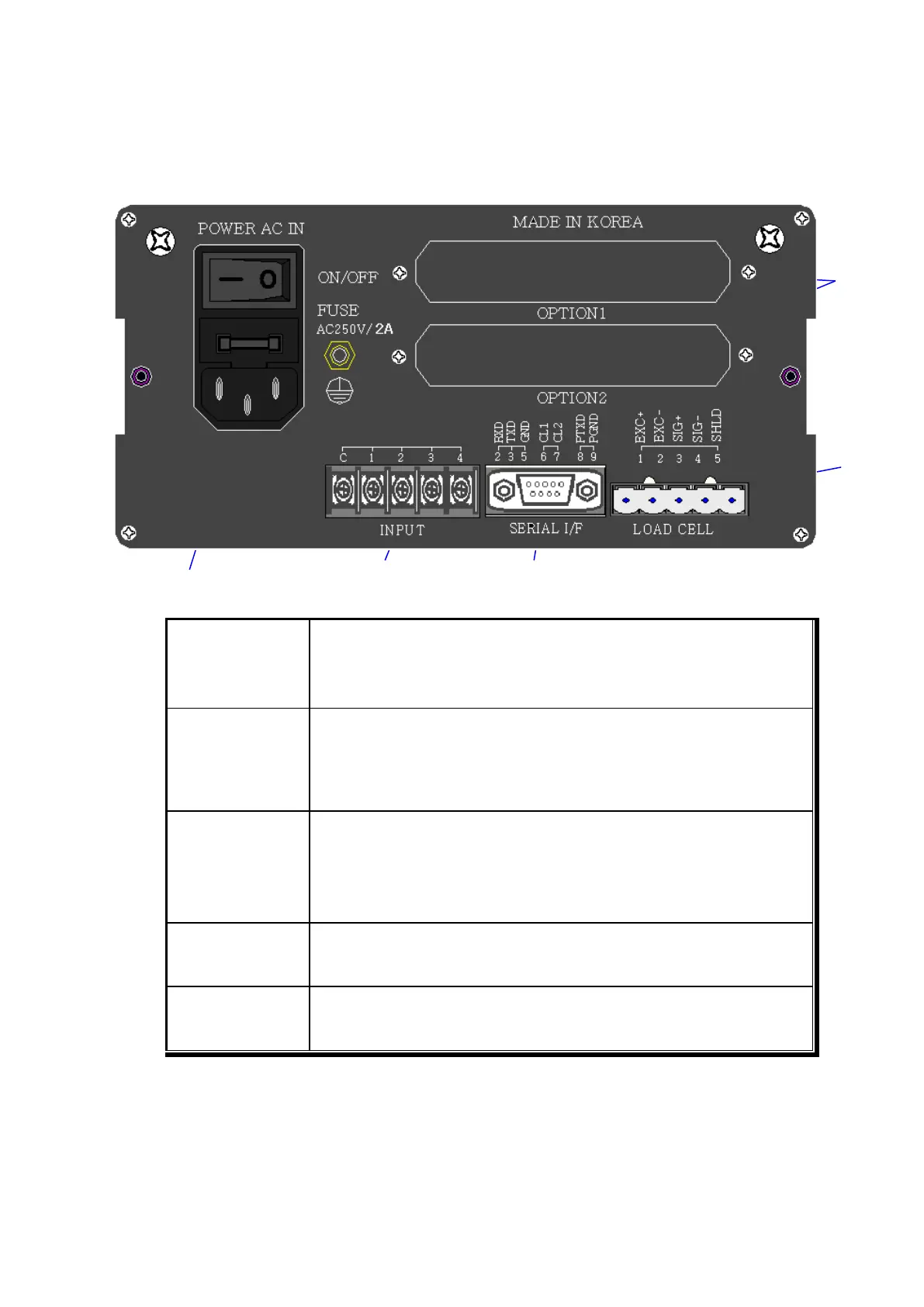

3-6. Rear Panel
①POWER
-Power ON/OFF Switch
-Fuse : AC 250V 2A
-AC IN : AC110/220V selectable through DIP switch
②OPTION 1,2
- OPTION BOARD install slot.
- ANALOG out, Serial I/F, etc
③LOAD CELL
CONNECTOR
(N-16)
-EXC + (+5V) PIN1 (RED)
-EXC - (-5V) PIN2 (WHITE)
-SIG+ PIN3 (Black)
-SIG- PIN4 (Green)
-SHIELD PIN5 (SHEILD)
④Digital Input
- Digital Input Signal terminal
Refer to “F-function 11”.
⑤Output
Terminal
- RS-232C / CURRENT LOOP / PRT (Standard Installed)
( RXD,TXD,GND,CL1,CL2,PTXD,PGND)
