6. Serial Printer Interface (Standard).
This interface can be connected all kinds of serial interface installed printer devices.
But, programmed print format is specialized with our serial printer only.
So, if you use different model, the format can be changed or not printed.
8-1. Printer Specification
1. Interface : Rs-232
2. Protocol : 9600 bps, No Parity, Data(8), Stop(1)
3. Column : 30 Column
4. Printing type : Combination type
8-2. Pin Connection

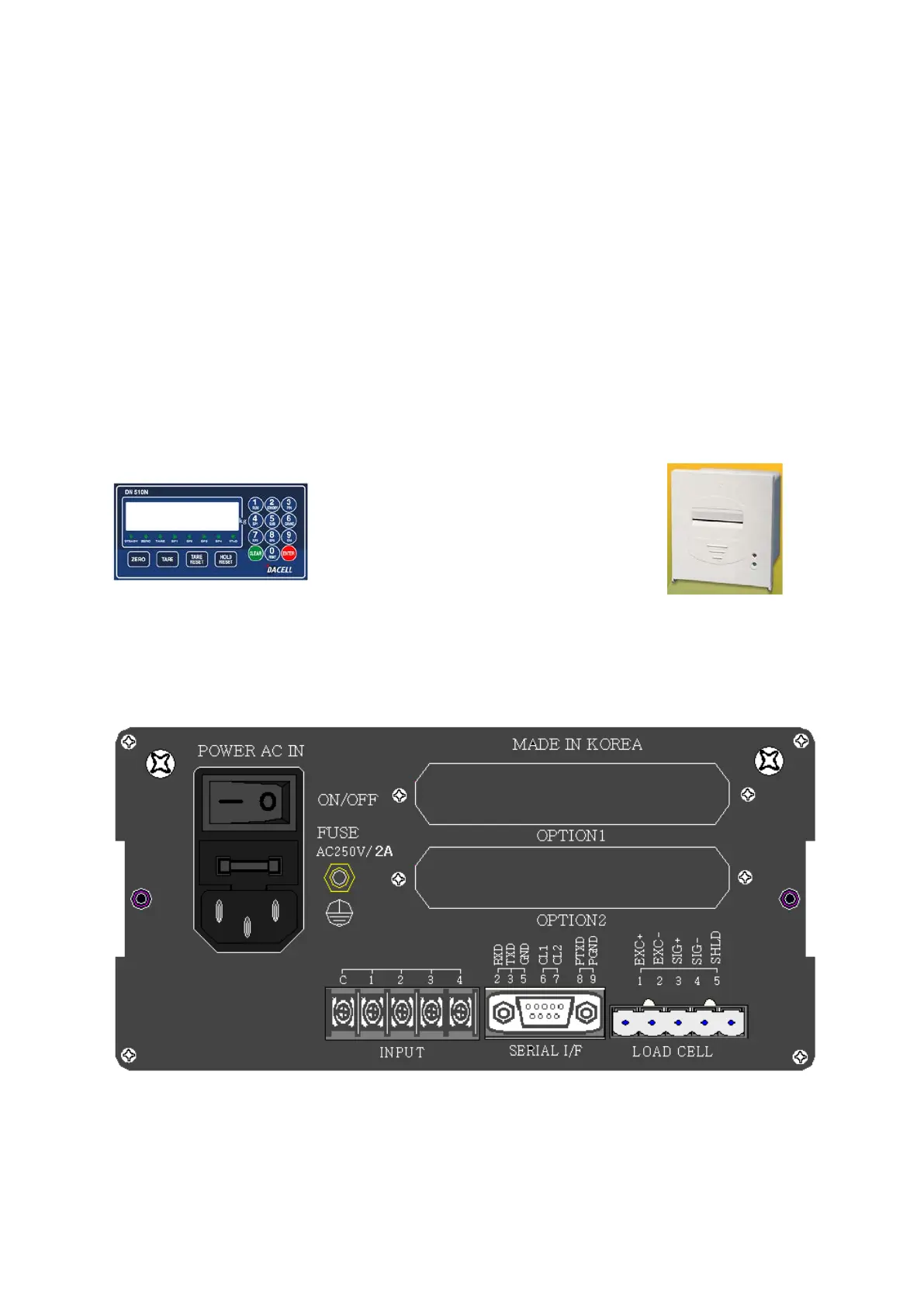

DN500N Series Indicator Serial Printer
8-3. Print Port
GND ---------------------- GND
TXD ----------------------- RXD
