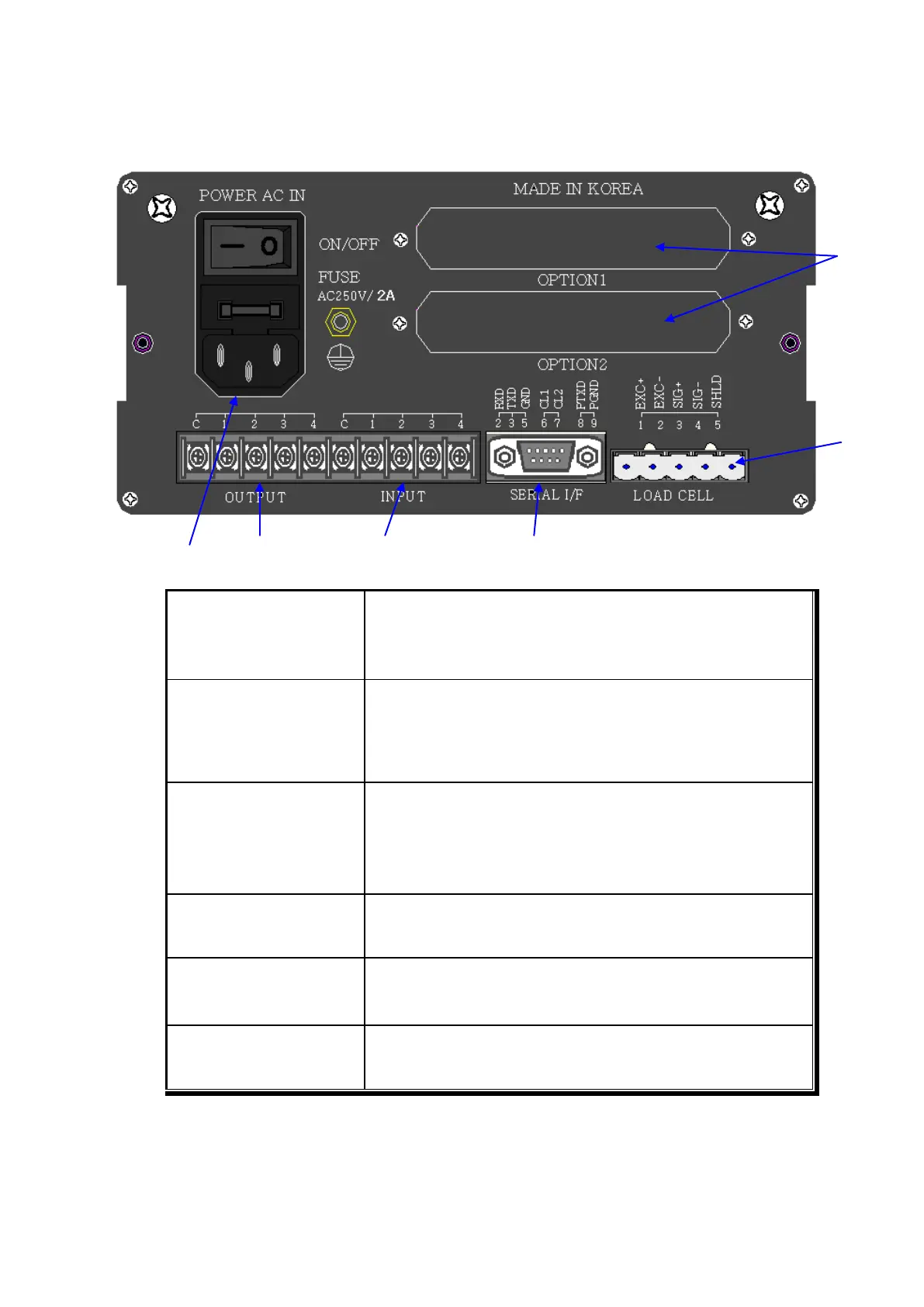

3-6. Rear Panel
①POWER
-Power ON/OFF Switch
-Fuse : AC 250V 2A
- AC IN : AC110/220V selectable through DIP switch
②OPTION 1,2
- OPTION BOARD install slot.
- ANALOG out, Serial I/F, etc
③LOAD CELL
CONNECTOR (N-16)
-EXC - (-5V) PIN2 (WHITE)
-SIG+ PIN3 (BLACK or BLUE)
-SIG- PIN4 (GREEN)
-SHIELD PIN5 (SHEILD)
④Digital Input
- Digital Input Signal terminal
Refer to “F-function 11”.
⑤ Relay Output
4pcs Relay output terminal
- According to “F21-XX” setting, relay will be output.
⑥ Output Terminal
-RS-232C / CURRENT LOOP / PRT (Standard Installed)
( RXD,TXD,GND,CL1,CL2,PTXD,PGND)
①
②
③
⑤
