dacell DN520N - Page 25

PAGE 24 / 53

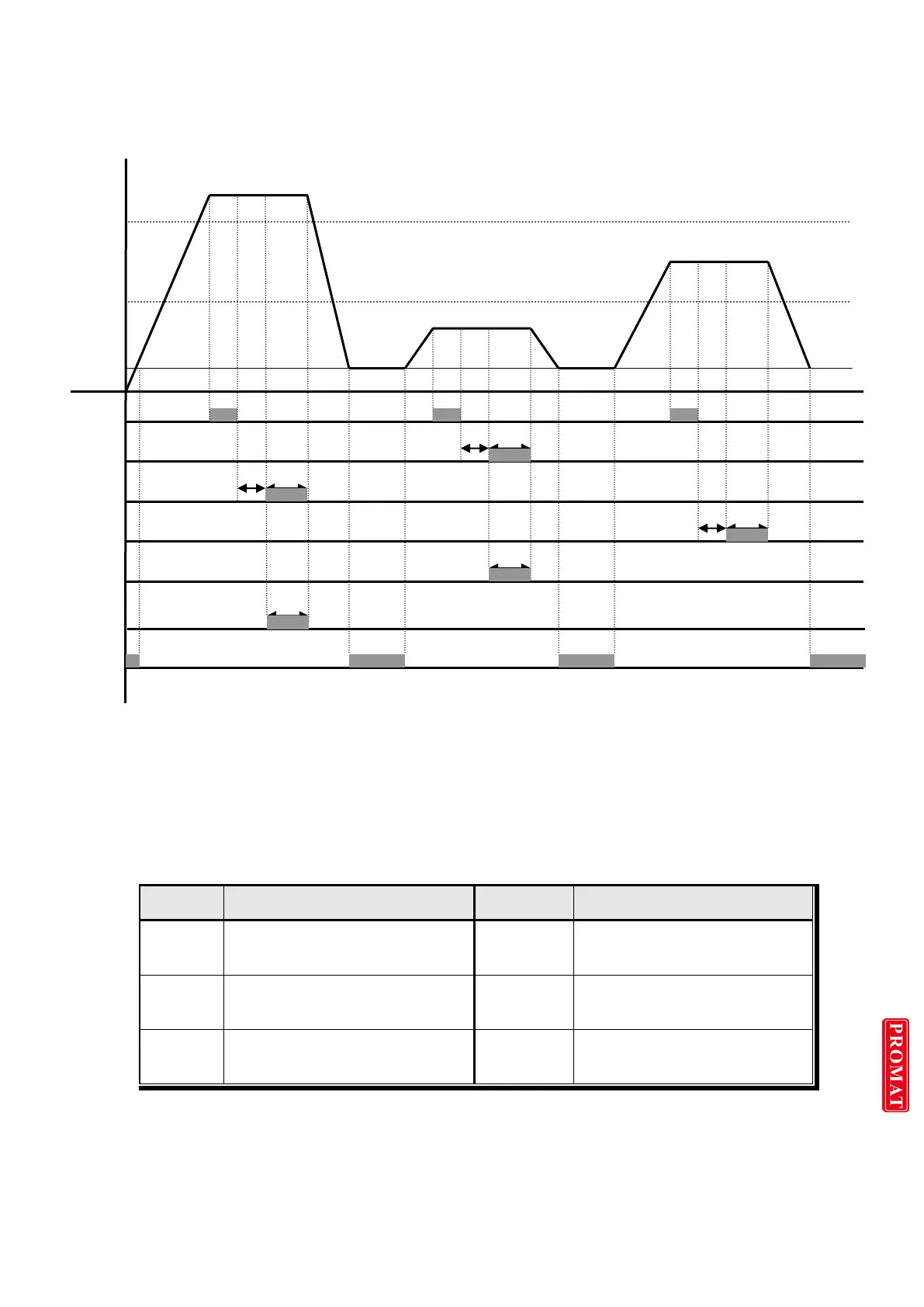

◆ Weighing Mode 4. Comparison Mode (F21-04 setting) - Checker Mode 2.
1. Set value setting
LOW (Low Limit), HIGH(Over Limit), OK will be within LOW and HIGH.
2. Each relay will be “ON” within its own acceptable range after “t3”time, during “t4” time.
3. Weight Judgment will be started after “HOLD” input.
After Finishing Judgment, press “HOD RESET” and start new weight judgment.
4. Relay Output
Relay
Contents
Relay
Contents
LOW
Less than LOW set value, “ON”
LOW N.G
Less than LOW set value, “ON”
HIGH
More than HIGH set value, “ON”
HI N.G
More than HIGH set value, “ON”
OK
LOW <Steady Weight<HIGH,
“ON”
NEAR
ZERO
Within “EMPTY” range (ON)
t3
t3
t3
t4
t4
t4
t5
t5
Weight
EMPTY
HOLD Input
LOW
HI
OK
LOW N.G
Empty
HI Range
LOW Range
HI
LOW
OK
Output 1
Output 5
Output 3
Output 2
Output 4
HI N.G
Output 6
