Dacor Distinctive Series - Cabinet and Countertop Dimensions

PLANNING
GUIDE
www.Dacor.com
Phone: (800) 793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
4.19
See note 2
2
See Cabinet/Countertop Dimensions - Top View
3
Not applicable for cabinets more than a horizontal
distance of 10” (254mm) from the edge of the cooktop.
1
Vertical to combustible surface from cooktop grate level;
if installing an overhead vent hood, also check the hood
specifications for minimum required clearances.
C
13” (330 mm)
max.
3
Top of
finished
counter
18” (457 mm)
Min.
1, 3
30” (762 mm)
Min.
1
Cutout for
utility access
Hood
Recommended
gas and electrical
service location,
consult local code
B
10” (254 mm) to
combustible side
wall Min. both sides
1/2” (13 mm)
overhang,
both sides
1 1/2” (38 mm)
typical countertop
thickness
7 3/4”
(197 mm)
36” (914 mm)
typical
Cooktop platform
1” (25 mm) Min.
thickness
Model No. B C
DRT304S
30” (762 mm)
30” (762 mm)*
36” (914 mm)**
DRT366S
36” (914 mm)
36” (914mm)*
42” (1067 mm)**
* Minimum ** Recommended
Cabinet tolerances: +1/16”, -0 (+1.6 mm, -0)
unless otherwise noted.

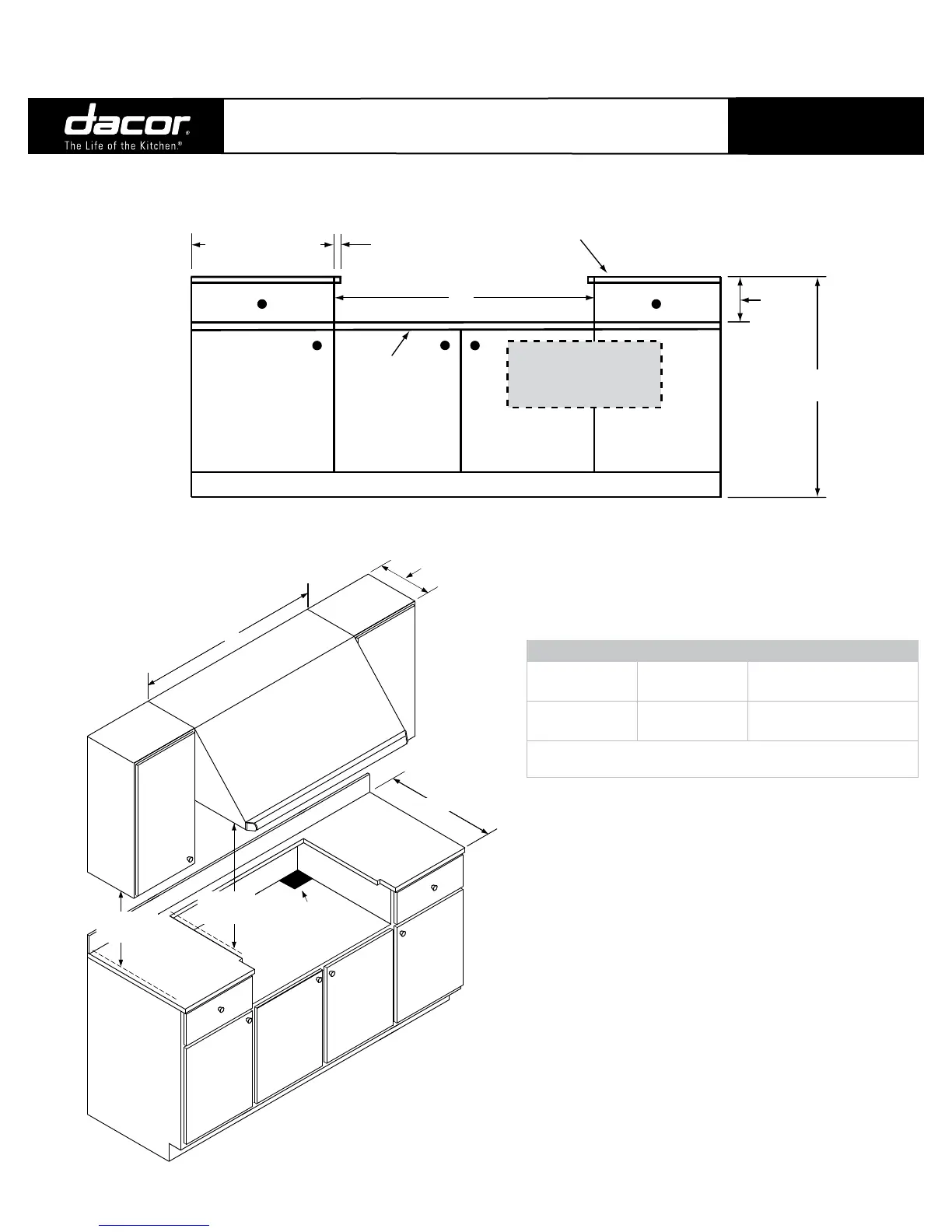

cABINEt/coUNtErtoP DImENSIoNS - FroNt VIEw
cABINEt/coUNtErtoP DImENSIoNS -
ISo VIEw
Continued. on following
page...
Cabinet and Countertop Layout (Continued)
30” and 36” Wide, Distinctive Series
Slide-in Gas Cooktops
DRT304S, DRT366S
Document # PG04-003 Revised 06/22/09 Page 2/3
NOTE: Models DRT304S and DRT366S are not
approved for installation with a raised vent.
