Installation
English32
Installation

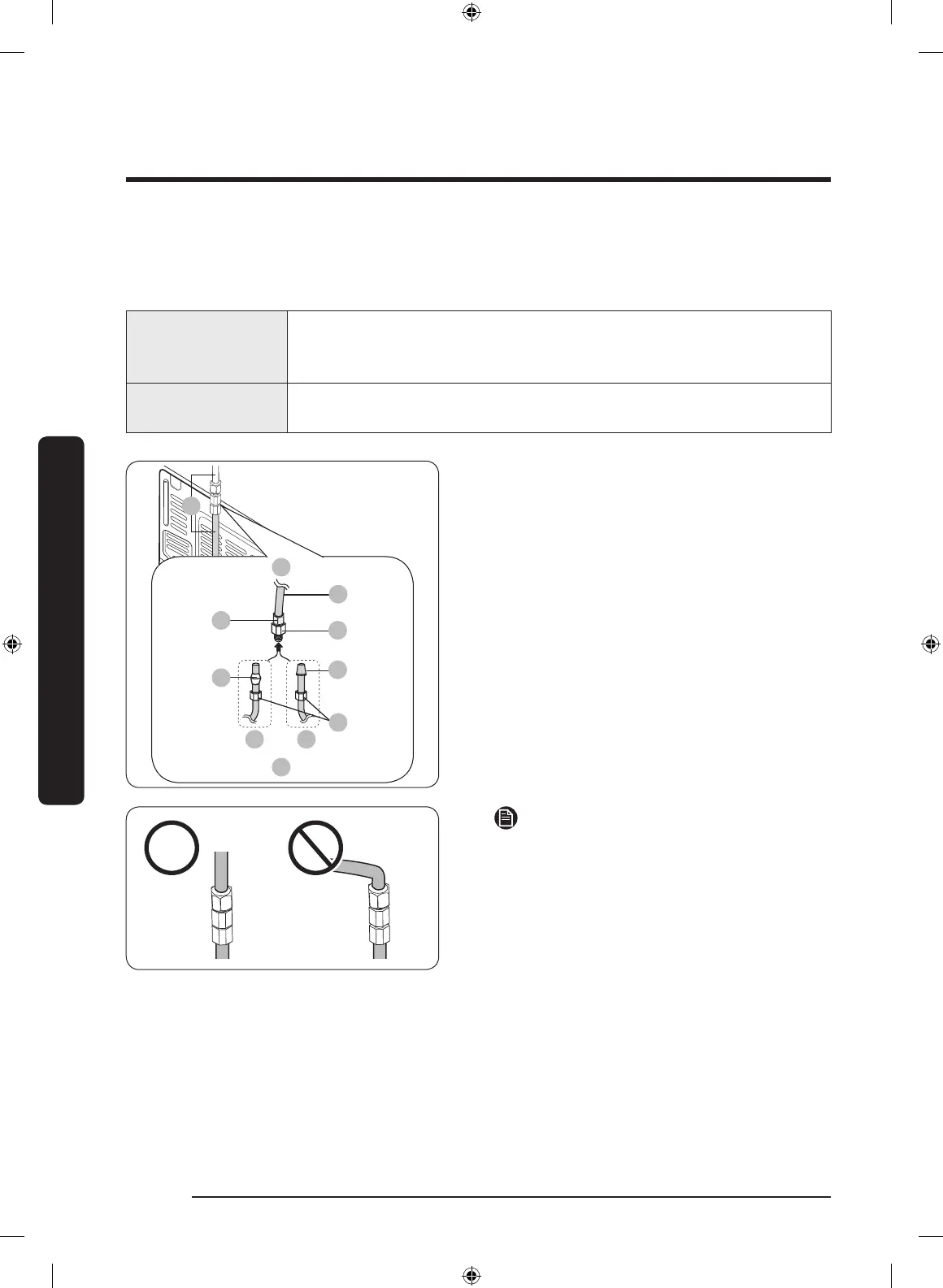

Connect the water supply line to the refrigerator
There are several items you must purchase to complete this connection. You may nd
these items sold as a kit at your local hardware store.
Copper Tubing
1
/4" copper tubing
1
/4" compression nut (1 pc)
Ferrule (2 pc)
Plastic Tubing
1
/4" plastic tubing Molded end (Bulb)
1
/4" compression nut (1 pc)
A
01
02
03 08
04
05
06
07
B
C
A. Refrigerator
B. Household water supply line
C. Water Line: must be kept straight.
01 Compression Nut (
1
/4") (Assembled)
02 Ferrule (Not supplied)
03 Copper tubing (Not supplied)
04 Plastic Tubing (Assembled)
05 Compression Fitting (Assembled)
06 Molded end (Bulb)
07 Compression nut (B) (
1
/4") (Not
supplied)
08 Plastic Tubing (A) (Not supplied)
NOTE
If you have to relocate the refrigerator
after connecting the water line (C), make
sure the joined section of the water line
must is straight.
1. Connect the household water line to the assembled compression tting.
- If you are using copper tubing, slip the compression nut (B) (not supplied) and
ferrule (not supplied) on the copper tubing (not supplied) as shown.
- If you are using plastic tubing (A), insert the molded end (Bulb) of the plastic tubing
(A) into the compression tting.
