PLANNING
GUIDE
www.Dacor.com Phone: (800) 793-0093
All specications subject to change without notice.
Install all appliances according to accompanying installation instructions.
CI.13
RGC/SGM Series Drop-In Gas Cooktop
with ERV/PRV Series Raised Vent
COMBINATION INSTALLATIONS
All tolerances: +1/16”, -0, (+1.6mm, -0) unless otherwise stated
4 1/4" (108 mm) Min.
from mounting surface to
combustibles below
cooktop chassis
E
C
D
7 1/2" (191 mm) Min.
to combustible
side wall above
countertop
(both sides)
Vertical
combustible
surface
Rear
wall
1 7/8" Min.
(48 mm)
E
C
D
H
H
G
F
7 1/2" (191 mm) Min.
to combustible
side wall above
countertop
(both sides)
Vertical
combustible
surface
Rear
wall
1 7/8" Min.
(48 mm)
4 1/4" (108 mm) Min. from
mounting surface to combustibles
below cooktop chassis

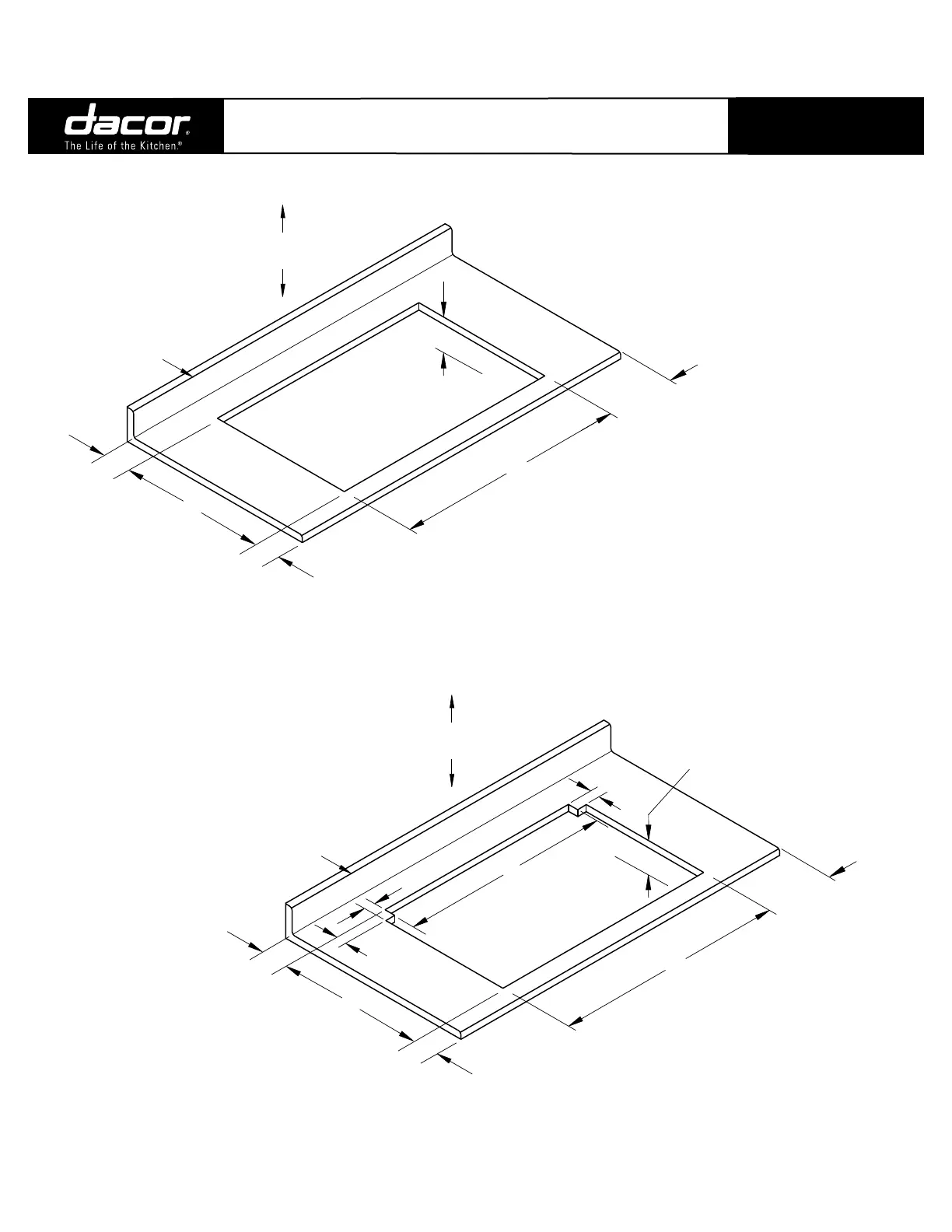

Figure 1 - Square Countertop Cutout Diagram
Figure 2 - Notched Countertop Cutout Diagram
(SGM466 only)
Document # PGCI-008 Revised 05/07/09 Page 2/2
