Dacor IF42 Series Planning Guide

PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
11.18
42” and 48” Wide
Built-In Refrigerators
EF42DBSS, EF42NBSS, EF48DBSS, EF48NBSS,
IF42DBOL, IF42NBOL, IF48DBOL, IF48NBOL
5/6
Custom side panels may be needed when not enough space is
available to have cabinets on both sides of the refrigerator or
when the refrigerator is placed at the end of a cabinet run. You
may choose an Inset or Recessed Inset panel installation for
models IF42 and IF48.

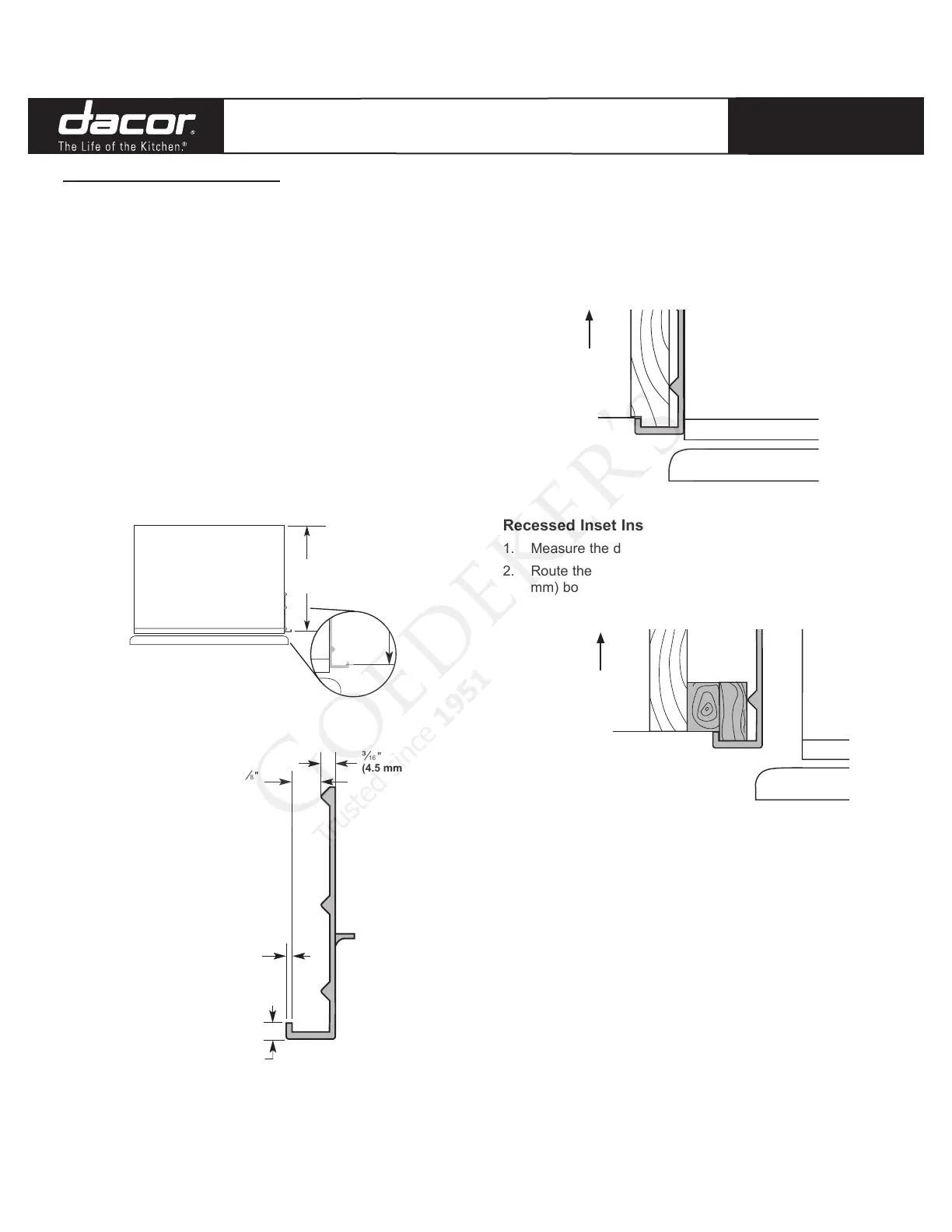

Refrigerator and Side Trim Dimensions
The width and height of a side panel are determined by the type
of installation you are planning.
NOTES:
The dimensions shown are actual product dimensions and ◊
may not reflect the needed installation dimensions.
The side panel should be a minimum of ½” (1.27 cm) thick to ◊
avoid warping.
If the opening depth is 25” (63.5 cm) or more, you may want ◊
to install a support board on rear wall.
Refrigerator
Side Trim
23
1
⁄2
"
(59.69 cm)
Overlay
³⁄16 "
(4.5 mm)
³⁄8 "
(9.7 mm)
¹⁄16 "
(1.5 mm)
¹⁄8 "
(3.2 mm)
A
Back wall
A
Back wall
cu s t O m si D e pa n e l s - iF42/iF48 Inset Installation Dimensions
Measure the distance from point A (as shown) to the back wall. 1.
Add¹⁄32” (0.8 mm) to this measurement to allow the side panel
to fit into the trim.
Ifthepanelismorethan³⁄2. 8” (9.5 mm) thick, rout the front edge
to allow the side panel to fit into the trim.
Recessed Inset Installation Dimensions
Measure the distance from point A (as shown) to back wall. 1.
Routethefrontedgeofthesupportboardorattacha³⁄2. 8” (9.5
mm) board to hold the panel in the cabinet side trim.
Revised
04/22/08
