PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
11.19
42” and 48” Wide
Built-In Refrigerators
EF42DBSS, EF42NBSS, EF48DBSS, EF48NBSS,
IF42DBOL, IF42NBOL, IF48DBOL, IF48NBOL
6/6
Revised
04/22/08
Custom side panels may be needed when not enough space is
available to have cabinets on both sides of the refrigerator or
when the refrigerator is placed at the end of a cabinet run. You
may choose an inset, flush or recessed inset panel installation for
models EF42 and EF48.

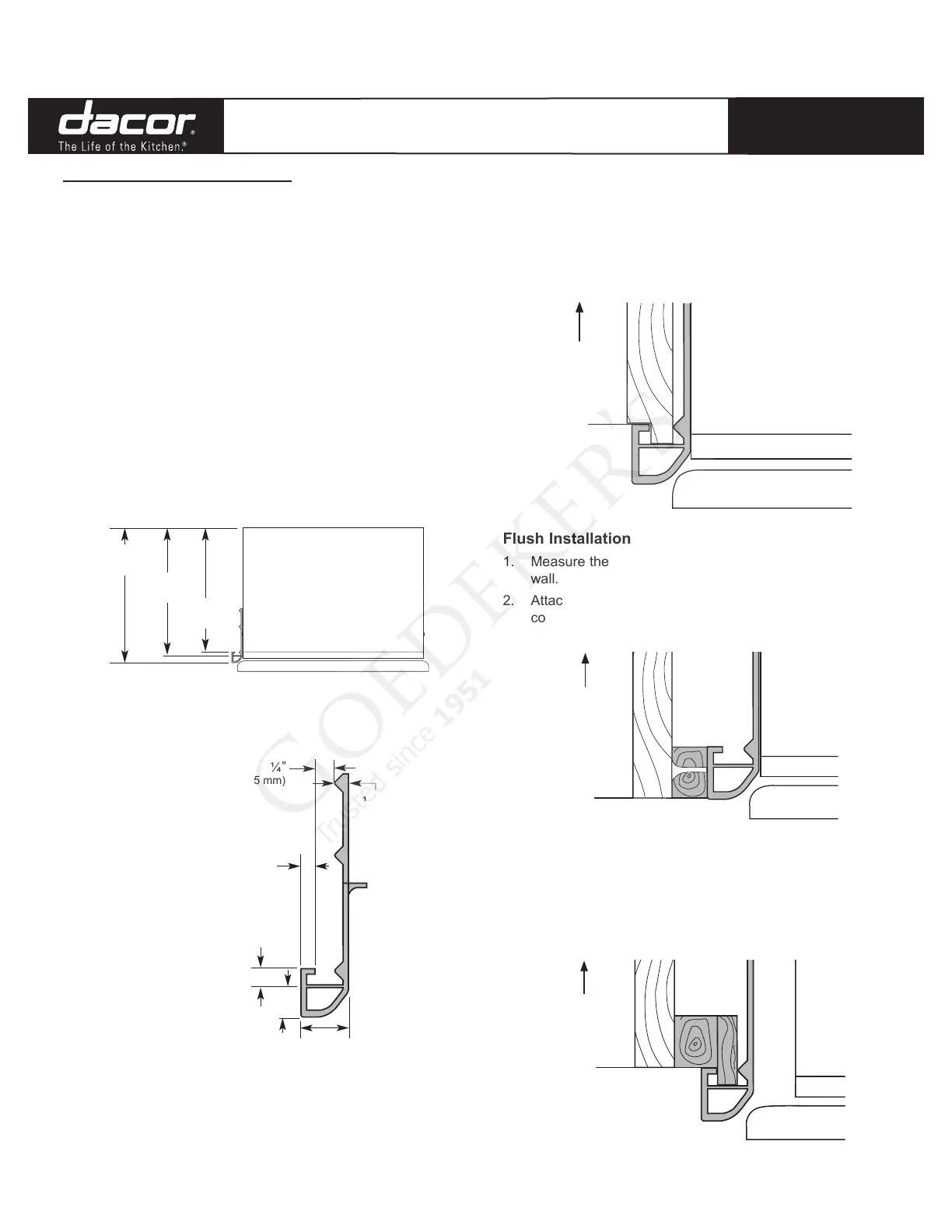

Refrigerator and Side Trim Dimensions
The width and height of a side panel are determined by the type
of installation you are planning.
NOTES:
The dimensions shown are actual product dimensions and ◊
may not reflect the needed installation dimensions.
The side panel should be a minimum of ½” (1.27 cm) thick to ◊
avoid warping.
If the opening depth is 25” (63.5 cm) or more, you may want ◊
to install a support board on the rear wall.
Refrigerator
Side Trim
24¹⁄8
"
(61.3 cm)
23
½
"
(59.7 cm)
23¹¹⁄16
"
(60.3 cm)
¹¹⁄64
"
(4.5 mm)
¼
"
(6.35 mm)
³⁄16
"
(4.7 mm)
7
⁄32
"
(5.5 mm)
¹³⁄32
" (10 mm)
5
⁄8 "
(15.7 mm)
Inset Installation Dimensions
Measure the distance from point A (as shown) to the back 1.
wall. Add
7
⁄32” (5.6 mm) to this measurement to allow the side
panel to fit into the trim.
If the panel is more than ¼” (6.35 mm) thick, route the front 2.
edge to allow the side panel to fit into the trim.
Flush Installation Dimensions
Measure the distance from point A (as shown) to the back 1.
wall.
Attach the support board with a screw or adhesive that is
2.
compatible with aluminum and wood.
Recessed Inset Installation Dimensions
Measure the distance from point A (as shown) to the back 1.
wall.
Route the front edge of the support board or attach a ¼”
2.
(6.35 mm) board to hold the panel in the cabinet side trim.
Back wall
Back wall
Back wall
cu s t O m si D e pa n e l s - eF42/eF48
