Dacor IVS1 - Product Specifications; General Specifications; Product Dimensions

3

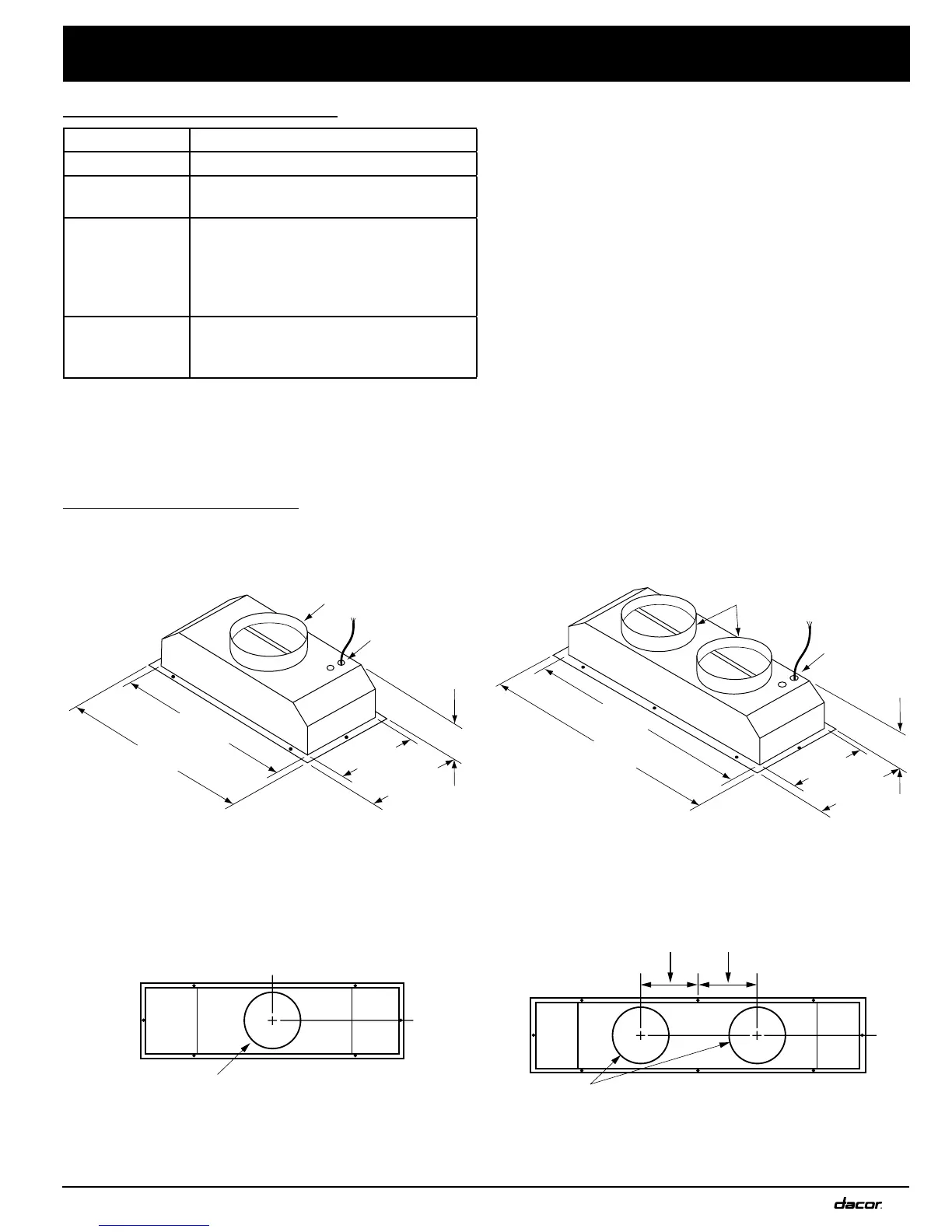

Product Dimensions
General Specifications
Filters Mesh type, dishwasher safe
Lights 120 Vac, 75 Watt, halogen
Total Circuit
Requirements*
120 Vac, 60 Hz., 15 Amp. Min.
grounded , dedicated circuit
Total Connected
Load*
IVS1: 0.2 kW (2 Amp.)
IVS2: 0.4 kW (3 Amp.)
IVSR1/IVSR2 0.2 kW (1.5 Amp.) plus
the power requirements of the in-line or
remote blower connected.
Blower Rating**
IVS1: 600 CFM, IVS2: 1200 CFM
IVSR1 and IVSR2: Dependant on
in-line or remote blower selected
* Electrical specifications provided for reference
only, consult product data label on the unit for exact
specifications.
** At zero inches static pressure
Product Specifications
All dimensional tolerances are + 1/16”, - 0” (+1.6 mm, -0) unless otherwise stated.
8" Exhaust
C
L
C
L
C
L
C
L
6 1/2"
(16.5 cm)
6 1/2"
(16.5 cm)
IVS1, IVSR1
Exhaust Placement
Top View
IVS2, IVSR2
Exhaust Placement
Top View
8" Exhaust
C
L
C
L
The Dacor Integrated Ventilation System (IVS) is designed
for installation inside custom hood canopies. Proper
installation of the IVS requires proper selection of the
custom canopy materials and proper construction. Carefully
and closely follow all instructions and warnings concerning
the installation of the IVS within a combustible or non-
combustible hood canopy. Make sure that all construction
meets applicable local codes and regulations.
21 1/4"
(54.0 cm)
22 1/2"
(57.2 cm)
6” (15.2 cm)
11 1/16"
(28.1 cm)
12 1/4"
(31.1 cm)
Electrical
access
holes
8" (20,3 cm) round exhaust
with back draft damper
33 1/4"
(84.5 cm)
34 1/2"
(87.6 cm)
6” (15.2 cm)
11 1/16"
(28.1 cm)
12 1/4"
(31.1 cm)
8" (20,3 cm) round exhausts
with back draft damper
Electrical
access
holes
IVS2, IVSR2
Overall Dimensions
IVS1, IVSR1
Overall Dimensions
