Planning the Installation
Location Planning - Cart Installations

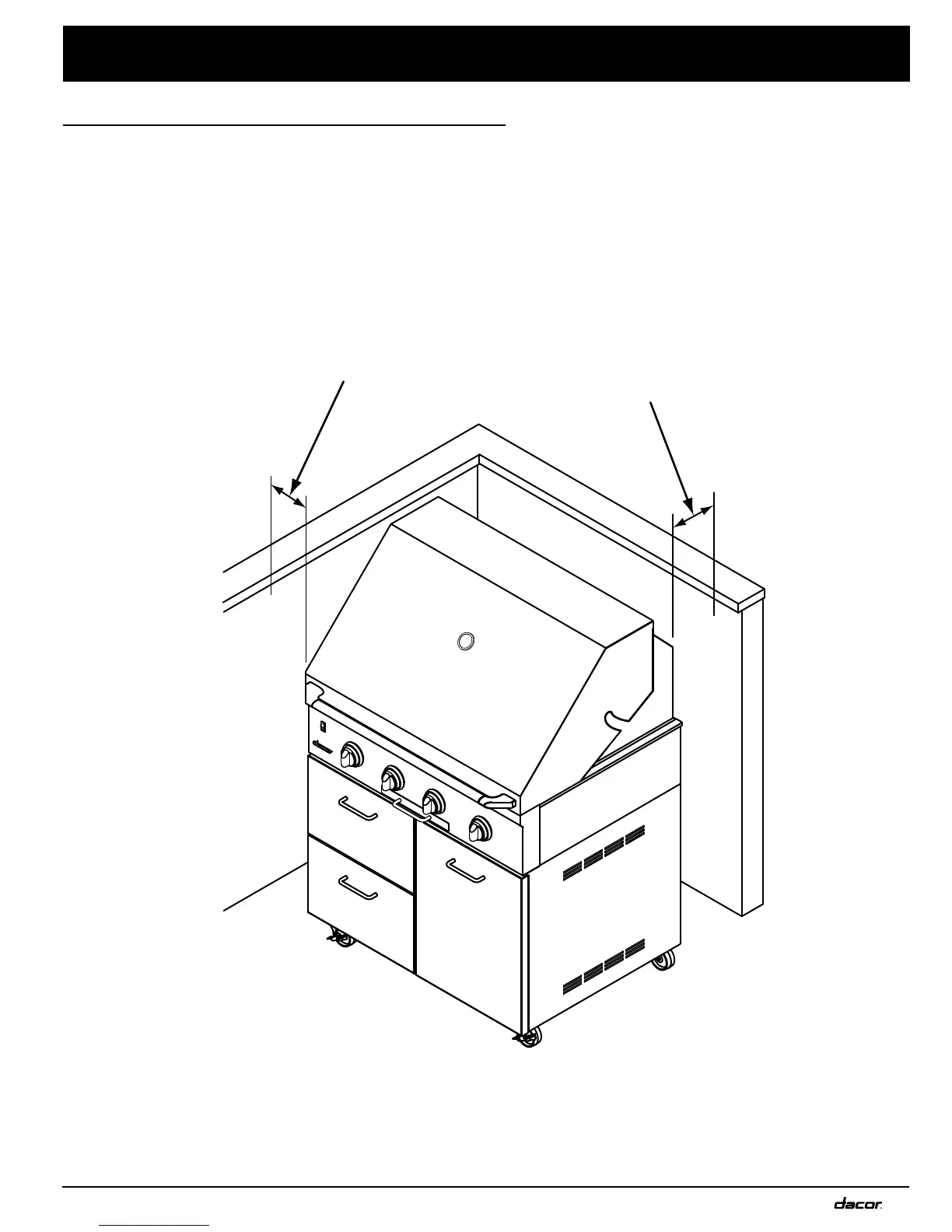

Example of Grill Cart Location
Maintain all minimum clearances shown between the •
appliance and all surfaces behind and to the side of the
appliance.
Allow 26 inches minimum in front to open and close the •
cabinet drawers.
For proper grill and drawer operation, use the outdoor •
grill and cart only on a level surface.
Side distances exclude optional shelves.•
Above the cooking surface, both sides:
1 1/4” (32mm) Min. to non-combustibles
10” (254mm) Min. to combustibles
Above cooking surface, behind unit:
2 1/2” (64mm) Min. to non-combustibles
11 1/4" (286mm) Min. to combustibles
(with hood in closed position)
Above the cooking surface, both sides:
1 1/4” (32mm) Min. to non-combustibles
10” (254mm) Min. to combustibles
Above the cooking surface, behind unit:
2 1/2” (64mm) Min. to non-combustibles
11 1/4” (286mm) Min. to combustibles
(with hood in closed position)
