7
4 1/4" (108 mm) Min.
from mounting surface to
combustibles below
cooktop chassis
E
C
D
7 1/2" (191 mm) Min.
to combustible
side wall above
countertop
(both sides)
Vertical
combustible
surface
Rear
wall
1 7/8" Min.
(48 mm)
E
C
D
H
H
G
F
7 1/2" (191 mm) Min.
to combustible
side wall above
countertop
(both sides)
Vertical
combustible
surface
Rear
wall
1 7/8" Min.
(48 mm)
4 1/4" (108 mm) Min. from
mounting surface to combustibles
below cooktop chassis
Installation Specifications

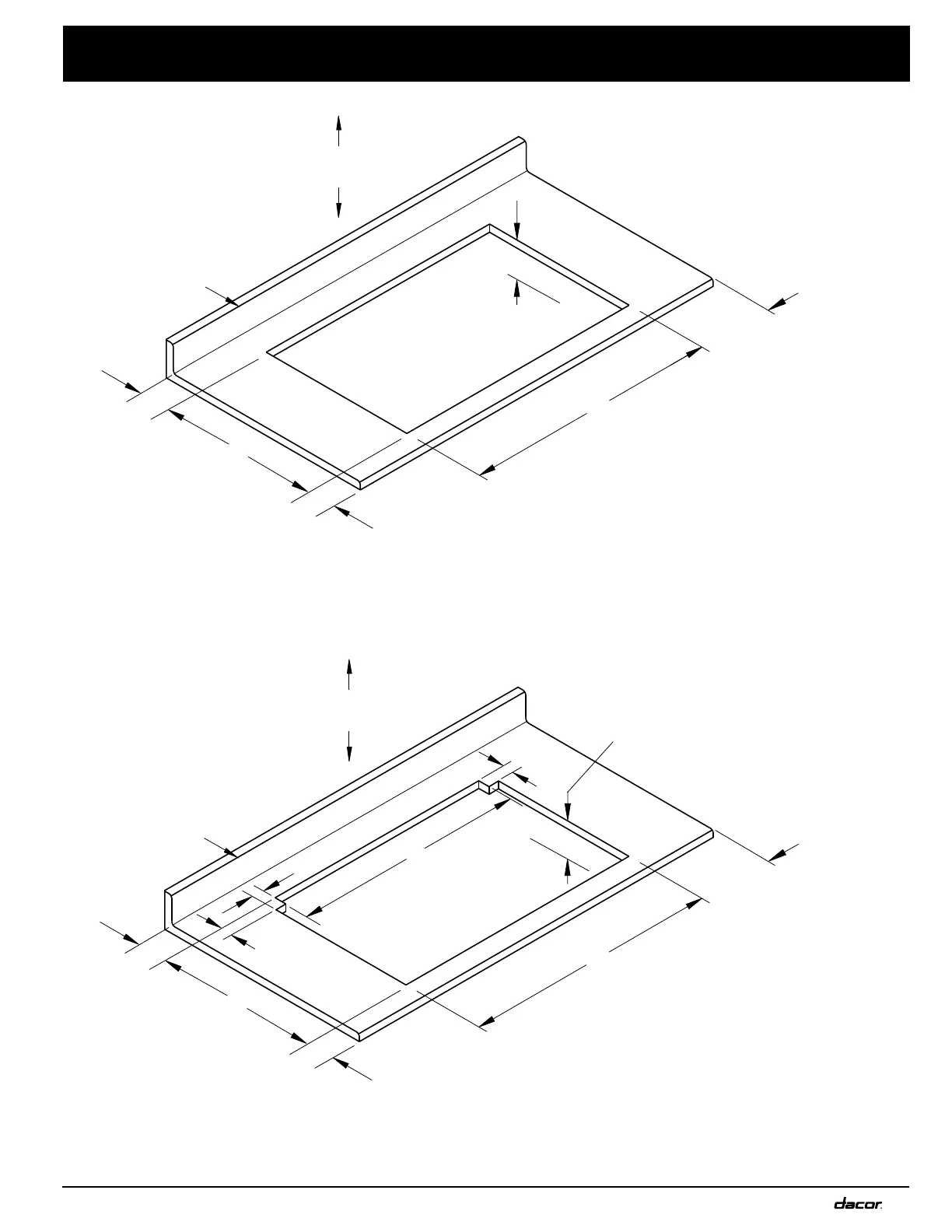

Figure 1 - Square Countertop Cutout Diagram
Figure 2 - Notched Countertop Cutout Diagram
