6
-
15
3-POINT HITCH IMPLEMENT OPERATION

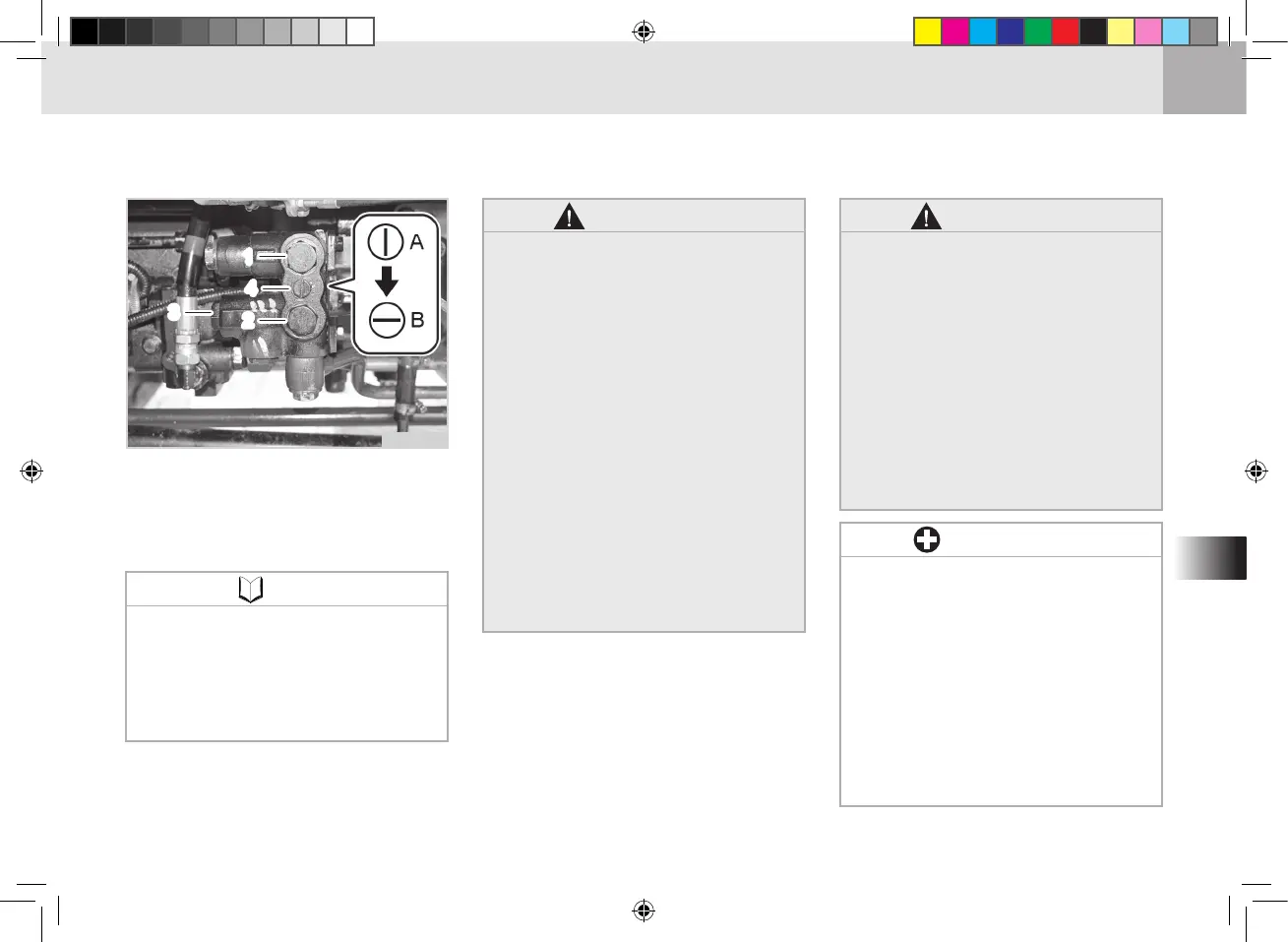

HYDRAULIC BLOCK
(1) In (From Implement`s Control Valve)
(2) Out (To Implement`s Control Valve)
(3) Return (From Implement’s Control Vlave)
(4) Flow Plug
(A) OFF (B) ON
22
111
3
4
3
4
Td2O632C
WARNING
•
Never let anyone get in the
loader and use the loader as a
workbench. Otherwise, it may
lead to injury or even death.
•
Do not stand under the lifted
loader or get close to it. Also,
lower the loader arm onto the
ground before leaving the
tractor. Otherwise, it may lead
to injury or even death.
•
Never carry a big object with
the loader unless a proper
implement is attached. Keep a
carried object low during driv-
ing. Otherwise, it may lead to
injury or even death.
NOTE
•
The hoses and couplers for instal-
lation are supplied with the loader.
•
For detail about implement instal-
lation method, refer to KIOTI front
loader owner’s manual.
IMPORTANT
•
ROPS (Roll Over Protective
Structure), sun canopy or
cabin are not a FOPS (Falling
Object Protective Structure).
It never can protect the riders
against falling objects. Avoid
driving the vehicle into a dan-
gerous area such as falling
rocks zone. Otherwise, it may
lead to a serious injury.
WARNING
•
When attaching or detaching
the loader, fix all parts which
are connected to the buck-
et and boom. The bucket or
boom can be accidentally
dropped down, leading to inju-
ry or even death.
•
Do not allow loader arms or at-
tachment to contact electrical
power lines. Electrocution will
cause serious injury or death.
