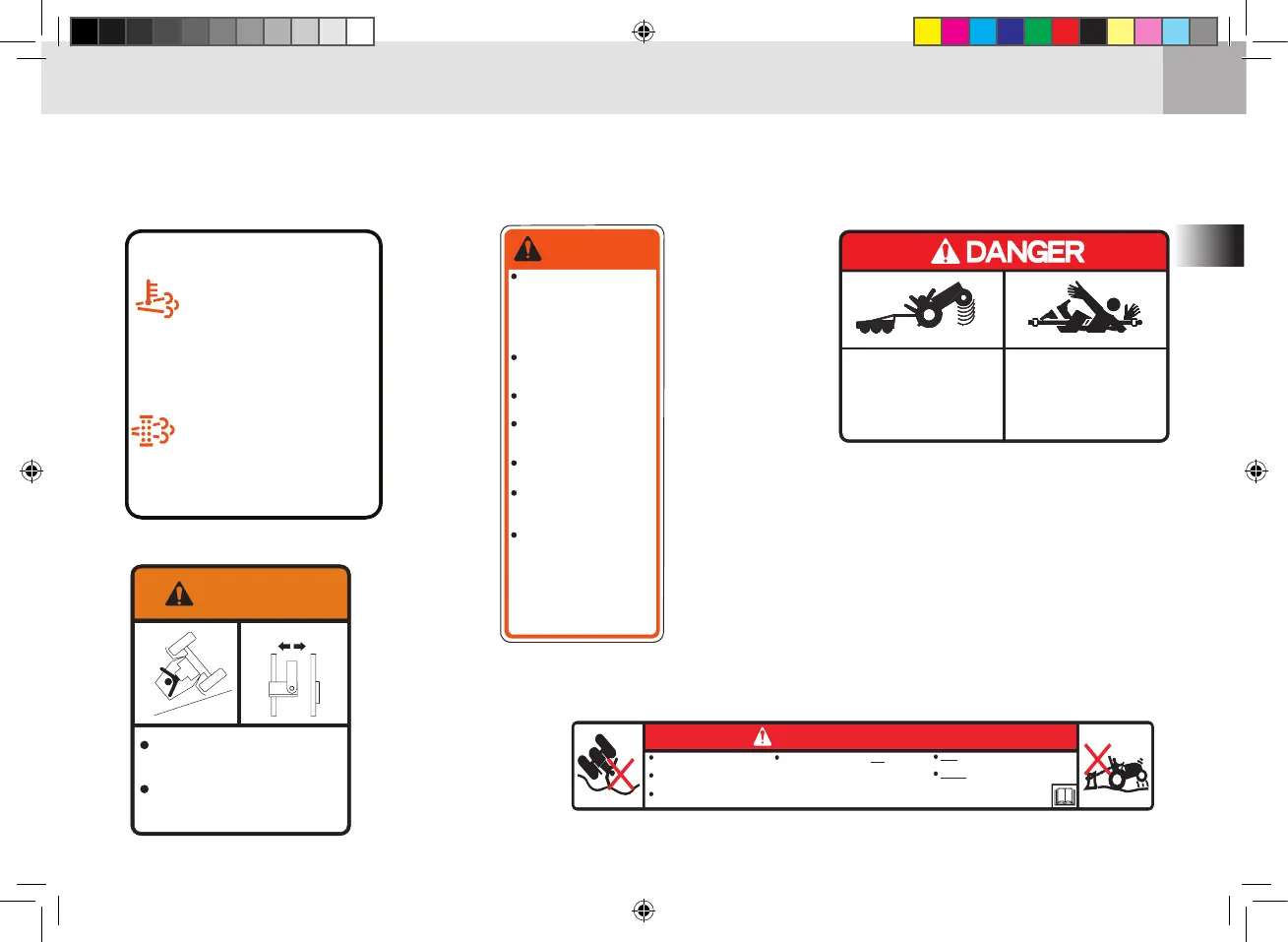

(7) Part No. : F6800-29112 (9) Part No. : T2555-52141 (10) Part No. : T2555-52262
(11) Part No. : T2555-52353
(8) Part No. : T4938-52351
T4938-52351
WARNING
Disconnect Connect
Brake Lock
Always lock the left and right brake pedals
together before driving on the road.
Activating only one brake at higher speeds
could cause loss of control.
Pull only from approved drawbar
or lower links of 3-point linkage
at horizontal position or below.
Rotating driveline contact may
cause serious injury or death.
Keep all driveline, tractor and
equipment shield in place
during operation.
ժՈՋՋՋՃՋՈՈՌՈԶ
This tractor is equipped with a DPF(Diesel Particulate Filter).
Use the CJ-4 grade Engine oil. Otherwise, cause DPF failure.
1. Park to Safety Area and Clear Around Exhaust
Pipe.
2. Operating Condition
1) Depress brake pedal and lock it.
2) Put gearshift lever in neutral position.
3) Hand/Foot Accel. Pedal “Idle Min”.
4) Warm up the engine for 1~2 minutes.
5) Do not depress clutch pedal.
6) Press switch over 2 Seconds.
3. Then RPM automatically increase and decrease
until Regen is completed.
4. Normally, it will take 30~40 minutes.
Regeneration
Underway Lamp
1. When DPF starts to regenerate, you can see it.
2. When on regeneration, Do not touch the part
of DPF because it is very hot.
3. Keep Flammables materials and people away
from exhaust pipe.
4. Please keep higher 1700rpm to finish regen
fully until underway lamp is off.
When you see
this warning
Lamp
WARNING
Before starting and operating
Start engine only from operators seat with
transmission in neutral, PTO disengaged
and hydraulic controls in lowered position.
Slow down on turns, rough ground and
slopes to avoid upset.
Do not permit anyone but the operator
to ride on the tractor, There is no safe
place for riders.
Lock brakes together, use warning lights
and SMV emblem while driving on roads.
Lower equipment, place gear shift levers
in neutral, stop engine and apply parking
brake before leaving tractor seat.
Avoid accidental contact with rear shift
lever while engine is running. Unexpected
tractor movement can result.
FAILURE TO FOLLOW ANY OF THE
INSTRUCTIONS ABOVE CAN CAUSE
SEROUS INJURY TO THE OPERATOR OR
OTHER PERSONS.
( Replacement manuals are available from your local dealer )
T2555-52141
0#
Know the operating and safety instructions
0#
Clear the area of bystanders.
0#
Locate and know operation of controls.
0#
Fasten your seat belt.
in the operators manual and on the tractor.
DA N G ER
Improper operating of tractor can rollover
or upset
DO NOT operate vehicle without raised
ROPS and locking pins in position.
DO NOT attach ropes or chains to ROPS
for pulling.
Lower the ROPS for low clearance ONLY.
- NO protection is provided in lowered position.
RAISE ROPS and insert locking pin immediately
after low clearance use, or for transport
ALWAYS wear seat belt with ROPS in
raised position.
Failure to comply will result
death or serious injury
- Seat belt is not recommended with ROPS lowered
- DO NOT fold ROPS with a canopy attached.
T2555-52353
