Daedong NS4710 - Instrument Panel

NS4710 / NS6010 / NS4710H / NS5310H / NS6010H
4
-
14

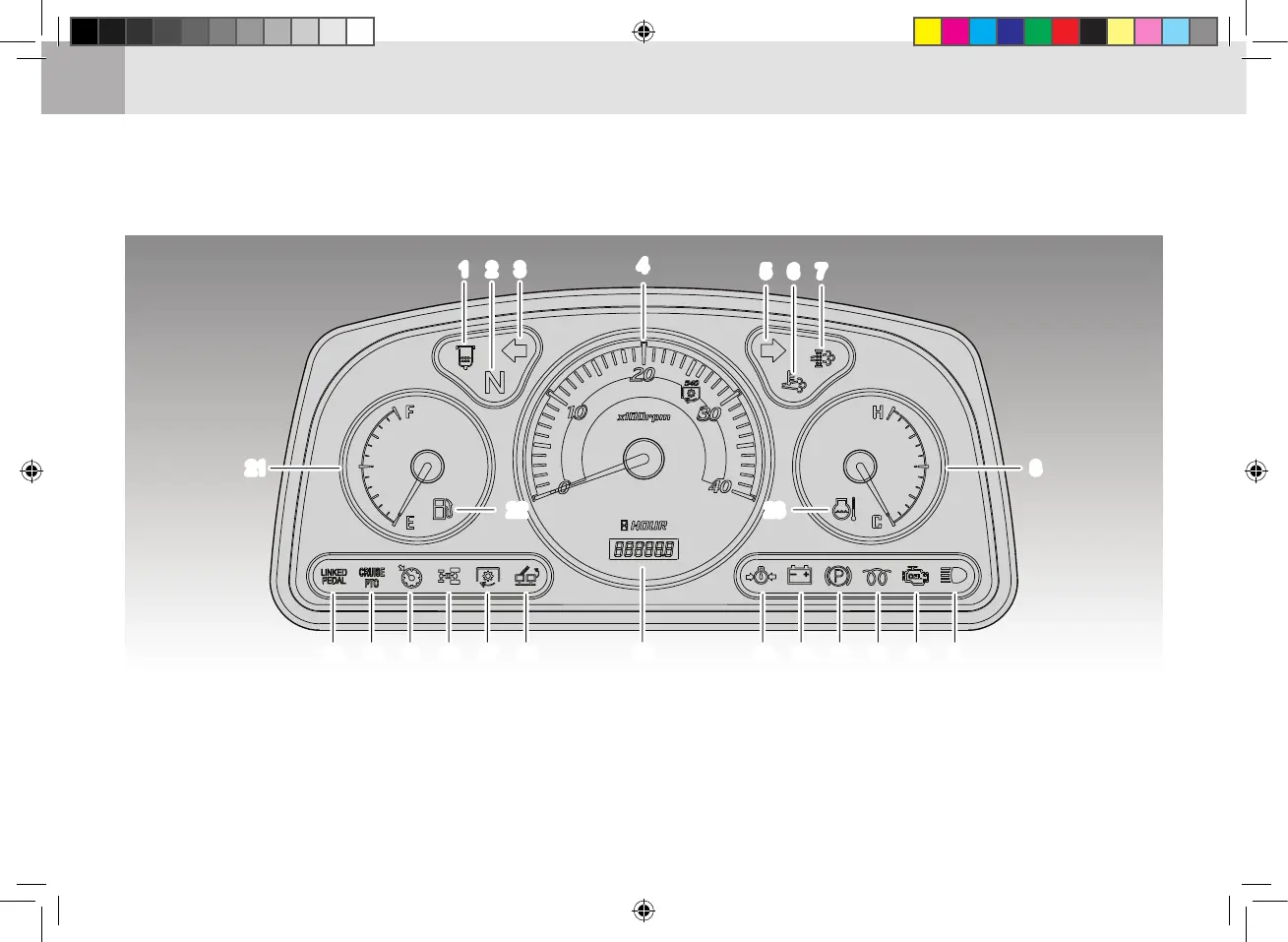

INSTRUMENT PANEL
VIEW
Symbols on the instrument panel come on when the key switch is turned to the "ON" position.
(1) Water Sensor Warning Lamp
(2) Neutral Indicator
(3) Turn Signal Light (LH)
(4) Tachometer
(5) Turn Signal Light (RH)
(6) DPF Regeneration Underway Lamp
(7) DPF Regeneration Warning Lamp
(8) Coolant Temperature Gauge
(9) High Beam Indicator
(10) Engine Check Warning Lamp
(11) Glow Plug Indicator
(12) Parking Brake Indicator
(13) Battery Charge Warning Lamp
(14) Engine Oil Pressure Warning Lamp
(15) Hour Meter
(16) Brake (One Side) Lamp
(17) P.T.O Indicator
(18) 4WD Engaged Indicator
(19) Cruise Indicator
(20) Linked Pedal Indicator
(21) Fuel Gauge
(22) Low Fuel Level Warning Lamp
(23) Engine Overheat Warning Lamp
