Fitting a new plug
If for any reason you need to fit a new plug, the flexible mains lead must be
connected as shown below. The wires in the mains lead fitted to this
appliance are coloured in accordance with the following code:
Brown wire = Live (L)
Blue wire = Neutral (N)
Green & Yellow = Earth (E)
The Blue wire must be connected to the terminal marked N or coloured
Black.
The Brown wire must be connected to the terminal marked L or coloured
Red.
The Green and Yellow wire must be connected to the terminal marked E
or coloured Green.
Check that there are no cut or stray strands of wire inside the plug.
Use a 3 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
If you are in any way unsure which plug or fuse to use, always refer to a
qualified electrician.
After replacing or changing a fuse on a moulded plug, the cover must be
refitted to the plug; the appliance must not be used without a fuse cover.
WARNING: Do not wrap the cord around the Air Fryer for storage.

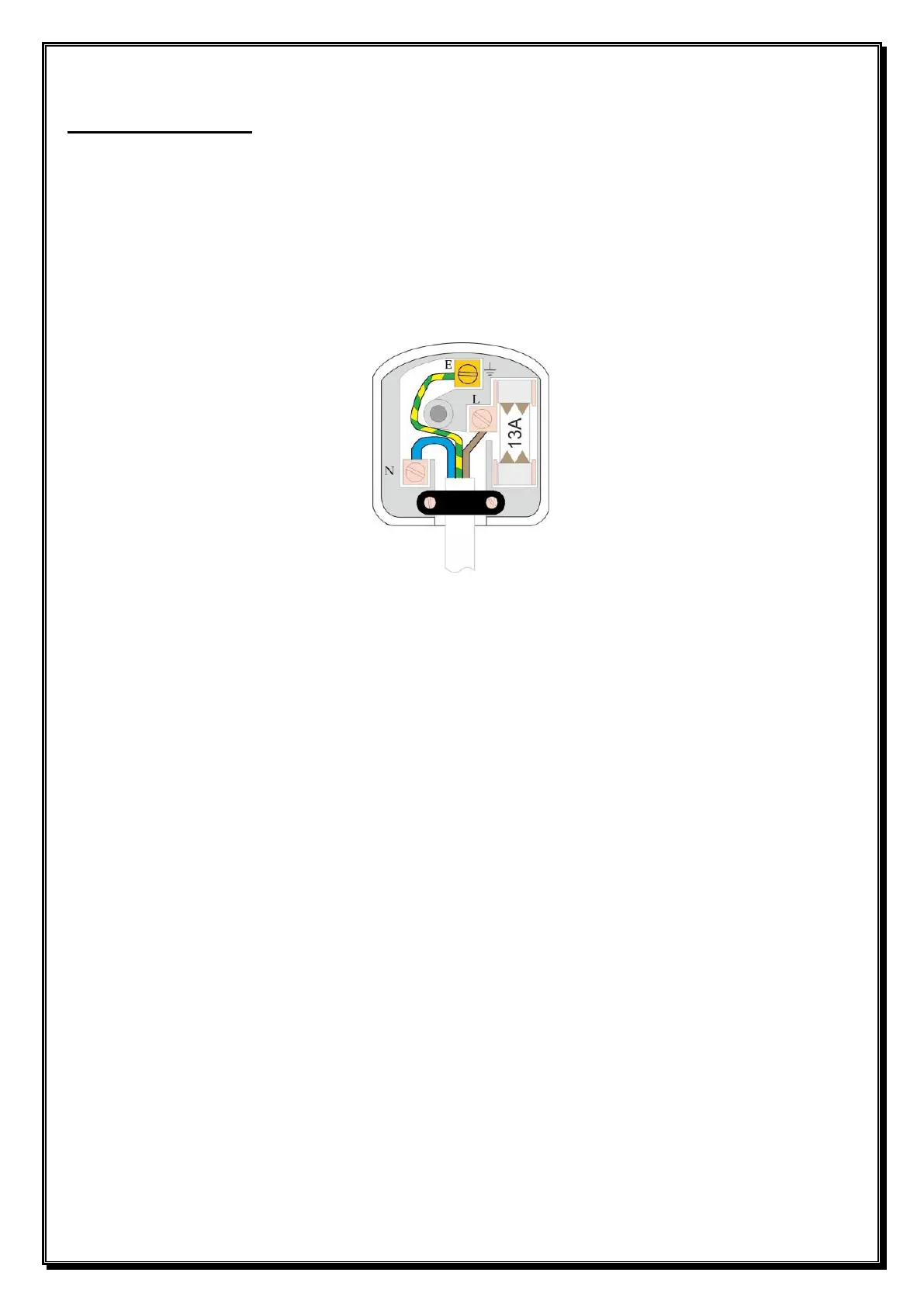

Connect Green
& Yellow to
Earth (E)
Connect
Brown to
Live (L)
Connect
Blue to
Neutral (N)
Ensure the outer sheath of the
mains lead is securely held by the
cable clamp
