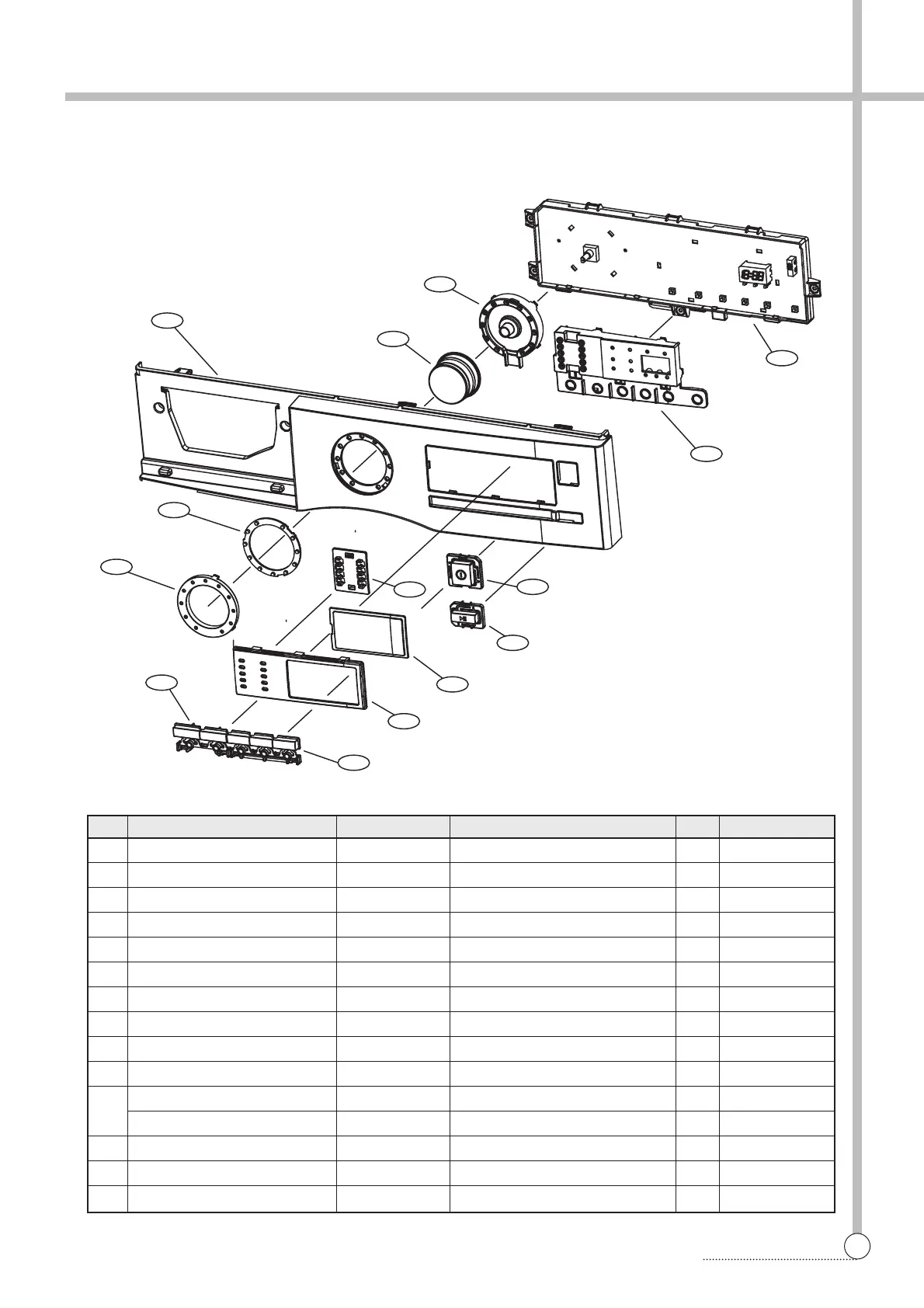

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS [DWD-HC101* / HC121* SERIES]
P01
P02
P03
P05
P06
P07
P08
P09
P10
P04
P11
P12
P13
P14
P01 PANEL F 36142T4D00 ABS, D-H'S 1ST 1
P02 DECO WINDOW 36116DWM00 ABS, D-H'S 1ST 1
P03 DECO COURSE 36116DWN00 ABS, D-H'S 1ST 1
P04 BUTTON OPTION 3616650000 ABS, D-H'S 1ST 1
P05 BUTTON FUNCTION 3616650100 ABS, D-H'S 1ST 1
P06 WINDOW COURSE 3615512800 ABS, D-H'S 1ST 1
P07 WINDOW DISPLAY 3615512700 ABS(TR558), D-H'S 1ST 1
P08 WINDOW FUNCTION 3615512600 ABS(TR558), D-H'S 1ST 1
P09 BUTTON START 3616650200 ABS, D-H'S 1ST 1
P10 BUTTON POWER 3616650300 ABS, D-H'S 1ST 1
P11 KNOB DIAL 3613409700 ABS, D-H'S 1ST 1
DECO KNOB DIAL 36116DWP00 ABS, D-H'S 1ST 1
P12 HOLDER COURSE 3613065800 HIPS, D-H'S 1ST 1
P13 HOLDER FUNCTION 3613065700 HIPS, D-H'S 1ST 1
P14 PCB AS PRPSSWM010 D-HT1011 / HD1411 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
