Methods of exchanging main parts

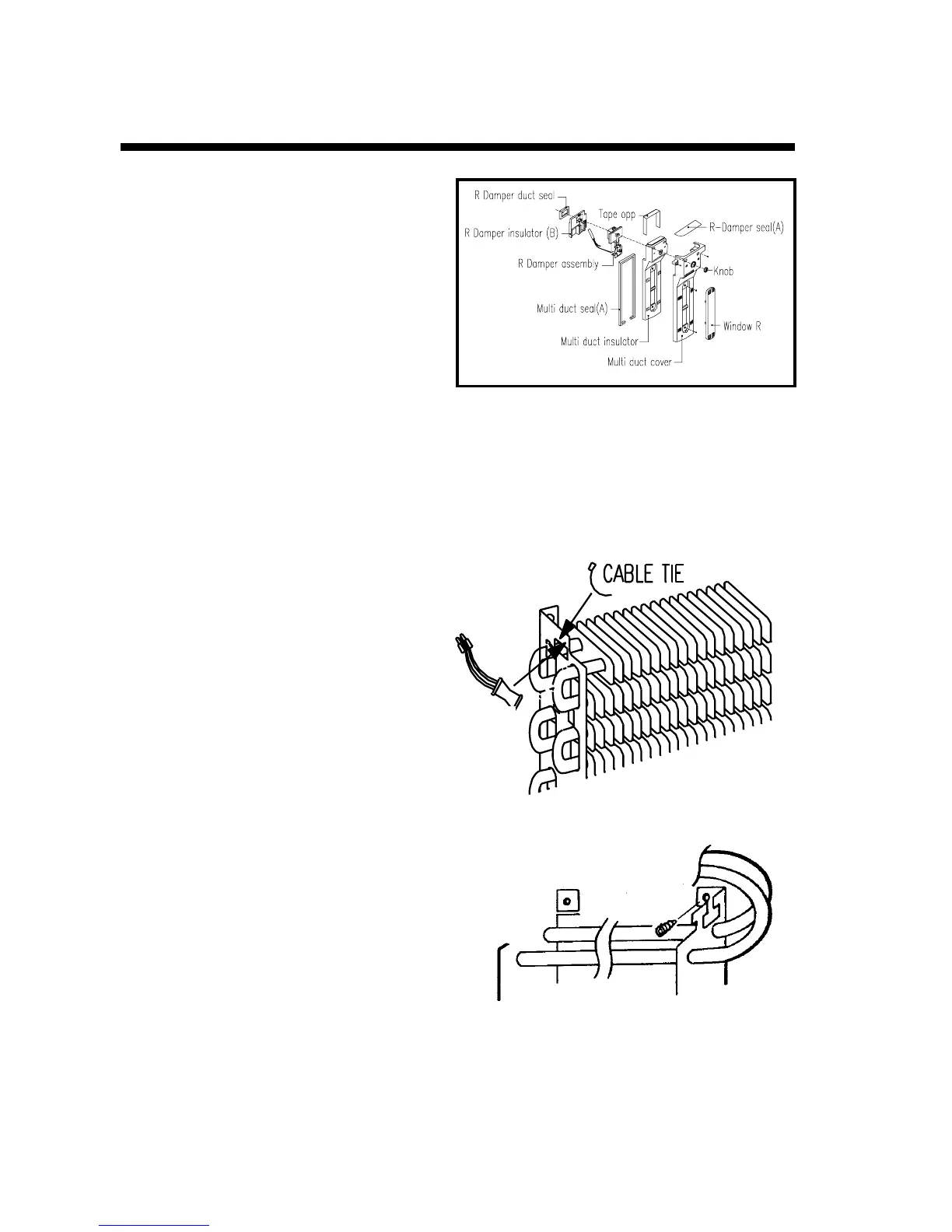

4) The specific part of the multi duct is
shown below.
--- Check after repair ---
1. Put all the parts into the right places
and attach the seal and tape to their
original positions.
2. Check if the damper knob operates properly.
3. Be careful not to block the cool air duct when assembling.
4. Make sure the parts to adhere to the interior surface when screwing.
* Be careful not to damage the R-Window during assembly.
(3) Bimetal
1) Cut off the wire bind.
2) Take out the bimetal.
(4) Glass tube heater
1) Remove 2 screws that fasten the
evaporator.
-6-
Evaporator fastening screw
BIMETAL
To Next Page
