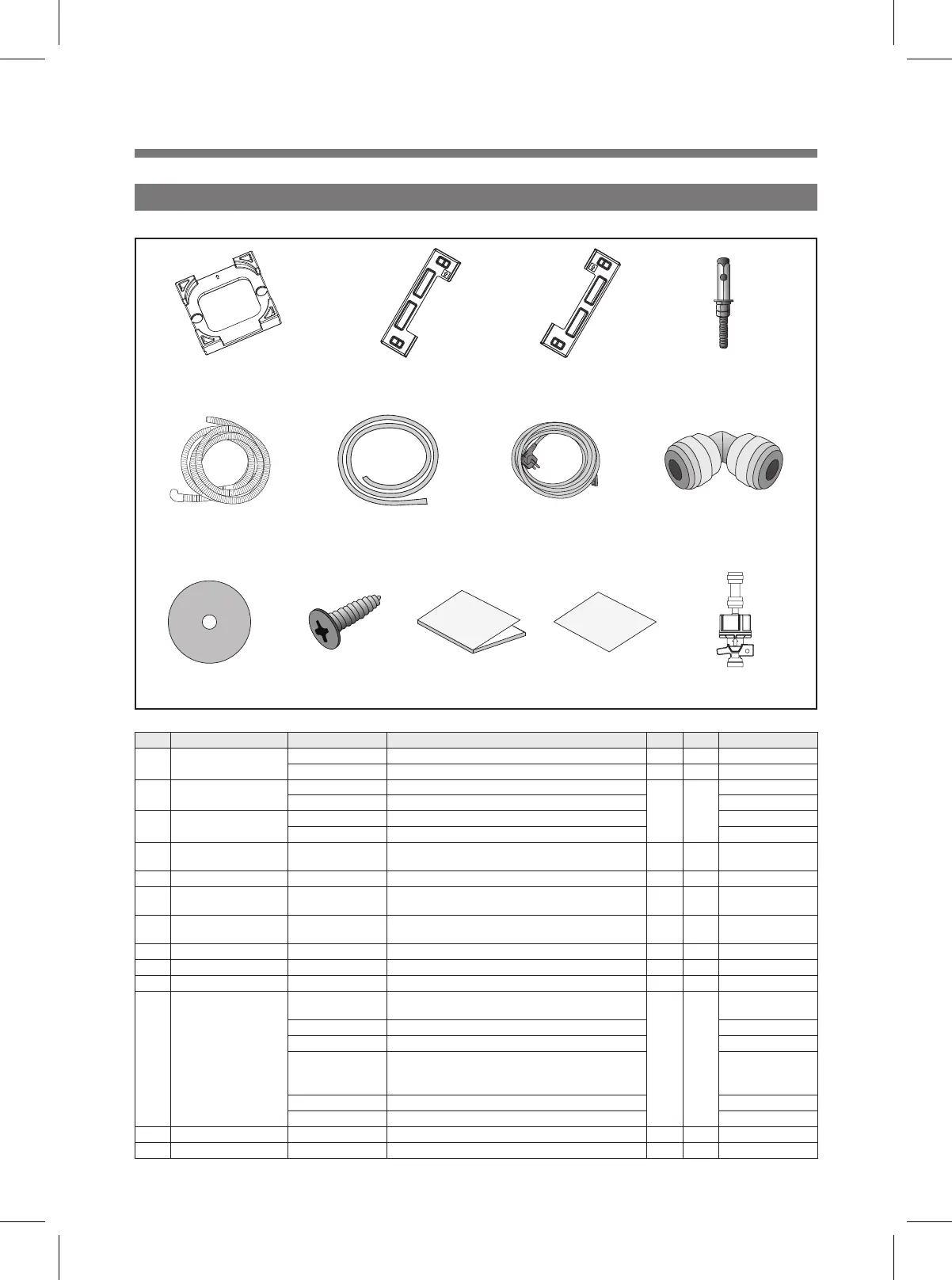

8. PACKING AS
G01 G02 G03 G04
G9 G10 G11 G12 G13
G05 G06 G07 G08
NO. PART NAME PART CODE DESCRIPTION Q'TY SVC REMARK
G01
CUSHION BOTTOM
AS
36114-0030300-00 MINI-II COMBO 1 Y
36114-0030200-00 MINI-II WASHER 1 Y
G02
CUSHION
SHOULDER_LEFT
36114-0029500-00 EPS, ER:55, 234X694X355, MINI-II COMBO
1 Y
36114-0029400-00 EPS ER:55 648X179X234 MINI-II WASHER
G03
CUSHION
SHOULDER_RIGHT
36114-0029500-00 EPS, ER:55, 234X694X355, MINI-II COMBO
36114-0029400-00 EPS ER:55 648X179X234 MINI-II WASHER
G04 SPECIAL BOLT AS 3616067100
ANCHOR BOLT AS 3/8"(M10),SAE 1008B,L=6"/
BASIC, P/W 2T 30MM
4 Y
G05 HOSE DRAIN *O AS 36131-0009404-00 D-M300. PE-LD, L=2.5M, CLAMP, ID=14,OD=18 1 Y
G06 HOSE INLET AS 3613270995
HOSE INLET AS D-M300. DFE04 LLDPE
ID=4,OD=6, L=5000
1 Y
G07 CORD POWER AS 66112-0000808-00
LSG-31L, CHINA, 250V,10A,FUSE(15A), EARTH@
CORE, 2.5M, WH
1 Y -
G08 ELBOW UNION 3612512800 ELBOW UNION D-M300, AEU0404W 1/4' DMT 3 Y
G09 CUSHION PAD 3611535360 CUSHION PAD D-M300, EPDM 3T ID=10, OD=70 4 Y
G10 SCREW TAPPING 7115401629 SCREW TAPPING T1 FLT 4X16 SUS 4 Y
G11 MANUAL OWNERS
36136-0009700-00 WFCM211D1NN01BCCW, CHINA, MINI-II
1 Y
ODW-MGDM2C,
ODW30-M2CV
36136-0009701-00 CHINA (OFF-LINE), MINI 2 COMBO DWM30-M2CW
36136-0009702-00 MINI 2 IOT, COMBO, CCC ODW30-MGDM2CI
36136-0009600-00 WFWM211C0NN01BCCW, MINI-II
ODW30-M2WW,
ODW30-M2WS,
ODW30-M2WG
36136-0009601-00 CHINA (OFF-LINE), MINI 2 WASHER DWM30-M2WV
36136-0009602-00 MINI 2, IOT, WASHER, CCC ODW30-M2WSI
G12 MANUAL GUIDE 36136-0000104-00 CHINA, 120 Vellum paper, MINI 1 Y
G13 VALVE CHECK UP 66150-0003401-00 CHECK VALVE + FILTER, 1/4", POM, MINI 1 Y
