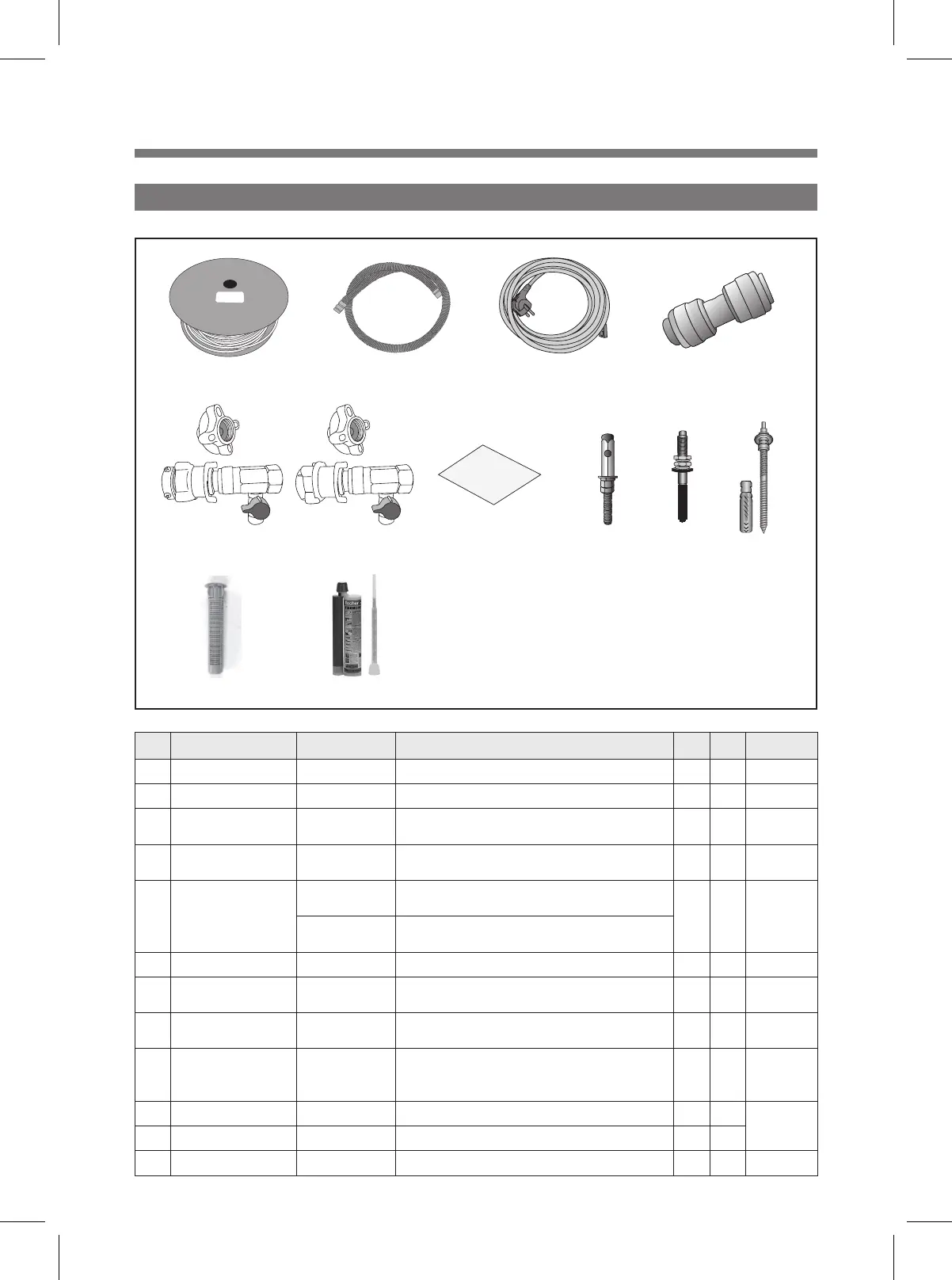

9. Further parts for install
H01 H02 H03 H04
H07 H08 H09
<HOOK TYPE> <SCREW TYPE>
H05
H10 H11
H06
User Manual
Install Guide
INSTALL CARD
User Manual
Install Guide
INSTALL CARD
No. PART NAME PART CODE DESCRIPTION Q’TY SVC REMARK
H01 HOSE INLET 3613270980 DFE04 LLDPE ID=4,OD=6 1 Y 300M/1Roll
H02 HOSE DRAIN *O 3613275839 SVC,D-M300. PE-LD, ID=14,OD=18,L=1M 1 Y
H03 POWER CORD AS 66112-0000808-00
LSG-31L, CHINA, 250V,10A,FUSE(15A),
EARTH@CORE, 2.5M, WH
1 Y
H04 CONNECTOR 3612512810
UNION CONNECTOR D-M300, AUC0404W 1/4'
DMT
1 Y
H05 HOSE INLET AS
3613278000
ADAPTER INLET VALVE AS D-M300, HOOK
TYPE
1 Y
3613279000
ADAPTER INLET VALVE AS D-M300, SCREW
TYPE
H06 MANUAL GUIDE 36136-0000104-00 CHINA, 120 Vellum paper, MINI 1 Y
H07 SPECIAL BOLT AS 3616067100
ANCHOR BOLT AS 3/8"(M10),SAE 1008B,L=6"/
BASIC, P/W 2T 30MM
4 Y
H08 SPECIAL BOLT AS 361A2-0000100-00
3/8"(M10),SUS,L=8"/OPTION, P/W 2T
30MM,LOCK NUT
4 Y
H09
ANCHOR BOLT AS
& ANCHOR
PLASTIC
36198-0012100-00
3/8"(M10),SUS,L=8"/OPTION, P/W 2T
30MM,LOCK NUT UX 14 X75 / FISCHER/ MINI
DRUM
4 Y
H10 ANCHOR NET 361A2-0000300-00 FIS H16 X 85K MINI DRUM 4 Y
Used with
H08
H11 CHEMICAL 36160-0000100-00 FIS VS 360S 1 Y
H12 LOCK CLIP 36181-0001400-00 POM 1/4" BLUE MINI 1 Y
