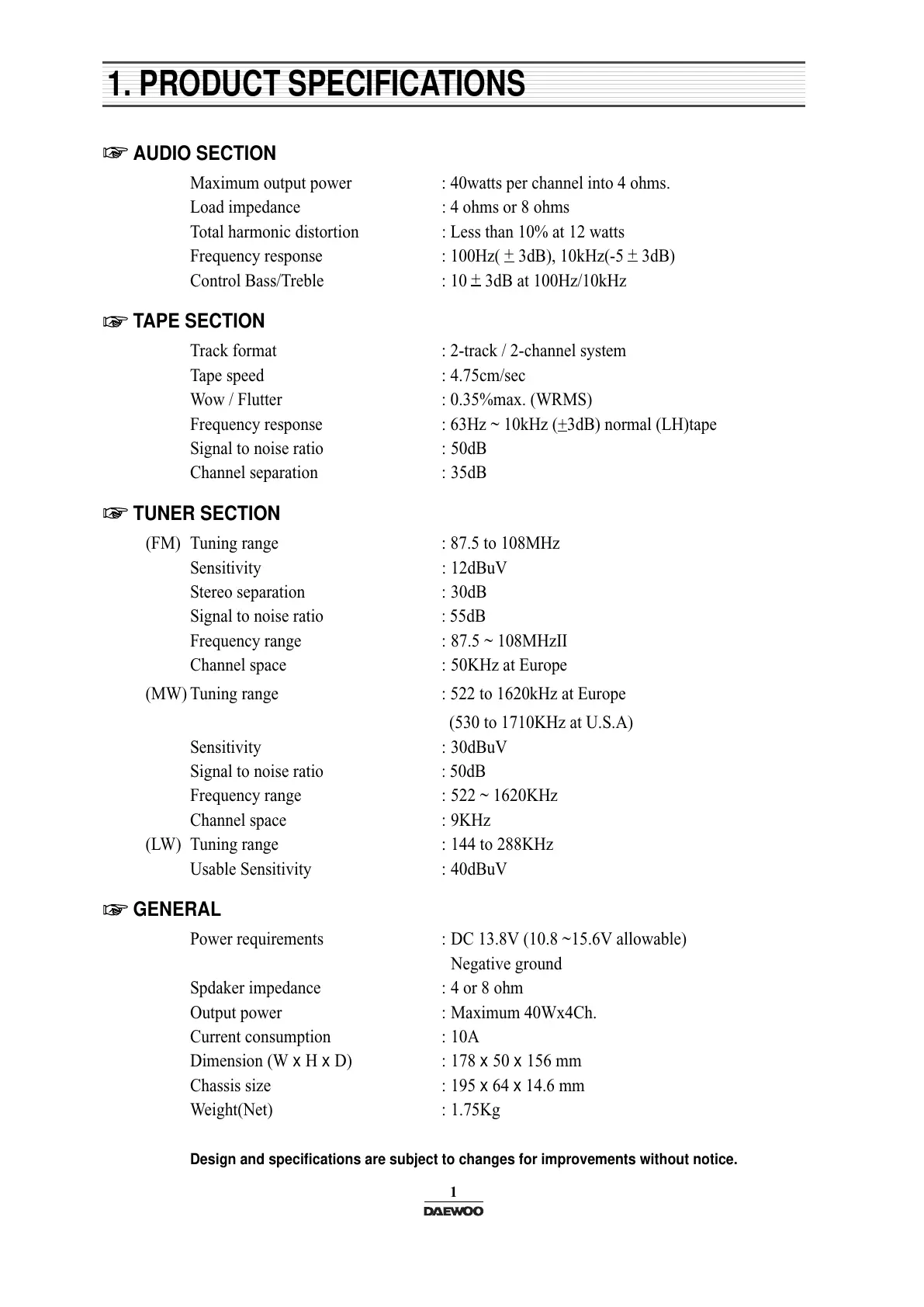

1. PRODUCT SPECIFICATIONS
AUDIO SECTION
Maximum output power : 40watts per channel into 4 ohms.
Load impedance : 4 ohms or 8 ohms
Total harmonic distortion : Less than 10% at 12 watts
Frequency response : 100Hz(
+
3dB), 10kHz(-5
+
3dB)
Control Bass/Treble : 10
+
3dB at 100Hz/10kHz
TAPE SECTION
Track format : 2-track / 2-channel system
Tape speed : 4.75cm/sec
Wow / Flutter : 0.35%max. (WRMS)
Frequency response : 63Hz ~ 10kHz (+3dB) normal (LH)tape
Signal to noise ratio : 50dB
Channel separation : 35dB
TUNER SECTION
(FM) Tuning range : 87.5 to 108MHz
Sensitivity : 12dBuV
Stereo separation : 30dB
Signal to noise ratio
:
55dB
Frequency range : 87.5 ~ 108MHzII
Channel space : 50KHz at Europe
(MW) Tuning range : 522 to 1620kHz at Europe
(530 to 1710KHz at U.S.A)
Sensitivity : 30dBuV
Signal to noise ratio
:
50dB
Frequency range : 522 ~ 1620KHz
Channel space : 9KHz
(LW) Tuning range : 144 to 288KHz
Usable Sensitivity : 40dBuV
GENERAL
Power requirements : DC 13.8V (10.8 ~15.6V allowable)
Negative ground
Spdaker impedance : 4 or 8 ohm
Output power : Maximum 40Wx4Ch.
Current consumption : 10A
Dimension (W x H x D) : 178 x 50 x 156 mm
Chassis size : 195 x 64 x 14.6 mm
Weight(Net) : 1.75Kg
Design and specifications are subject to changes for improvements without notice.
