Belt installation
Check that the fan belt gives proper deflection when the intermediate part of the belt is depressed with finger.
Also check the belt for cracks and damage.
CAUTION :
When belt replacement becomes necessary belts should be replaced by set.
TENSION : The suitable tension is less than 10mm when pressed with the thumb.
CRS
F/D
3
1
4
ALT
5
φ210
φ140
φ86
2
C/C

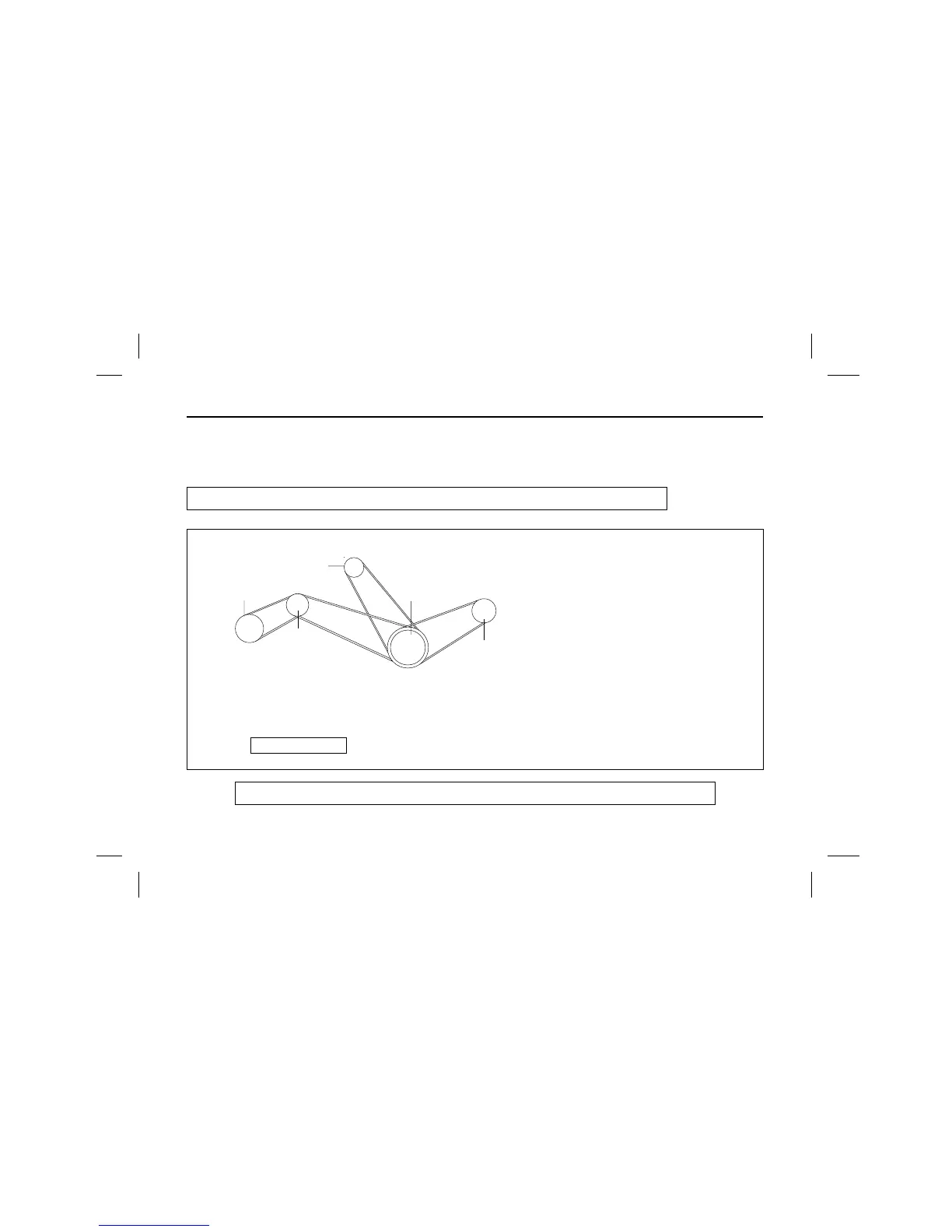

DE12/T/Ti/TiS
1. Idle pulley
2. Cooler compressor pulley
(OPTION : Roof–on cooler)
3. Crank shaft pulley
4. Alternator pulley
5. Fan pulley
