65
AIR–CONDITIONING
COOLER (ROOF–ON TYPE) (OPTION)

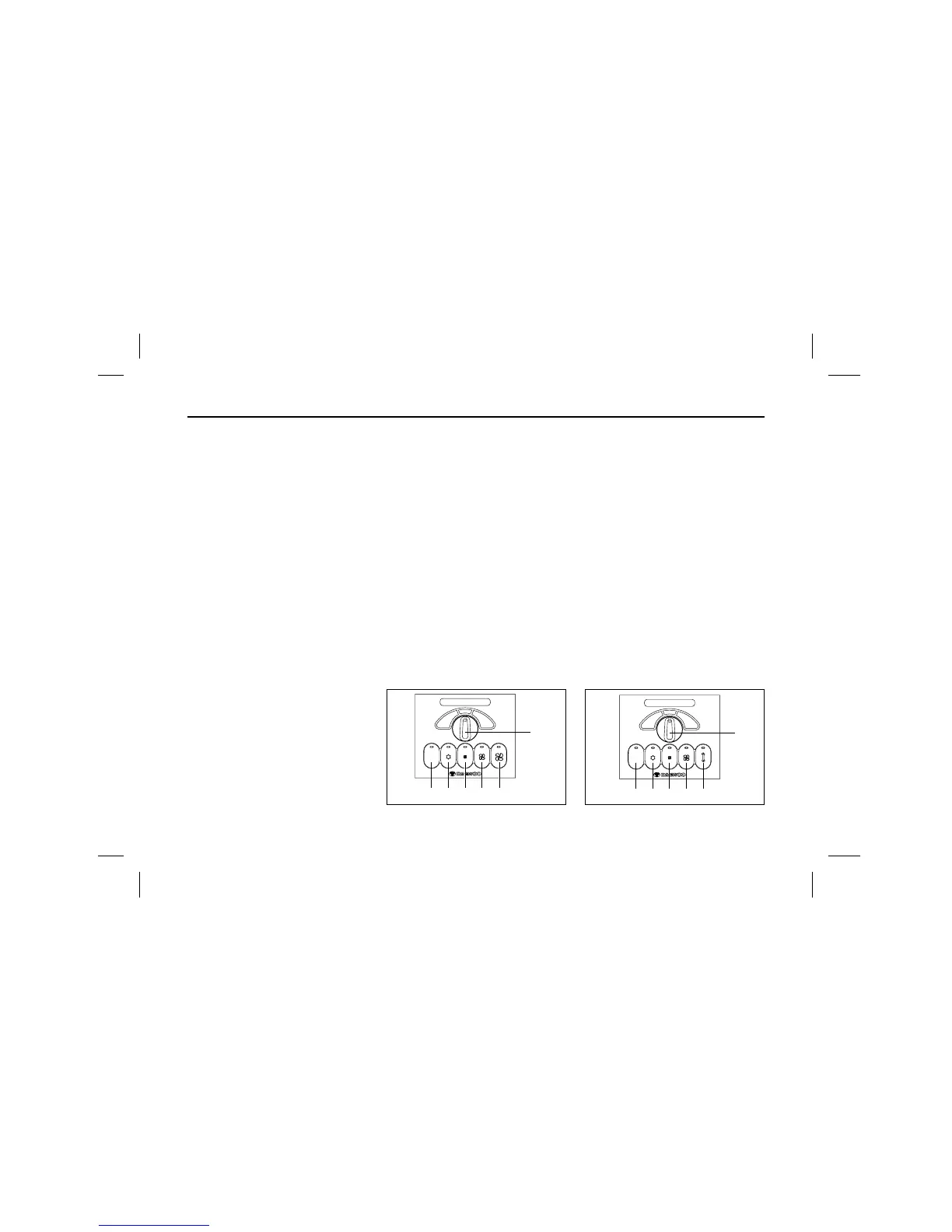

Temperature controller
(Type A : Rotary type control
panel)
Turning the end of left side(Dark
blue), the temperature of indoor is
decrease lowerly otherwise, turning
the right side(Light blue) it’s increase
highly.
Power switch
The cooler power switch is operated
by pressing the button (2), then cool-
er blower fan is operated as each
step of fan speed switch (4, 5, 6).
While the cooling operator switch is
not pressed, room air only cirrculates.
Cooling operator switch (3)
Before press the button, must be
operated power switch(1).
Press the switch (3) and cooler starts
operation.
Blower fan operator switch
(4, 5, 6)
Swithc (4) : 60% of max. capacity.
Swithc (5) : 80% of max. capacity.
Swithc (6) : 100% of max. capacity.
Warning indicator (7)
When the refrigerant is flowing the
high/low pressure or the disconnected
of compressor clutch, etc., then the
indicator lamp come on.
