75
Installation of components

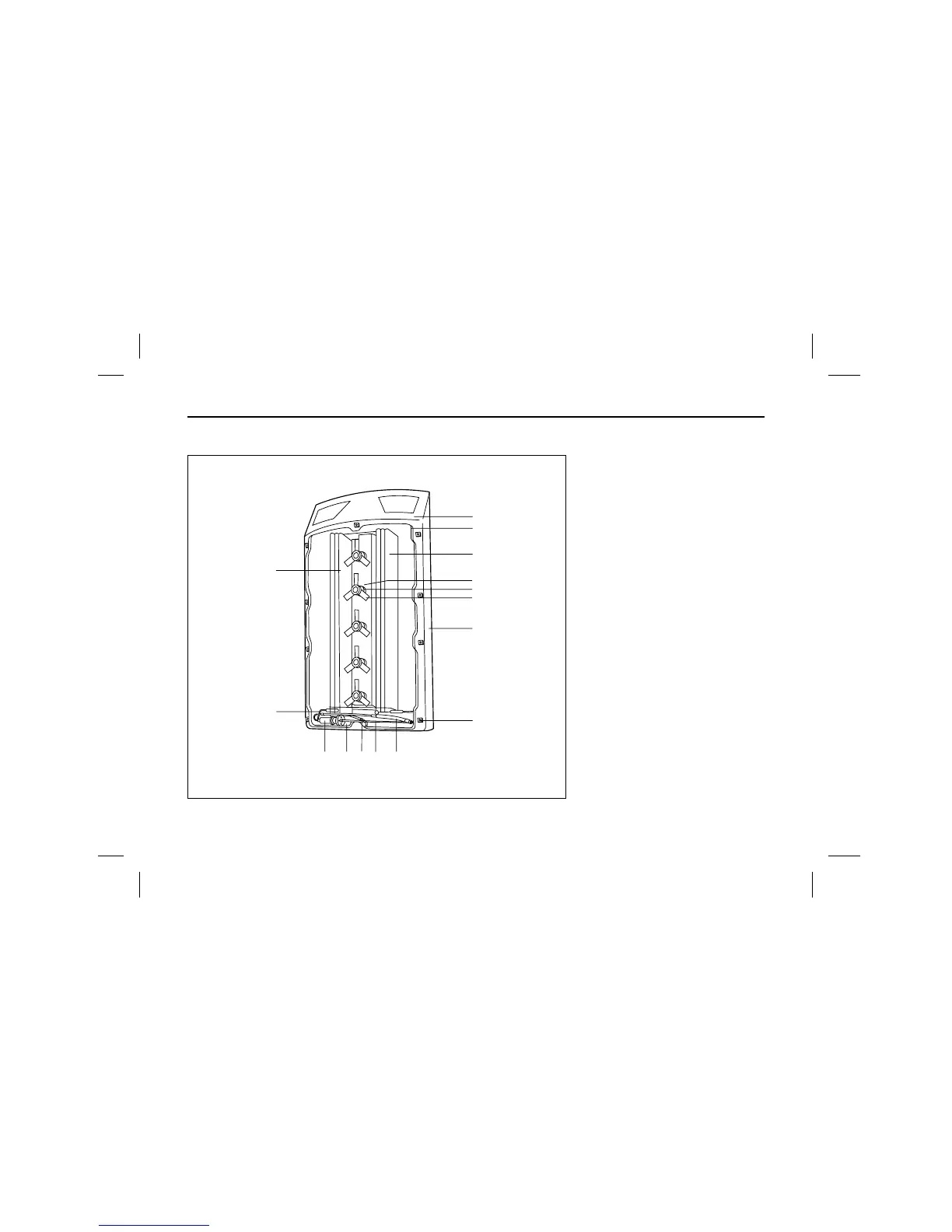

Condenser unit
1. Condenser(LEFT)
2. Condenser(RIGHT)
3. Receiver tank
4. Dryer
5. Motor(DC24V)
6. Fan
7. Motor mount
8. High pressurized gas line(hose)
9. High pressurized liqued pipe(left)
10. High pressurized liqued pipe(right)
11. High pressurized liqued line(hose)
12. Housing
13. Sealing
14. Locking
15. Air intake duct
14
15
2
13
12
1
9
6
5
7
4
3
11 10
8
