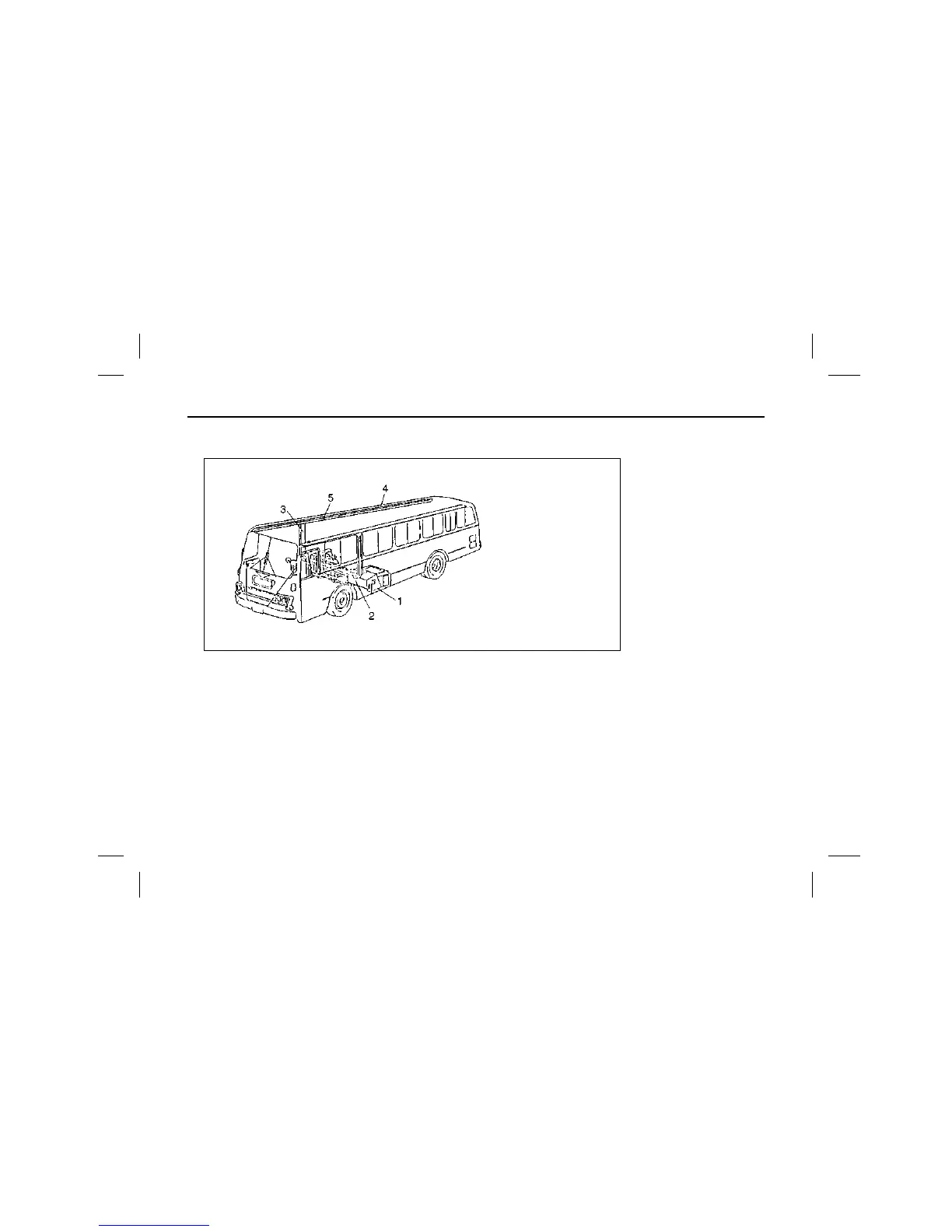

6. Cooling air circulating system
Cooler blows off cooled air through the blow off grilles on the ceilling.
1. Cooler unit
2. Underfloor duct
3. Vertical duct
4. Ceiling duct
5. Grille
