Assembly

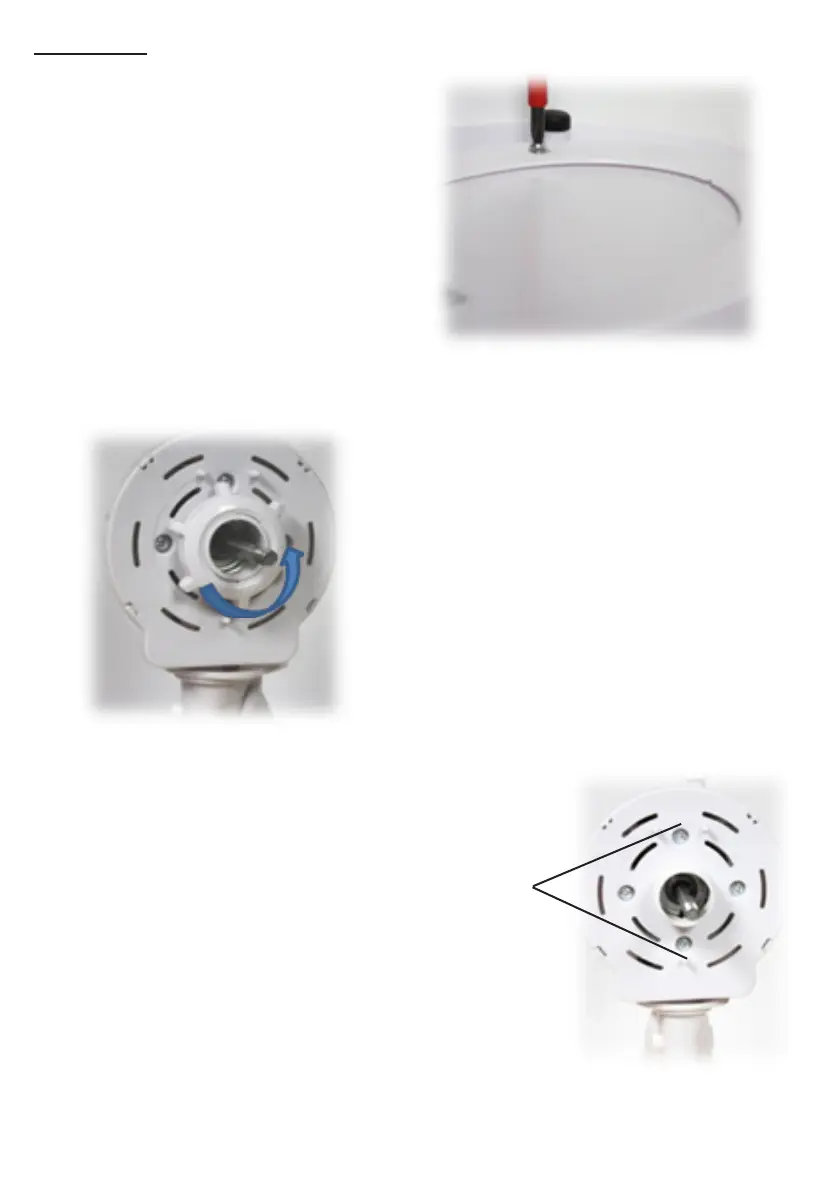

1: First attach the Base Surround
(12) to the base of the fan using
the four pozidrive screws sup-
plied (13) Take care not to over-
tighten the screws.
2: Next place the fan on its base and
remove the Rear Guard Fixing nut (4)
from the Motor Housing (6) by un-
screwing anticlockwise (arrowed).
3: Note the two Rear Guard lo-
cating pins on the Motor Housing
shown right.
Rear guard
locating pins
