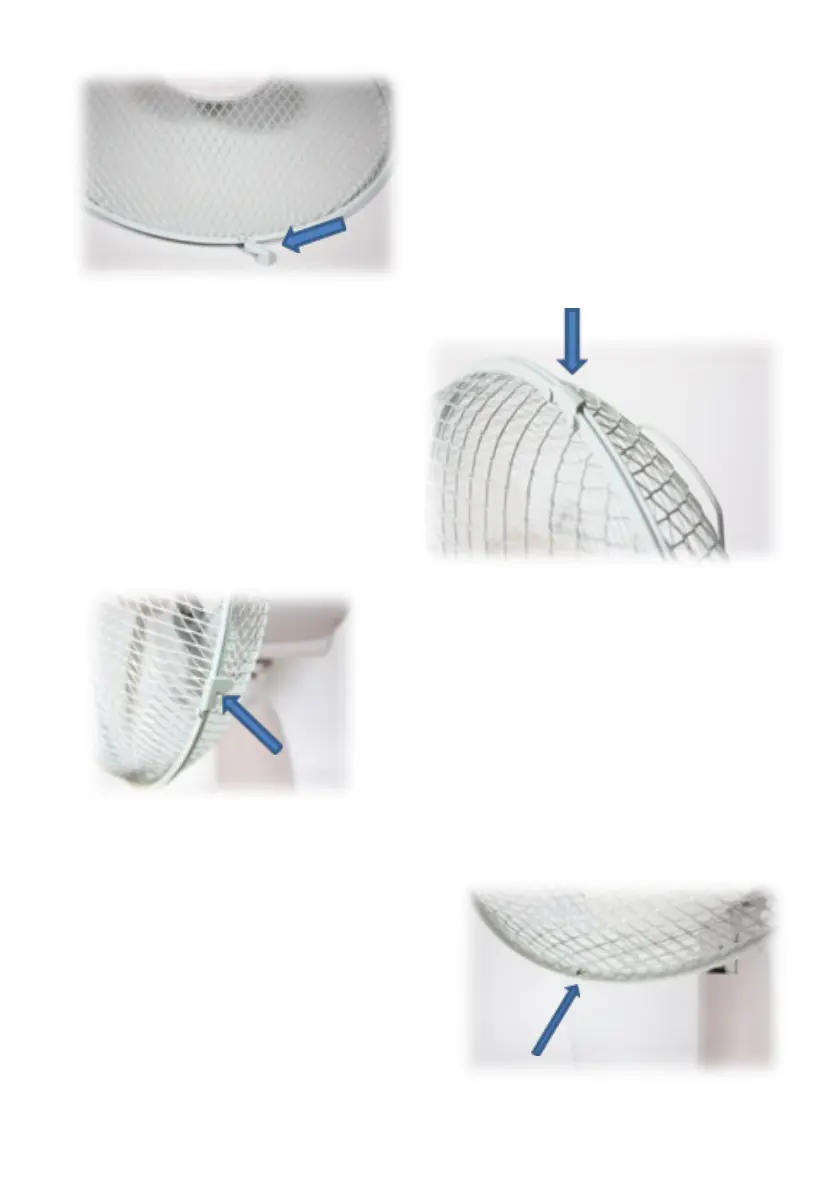

8: Move the Clips (15) at the edge
of the front guard outwards.
9: Hang the front guard (1) by
its hook over the top of the rear
guard (5).
10: Bring the front guard down to
meet the rear guard and push the
clips inwards until the front guard is
fastened to the rear guard.
11: Finally t the Guard Nut and
Screw (2 - arrowed) through the
holes in the bottom edge of the guard
and tighten with a suitable pozidrive
screwdriver (not supplied).
NB this screw and nut must be
tted so that the guard cannot be
removed accidentally.
