ASSEMBLY INSTRUCTIONS

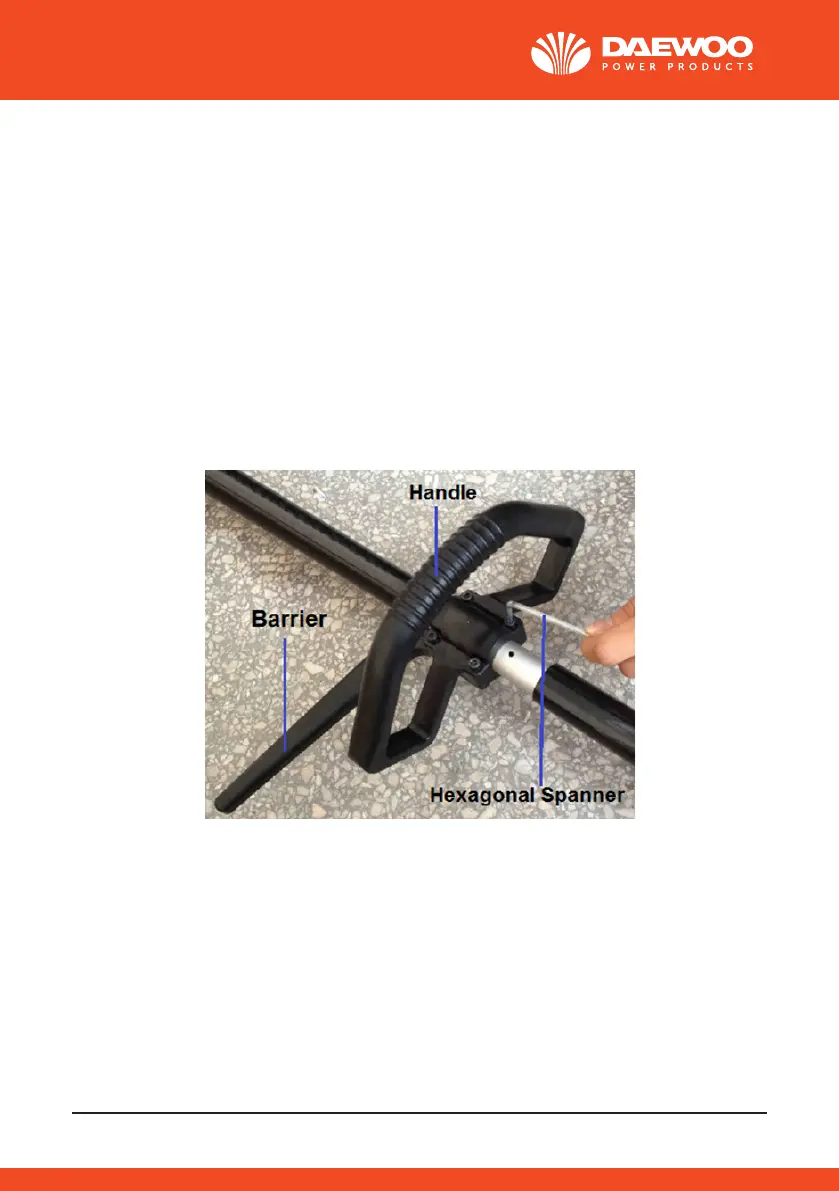

• INSTALLING THE FRONT HANDLE
WARNING
To control the tool safety, the front handle must be attached and use.
1. Insert the barrier handle to the top handle.
2. Fasten the 2 internal hexagonal screws with spanner.
NOTE: Do not over-tighten the bolt and nut, as you may break the shaft.
• INSTALLING THE LOWER SHAFT
The coupler connects the selected attachment to the upper shaft of the
motor.
1. Turn the locking knob on the coupler counterclockwise to loosen it.
2. Remove the protective rubber end cap from the attachment shaft of
the accessory. Save the cap for later use.
