Daewoo DBC430AV - QUICK START; Cutting Blade Assembly (Continued)

8

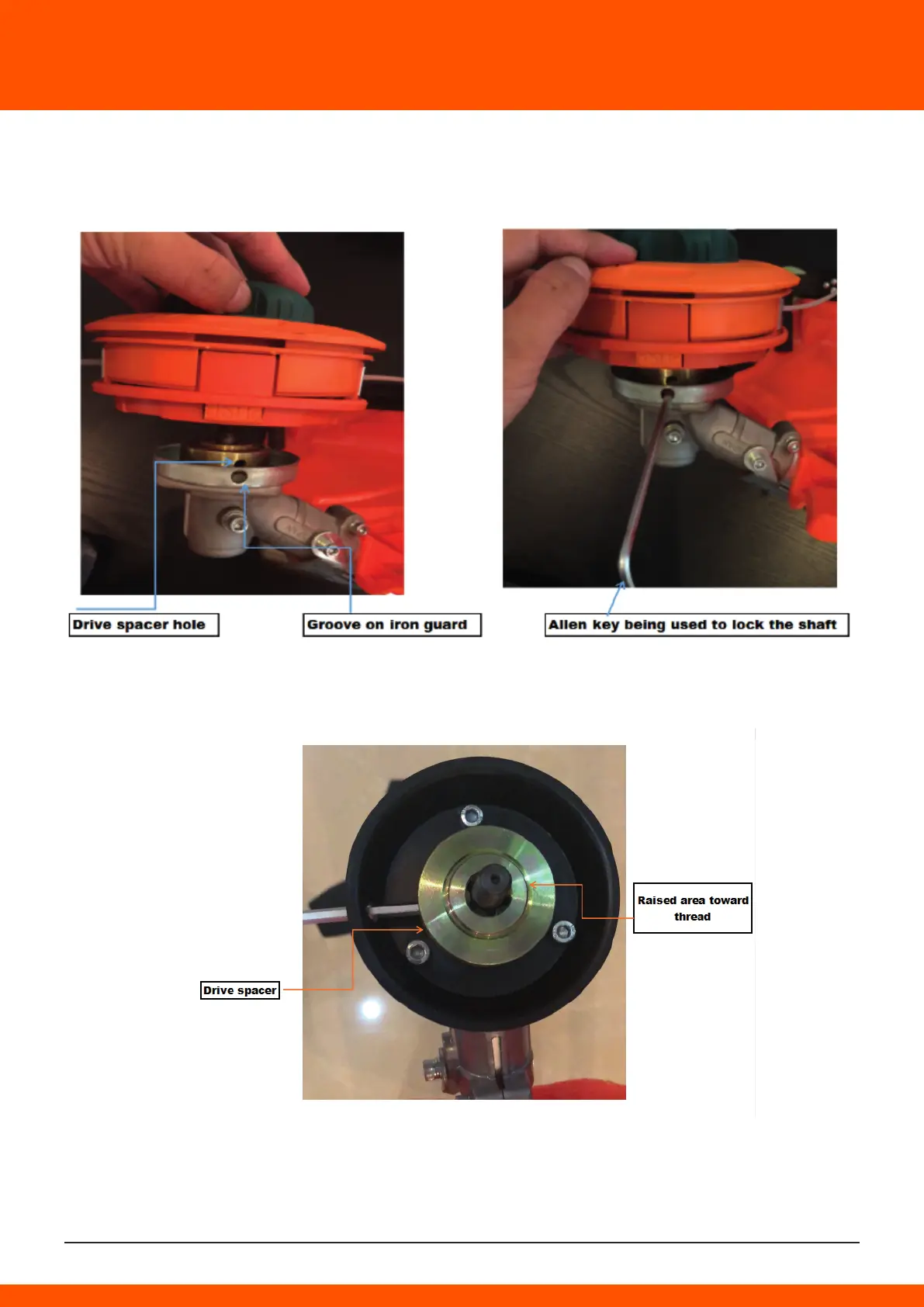

Align hole on drive spacer with groove on the guard, then using the Allen key lock the shaft in
place – once shaft is locked you can tighten the trimmer head.
2.8. Cutting blade assembly. (Instruction to suit either 3 or 5 bladed cutter). Place the drive spacer
over the threaded drive – N.B. Raised area to be toward the thread
