Daewoo DLM Series User Manual

Video
Connection
12
INPUT
SERVICE INPUT
COMPONENT
AUDIO PCHDMI
MONITOR OUT
DIGITAL
AUDIO
AV1
VIDEO L - AUDIO - R
MONITOR OUT
L - AUDIO - R
L - AUDIO - R
S-VIDEO 1
OPTICAL
POWER
CH
VOL MENU PLAY INPUT REW PLAY F.FWD
STOP/
EJECT
STAND
-BY
AV1
VIDEO
INPUT
SERVICE
COMPONENT
AUDIO PCHDMI
MONITOR OUT
DIGITAL
AUDIO
AV1
VIDEO L - AUDIO - R
L - AU
S-VIDEO 1
OPTICAL

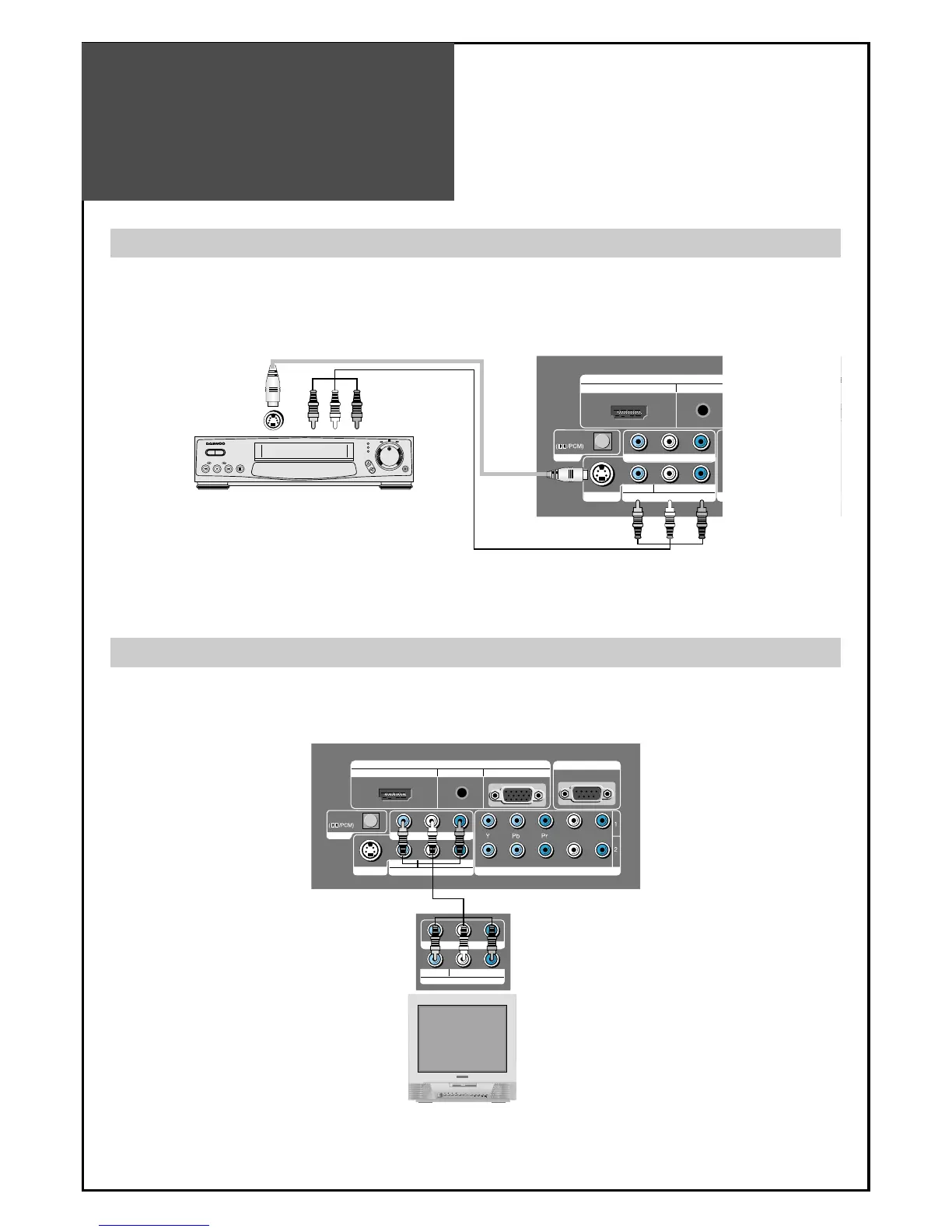

1. Prepare the RCA cable for picture / sound.
2. Connect the RCA to Monitor out terminal of 1’st TV set.
3. Connect the RCA to AV1 or AV2 input terminal of 2’st TV set.
4. Turn on the TV sets.
Note : If S-video and RCA jack are connected the same time, The TV set will only detect the S-Video mode.
• If your AV device has both Video OUT terminal and S-Video OUT terminal, the S-Video connection is
recommended for better picture quality.
Note :
• Monitor out works only CVBS signal. (RF, AV1/S-Video1, AV2/S-Video2)
Connecting with an External Source
Connecting with the Monitor Out.
You may connect an S-Video input to enjoy clearer and brighter picture images. You can make the
connection with the AV1,AV2 inputs.
BACK OF THE TV SET
BACK OF THE TV SET
