Daewoo DLM Series - Camcorder and Video Game Connection; Connecting Devices for Viewing

Camcorder & Video
Game Connection
13
Note : If S-video and RCA jack are connected at the same time, the TV set only detects the S-Video mode.
* If your AV device has both Video OUT terminal and S-Video OUT terminal, the S-Video connection is
recommended for better picture quality.
Watching the Camcorder Recording on TV
1. Prepare the S-video and RCA connector.

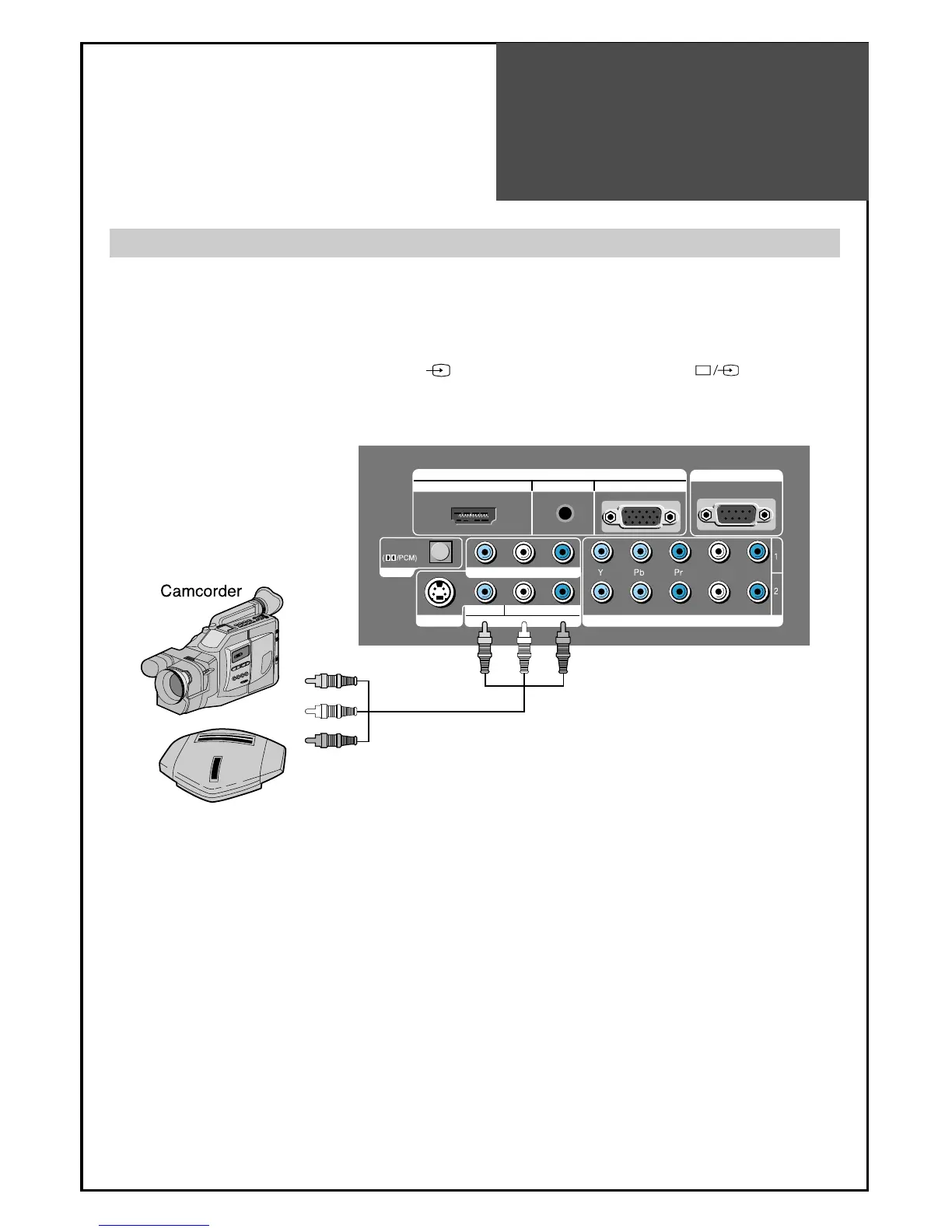

2. These connectors connect to S-Video1, S-Video2 or AV1, AV2 as shown in the picture below.
3. Turn on the TV set and camcorder/video game.
4.
Select AV1,2 / S-Video1,2 mode, using the
””
button of the Remote controller or
“
”
button of the
TV set.
INPUT
SERVICE INPUT
COMPONENT
AUDIO PCHDMI
MONITOR OUT
DIGITAL
AUDIO
AV1
VIDEO L - AUDIO - R
L - AUDIO - R
S-VIDEO 1
OPTICAL
Video game
BACK OF THE TV SET
