1. Remove the air cleaner outside cover (A). Be carefulto prevent dirt and debris from falling into the
Changing the engine oil Tilt the lawnmower towards the oil filler, have a container ready to catch the
oil and remove the dipstick. Once the oil has been emptied, replace the dipstick and wipe clean any
Refill with 500ml SAE30 oil or equivalent i. e SAE5W/30, SAE10W/30. When the dipstick is rested on
WARNING! Always handle the blade with care, sharp edges could cause injury USE GLOVES. Renew
WARNING! If the blade is cracked or damaged replace it with a new one
WARNING! Don't hold the blade by hand directly.
NOTE! Maintain the sharpness of the blade when cutting grass. If the blade has worn excessively
and become pitted and blunt, it should be replaced or sharpened. The sharpness of the blade will
affect the performance of the lawnmower.
For safety reasons we recommend that the blade only be changed by someone qualified and autho-
rized to do so.
Hold the blade and unscrew the blade bolt counterclockwise using a spanner wrench. Remove the
washe
r and the blade.
Fit a new blade or re-sharpen the blade, locate the blade on the two studs on the blade flan and
then replace the washer and bolts. Make sure the blade is correctly located, and then firmly tighten
the bolt. Do not over tighten. The up turn of the blade must project into the motor compartment.
Storing the Lawnmower for Short Periods
The lawnmower can be stored for short periods of time (less than 15 days) without performing any
storage maintenance. Before placing the lawnmower into storage always carry out the following:
1.A
llow the engine to fully cool.2.Ensure the grass bag is empty.
3. Clean all debris from under the mower deck.
4. Store the lawnmower on flat and level surface with the mower upright.
5. Store in a safe place which is not accessible by children or people who are notfamiliar with opera-
tion.
Storing the Lawnmower for Extended Periods
If the lawnmower is to be place into storage for more than 15 days, storage maintenance must be
performed on the lawnmower. If the following steps are not carried out, when you next operate the
lawnmower it may not start correctly and may need to be serviced.
CAUTION! Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes
can cause explosions and fire
1. Empty the petrol tank with a petrol suction pump if available.
2. Start the engine and let it run until any remaining petrol has been used up.3.Change the oil at the
end of every season. To do so, remove the used engine
WARNING! If the blade is cracked or damaged replace it with a new one
WARNING! Don't hold the blade by hand directly.
NOTE! Maintain the sharpness of the blade when cutting grass. If the blade has worn excessively
and become pitted and blunt, it should be replaced or sharpened. The sharpness of the blade will
affect the performance of the lawnmower.
For safety reasons we recommend that the blade only be changed by someone qualified and autho-
rized to do so.
Hold the blade and unscrew the blade bolt counterclockwise using a spanner wrench. Remove the
wash
er and the blade.
Fit a new blade or re-sharpen the blade, locate the blade on the two studs on the blade flan and
then replace the washer and bolts. Make sure the blade is correctly located, and then firmly tighten
the bolt. Do not over tighten. The up turn of the blade must project into the motor compartment.
Storing the Lawnmower for Short Periods
The lawnmower can be stored for short periods of time (less than 15 days) without performing any
storage maintenance. Before placing the lawnmower into storage always carry out the following:
1.Allo
w the engine to fully cool.2.Ensure the grass bag is empty.
3. Clean all debris from under the mower deck.
4. Store the lawnmower on flat and level surface with the mower upright.
5. Store in a safe place which is not accessible by children or people who are notfamiliar with opera-
tion.
Storing the Lawnmower for Extended Periods
If the lawnmower is to be place into storage for more than 15 days, storage maintenance must be
performed on the lawnmower. If the following steps are not carried out, when you next operate the
lawnmower it may not start correctly and may need to be serviced.
CAUTION! Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes
can cause explosions and fire
1. Empty the petrol tank with a petrol suction pump if available.
2. Start the engine and let it run until any remaining petrol has been used up.3.Change the oil at the
end of every season. To do so, remove the used engine
WARNING! If the blade is cracked or damaged replace it with a new one
WARNING! Don't hold the blade by hand directly.
NOTE! Maintain the sharpness of the blade when cutting grass. If the blade has worn excessively
and become pitted and blunt, it should be replaced or sharpened. The sharpness of the blade will
affect the performance of the lawnmower.
For safety reasons we recommend that the blade only be changed by someone qualified and autho-
rized to do so.
Hold the blade and unscrew the blade bolt counterclockwise using a spanner wrench. Remove the
washer
and the blade.
Fit a new blade or re-sharpen the blade, locate the blade on the two studs on the blade flan and
then replace the washer and bolts. Make sure the blade is correctly located, and then firmly tighten
the bolt. Do not over tighten. The up turn of the blade must project into the motor compartment.
Storing the Lawnmower for Short Periods
The lawnmower can be stored for short periods of time (less than 15 days) without performing any
storage maintenance. Before placing the lawnmower into storage always carry out the following:
1.Allow the en
gine to fully cool.2.Ensure the grass bag is empty.
3. Clean all debris from under the mower deck.
4. Store the lawnmower on flat and level surface with the mower upright.
5. Store in a safe place which is not accessible by children or people who are notfamiliar with opera-
tion.
Storing the Lawnmower for Extended Periods
If the lawnmower is to be place into storage for more than 15 days, storage maintenance must be
performed on the lawnmower. If the following steps are not carried out, when you next operate the
lawnmower it may not start correctly and may need to be serviced.
CAUTION! Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes
can cause explosions and fire
1. Empty the petrol tank with a petrol suction pump if available.
2. Start the engine and let it run until any remaining petrol has been used up.3.Change the oil at the
end of every season. To do so, remove the used engine
WARNING! If the blade is cracked or damaged replace it with a new one
WARNING! Don't hold the blade by hand directly.
NOTE! Maintain the sharpness of the blade when cutting grass. If the blade has worn excessively
and become pitted and blunt, it should be replaced or sharpened. The sharpness of the blade will
affect the performance of the lawnmower.
For safety reasons we recommend that the blade only be changed by someone qualified and autho-
rized to do so.
Hold the blade and unscrew the blade bolt counterclockwise using a spanner wrench. Remove the
washer and
the blade.
Fit a new blade or re-sharpen the blade, locate the blade on the two studs on the blade flan and
then replace the washer and bolts. Make sure the blade is correctly located, and then firmly tighten
the bolt. Do not over tighten. The up turn of the blade must project into the motor compartment.
Storing the Lawnmower for Short Periods
The lawnmower can be stored for short periods of time (less than 15 days) without performing any
storage maintenance. Before placing the lawnmower into storage always carry out the following:
1.Allow the engin
e to fully cool.2.Ensure the grass bag is empty.
3. Clean all debris from under the mower deck.
4. Store the lawnmower on flat and level surface with the mower upright.
5. Store in a safe place which is not accessible by children or people who are notfamiliar with opera-
tion.
Storing the Lawnmower for Extended Periods
If the lawnmower is to be place into storage for more than 15 days, storage maintenance must be
performed on the lawnmower. If the following steps are not carried out, when you next operate the
lawnmower it may not start correctly and may need to be serviced.
CAUTION! Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes
can cause explosions and fire
1. Empty the petrol tank with a petrol suction pump if available.
2. Start the engine and let it run until any remaining petrol has been used up.3.Change the oil at the
end of every season. To do so, remove the used engine
www.daewoopower.bg
38
BG

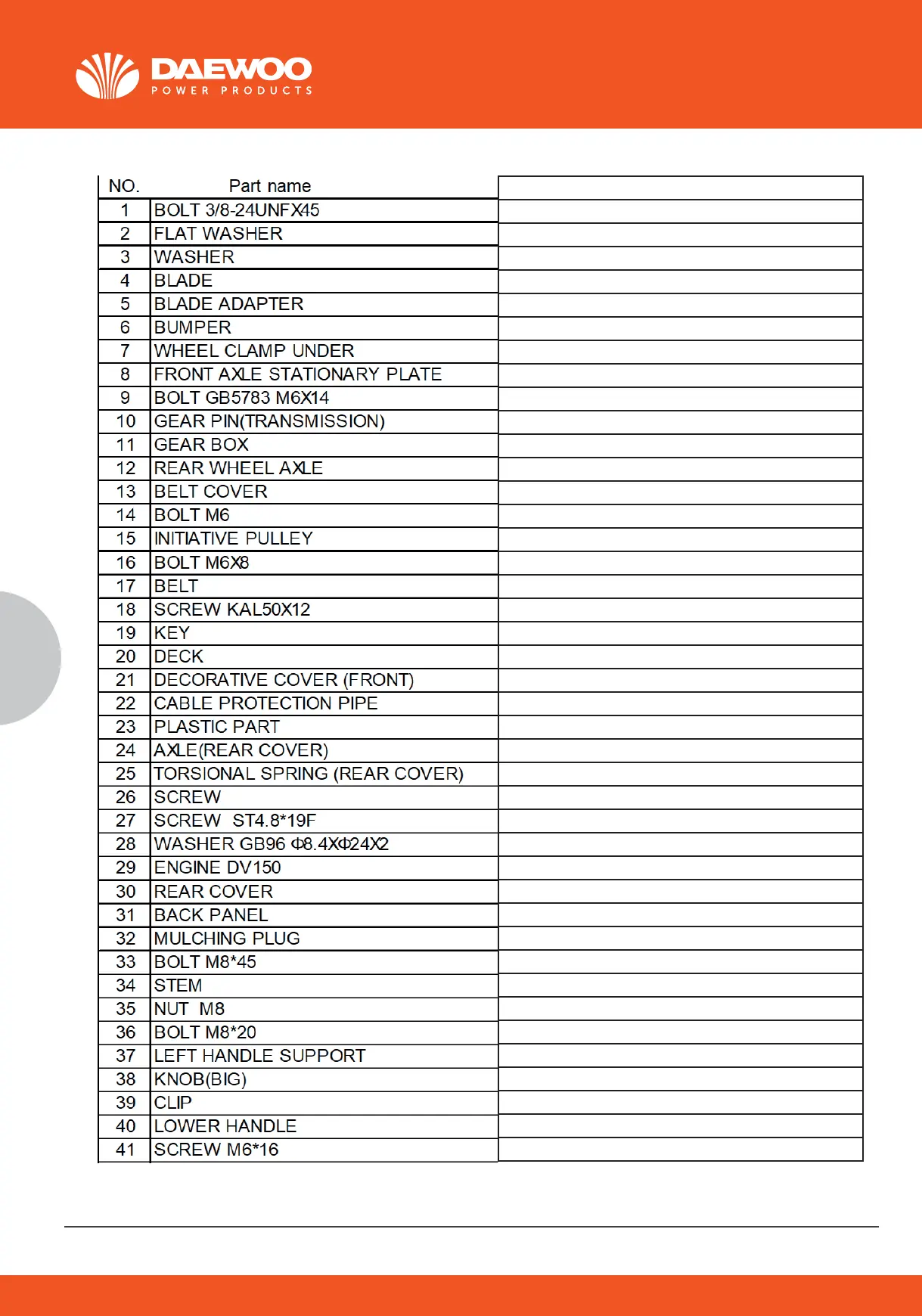

ОПИСАНИЕ
Болт на ножа
Плоска шайба
Шайба на ножа
Нож
Държач на ножа
Предна броня
Държач на оста
Стойка на предната ос
Болт M6X14
Щифт
Редуктор
Задна ос на колелата
Капак на ремъка
Гайка M6
Ремъчна шайба
Болт M6X8
Ремък
ВИНТ 5х12
Шпонка
Носеща рама
Капак
Защитна втулка
Стойка на капака
Ос на задният капак
Пружина
ВИНТ
Винт ST4.8X19F
ШАЙБА Ф8,4ХФ24Х2
Двигател
Заден капак
Заден панел
Приставка на задния панел
Болт М8х45
Тапа
Гайка M8
Болт M8X20
Стойка на лявата ръкохватка
Гайка
Клипс
Долна дръжка
Болт М6х16
