60
DESCRIPTION
There are one Stepping Motor for Flap (up and down) and it is used 4 face Drive Method.

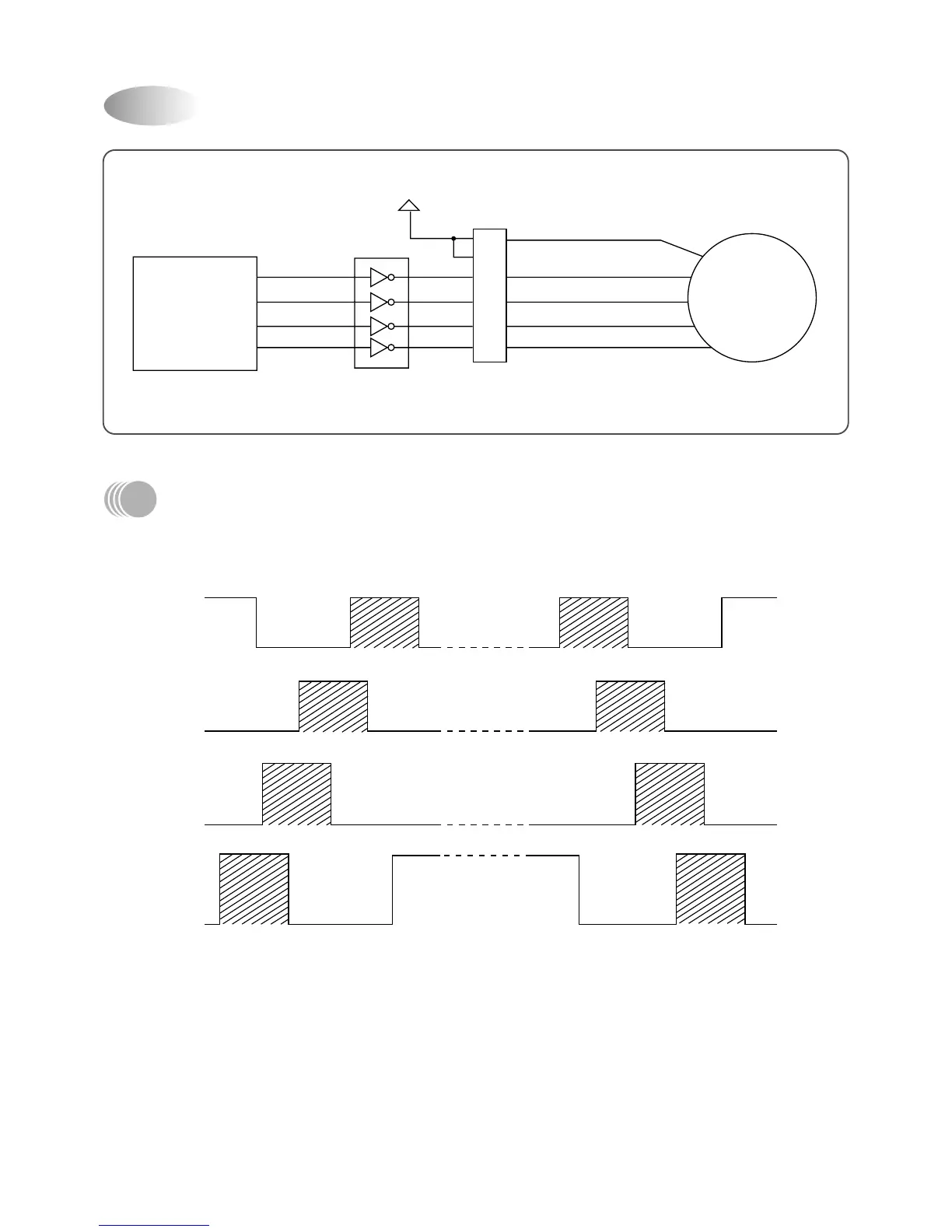

It is driving as following Fig 12-1. (Ring Count Method of 8 Status)
Ø 4
Ø 3
Ø 2
Ø 1
B
+
6
5
4
3
2
1
12V
IC6
KID65004
CN13
1
MICOM
2
3
4
M1
FOR SWING
Ø 4
Ø 3
Ø 2
Ø 1
Fig 12-1
(Normal Rotating) (Reversed Rotating)
Stepping Motor Driving(12)
