67
◆DSA-185L, 185P

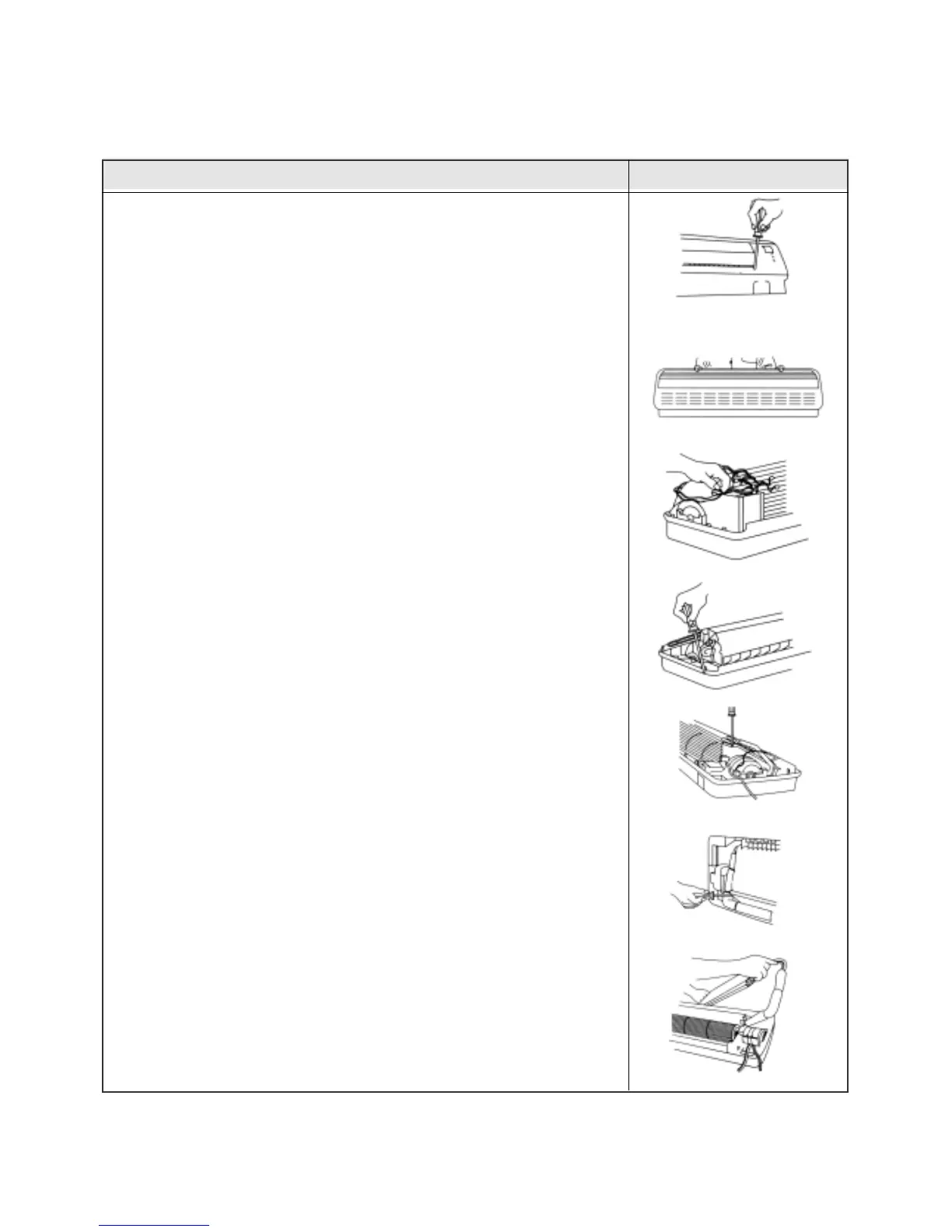

PROCEDURES PHOTOS
1. Stop the Air conditioner and disconnect the power cord from the wall
outlet.
2. Removing the Insert Grille and Frame.
! Loosen three screws for fixing the the Insert Grille and Frame.
(Pull out the frame cap before loosening three screws) (Fig 1)
@ Loosen three screws at the Drain Pan.
# Remove the Insert Grille and Frame.
3. Removing the Control Box.
After doing above procedures:
! Disconnect indoor room and coil thermistors. (Fig 3)
@ Disconnect the fan motor lead wire from connection at the main
PCB. (Fig 3)
# Disconnect the swing motor connection wire.
$ Loosen a screw for fixing ground wire.
% Loosen two screws for fixing the body.
4. Removing the Drain Pan.
After doing above procedures:
! Loosen a screw for fixing body. (Fig 4)
@ Unhook the right part of Drain Pan.
5. Removing the Indoor Coil.
After doing above procedures:
! Loosen four screws for fixing indoor coil at left and right side. (Fig 5)
@ Loosen a screw for fixing the bracket tube at the back side. (Fig 6)
# Remove the indoor coil. (Fig. 6-1)
6. Removing the fan motor.
After doing above procedures:
! Loosen two screws for fixing holder moter at left and right side.
(Fig 7, 8)
@ Loosen a screw for fixing fan motor and blower.
# Renove the fan motor.
Fig 2
Fig 1
Fig 3
Fig 4
Fig 5
Fig 6
Fig 6-1
To Next Page
