-32-
WAVEFORMS
Appendix
WAVEFORMS

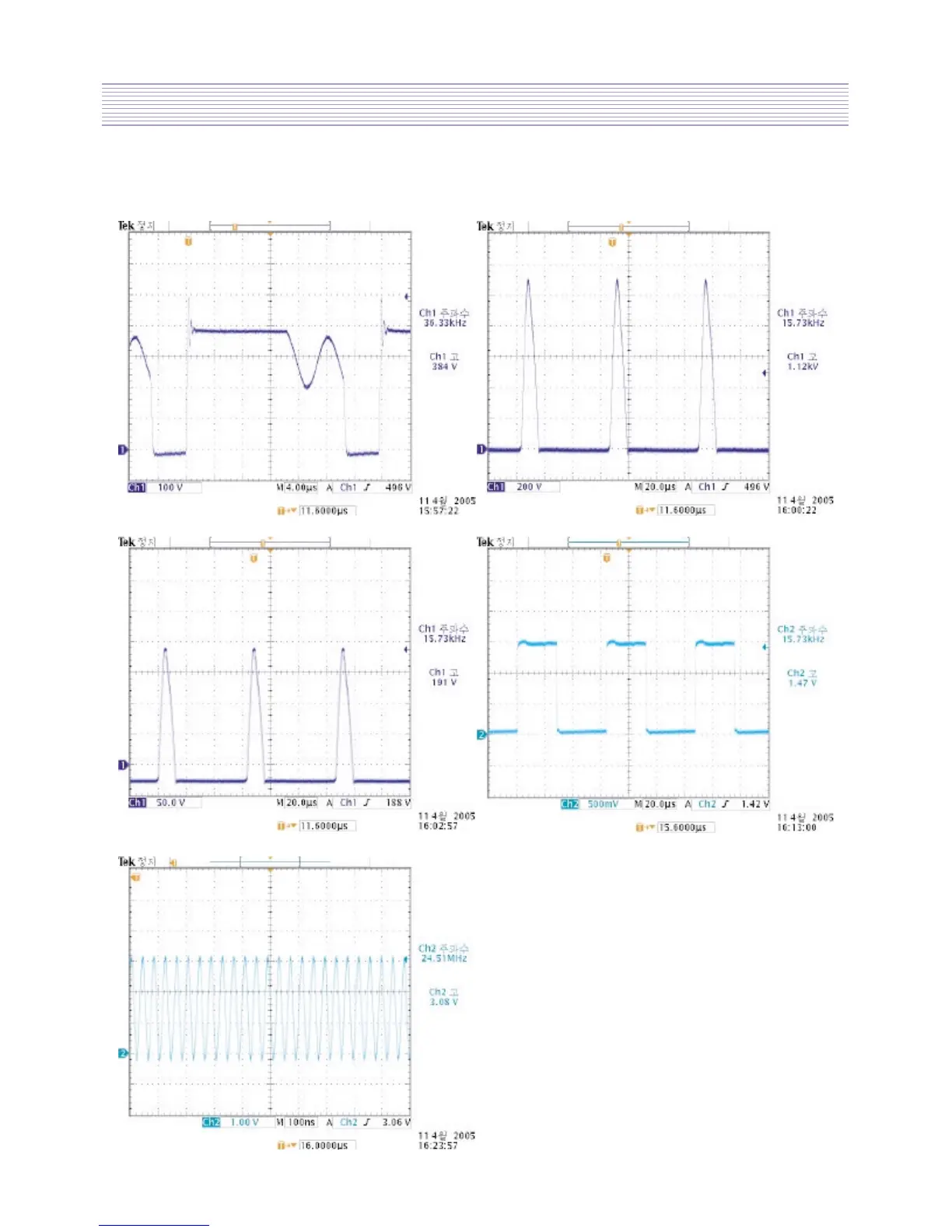

1).I801 PIN1 2).T402(FBT) HOR.OUT
3).T402(FBT) 192V(D406) 4).I701 PIN73 HOUT
5).I701 (X-TAL)
