24
TROUBLESHOOTING GUIDE

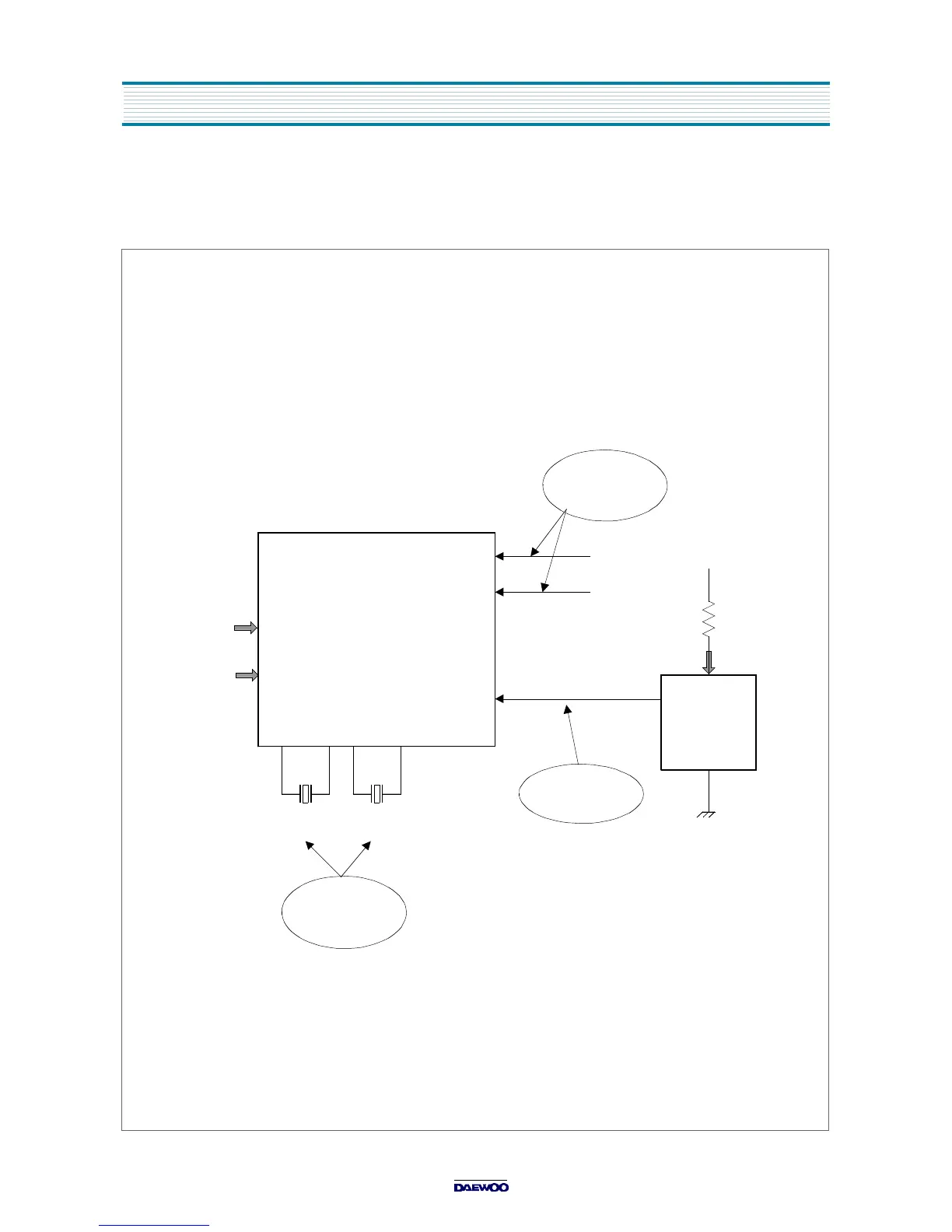

2-7) REMOTE CONTROL DOES NOT OPERATE
XCS01
#14
32KHz
Check
the crystal
Check
the voltage
ICS01
TIMER/SYSCON
#100
XS02
KEY 1
16MHz
#35 #36 #38 #39
#37
#34RESET
Vcc(5V)
#1
KEY 0
IT01
REMOCON
PREAMP
RT01
Vcc(5V)
Check
the waveform
