DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
13
To assemble the gear mechanism ass’y, reverse the disassembly procedure.
NOTES

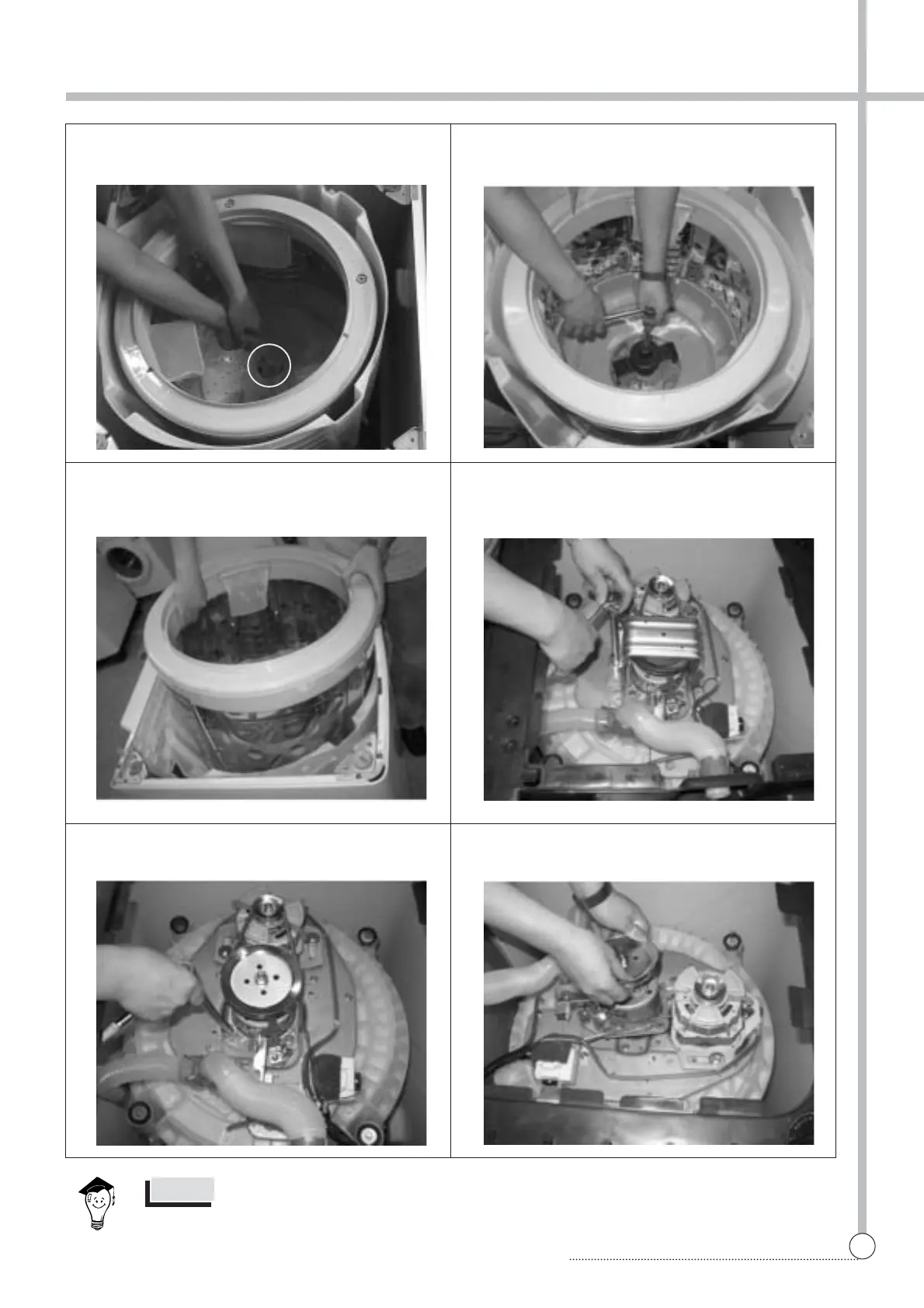

6 Unscrew PULSATOR mounting screw and separates
PULSATOR form TUB ass’y.
7 Unscrew special nut using ‘T’ type box wrench.
8 Separate TUB I from TUB ass’y. 9 Lay the top of the washing machine on the floor.
0 Unscrew 4 special bolts of GEAR PROTECT using a
box wrench and separate GEAR PROTECT .
q Unscrew 4 special bolts of GEAR MECHANISM using
a box wrench.
w Separate GEAR MECHANISM and BELT V.
To Next Page
