5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
12
Gear Mechanism Ass’y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCONNECT
THE POWER CORD FROM THE ELECTRIC OUTLET.
Warning
1 Remove 1 screw from the PANEL F.
2 Separate PANEL F by pushing PANEL F washing to
the right.
3 Remove 4 screws and separate PLATE T from
washing machine.
4 Remove 4 screws and separates
COVER TUB from TUB ass’y.
6 Remove CAP PULSATOR form PULSATOR using
screw driver.

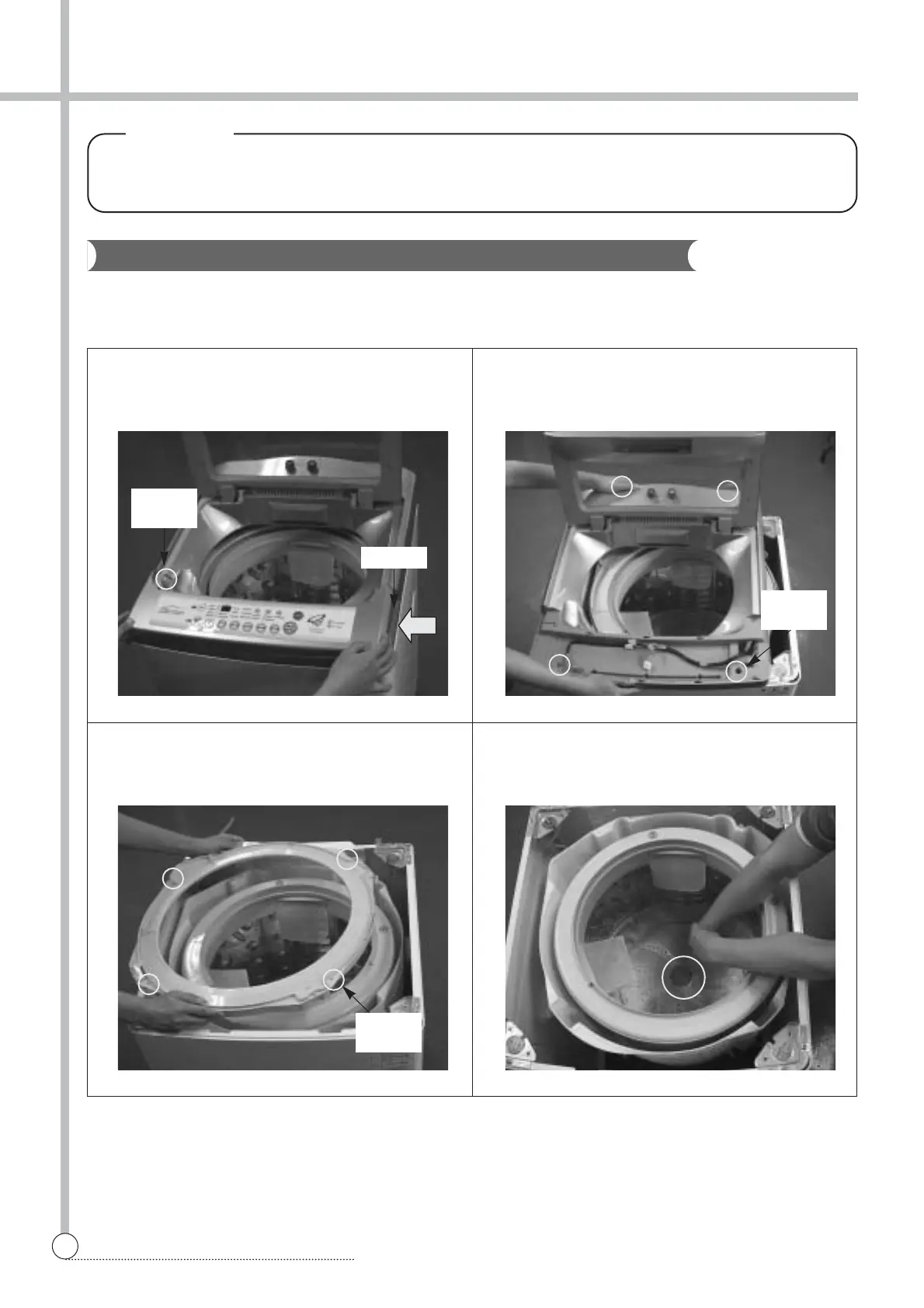

GEAR MECHANISM ASS’Y REPLACEMENT
Remove
screw
Pushing
Remove
4 screws
Remove
4 screws
To Next Page
