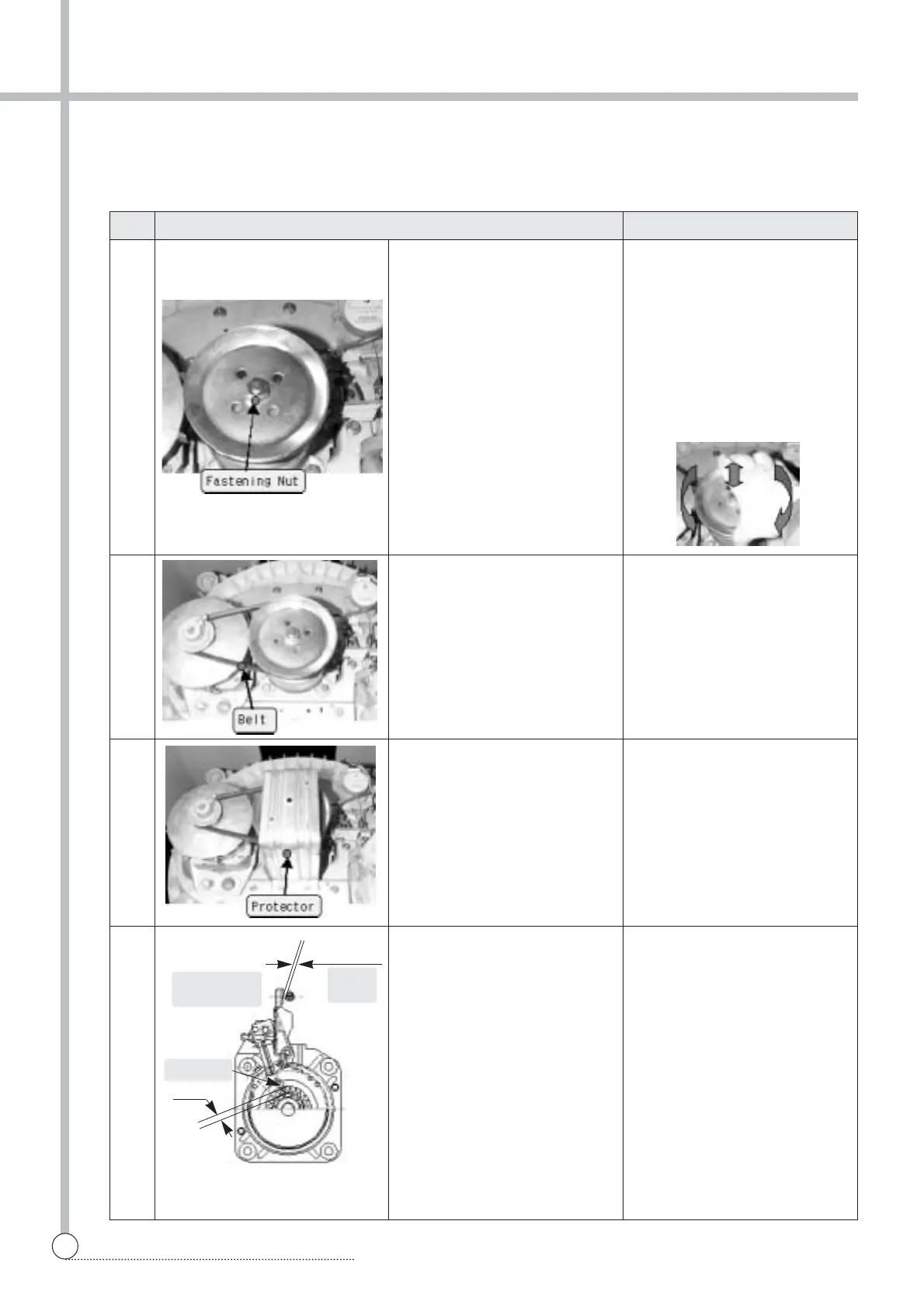

THE REPAIR METHOD
20
No. Process Notice
Assembling 2
5
6
7
8
Assemble the fastening nut
Assemble the belt
Assemble the protector
Final checking
- Use fixing jig and 17mm
socket wrench
as if disassembling,
as fastening torque about
100~200kgf-cm.
- Check the end-play, up and
downward and check the bind-
ing force, too much or not on
bi-direct of rotation.
Finally, check the distance
between brake lever and
control bolt(2~3mm).
Also, check the interference
depth both clutch tip and
clutch boss(3.5~4.5mm).
Drain
Valve
Synchronous
Motor
keep distance
2~3mm
Clutch Tip
3.5~4.5
To Next Page
