5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
Gear Mechanism Ass y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCONNECT
THE POWER CORD FROM THE ELECTRIC OUTLET.
WWaarrnniinngg

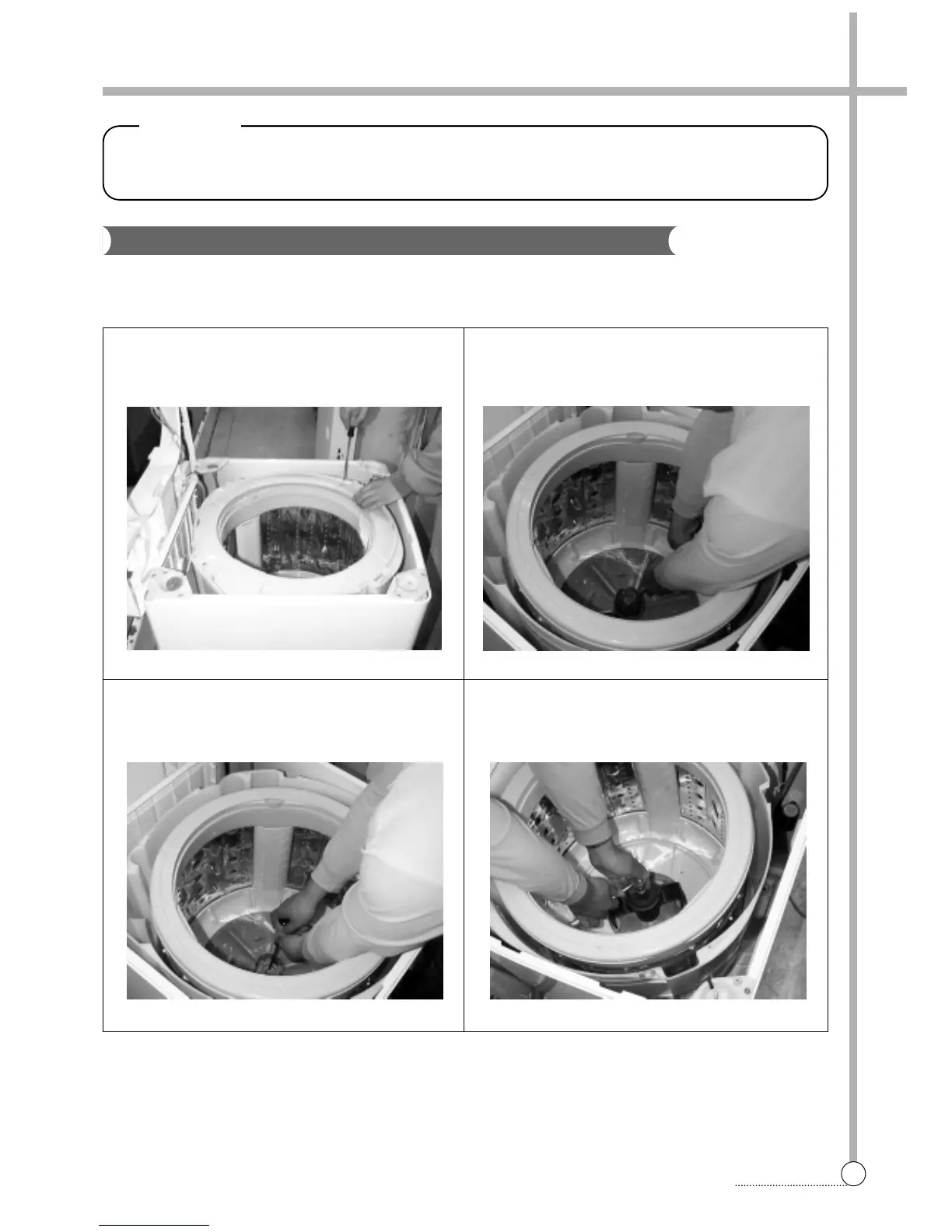

1 Raise the top plate on the outer cabinet.
2 Loosen four screws mounting outer tub cover and
remove outer tub cover from the tub ass’y.
4 Loosen the pulsator mounting screw and remove the
pulsator.
3 Remove the cap pulsator from the pulsator assy by
using screw driver
5 Remove the special nut by using “T” type box wrentch.
6 Remove the special washer.
GEAR MECHANISM ASSY REPLACEMENT
To Next Page
