17
EXPLANATION
The proper water currents is made by the rotation of pulsator at a low speed (about 140 r.p.m) to prevent the damage
to the small sized clothes.
STRUCTURE
Pulsator shaft
One way clutch
bearing
Brake lever
Spin shaft
Gear unit as
Clutch spring
Clutch boss
Gear pulley
Planetary gear
Sun gear
Internal gear
Pulsator
1 revolution
5.2 revolutions
Gear pulley
V-belt
Gear unit as
Motor
Motor
1490 r.p.m
(50Hz)
Gear Unit as
1/5.2
Directly
Tub
750 r.p.m
Pulsator
140 r.p.m
Gear Pulley
750 r.p.m
Bobbin & coil
Magnet
Armature
Bellows
Air out hole
Protector A
Protector B
Air in hole
Air
Air
Trans core

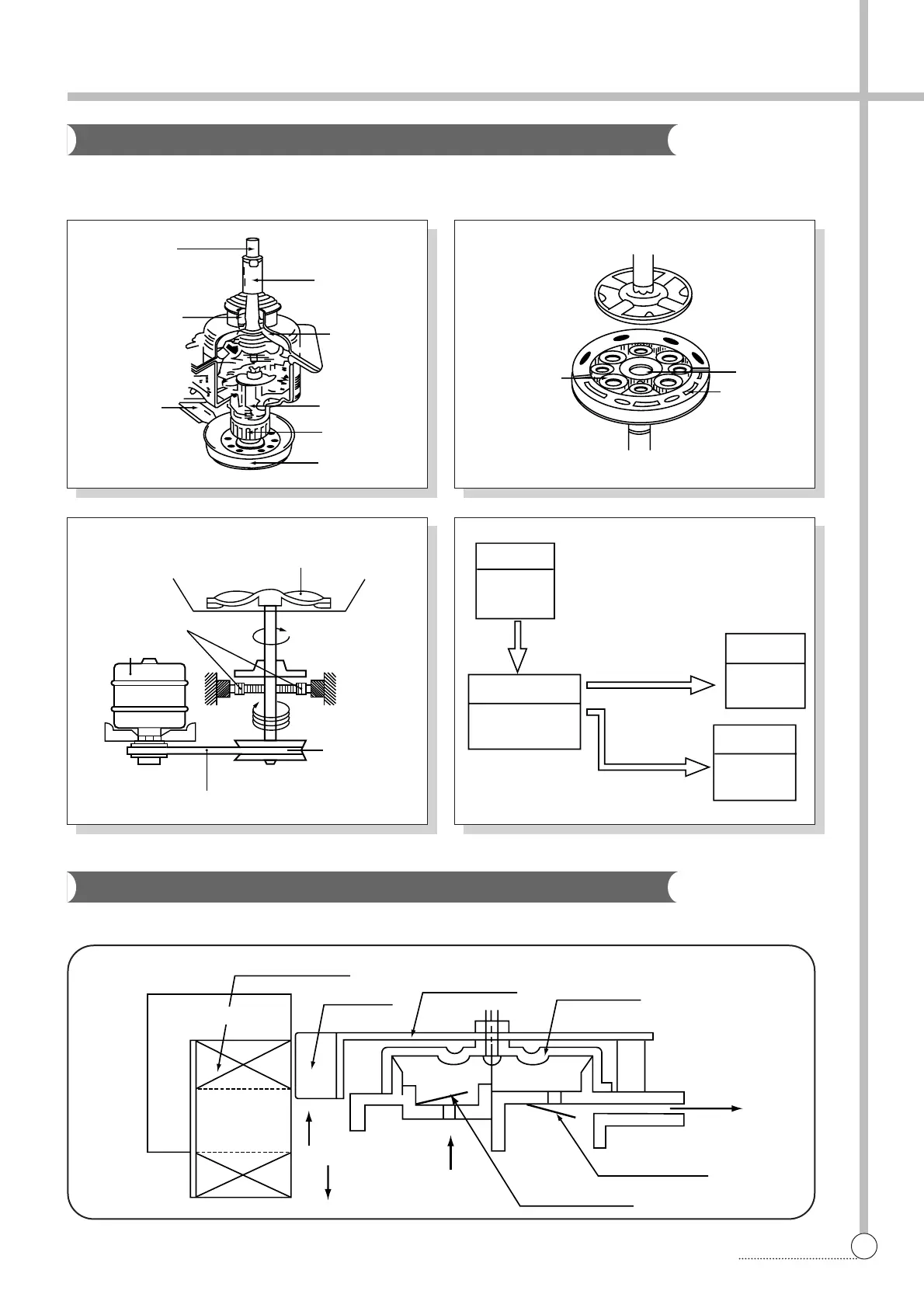

Gear Mechanism Ass’y
Principle of Bubble Generator
