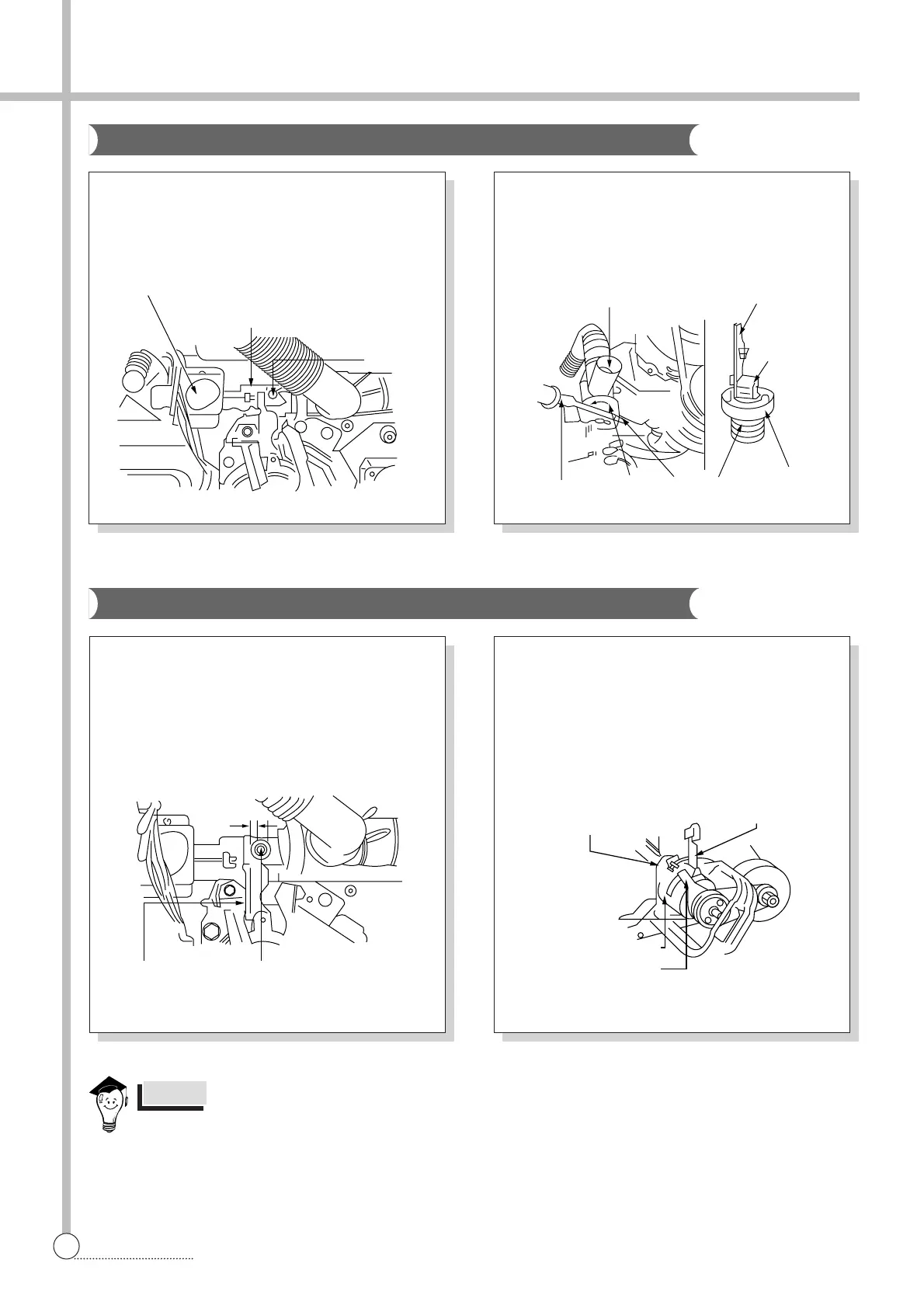

Daewoo DWF-6010 - Drain Motor and Valve; Brake Adjustment

20
DIRECTION
¡ Lay the front of the washer on the floor.
¡ Loosen the adjustment screw and four bolts
mounting the drain motor.
¡ Take out the wire of drain motor from the bracket.
¡ Loosen the adjustment screw fastening the
bracket and place the adjustment screw to the
brake lever as shown in figure.
¡ Tighten the adjustment screw completely.
¡ Loosen the adjustment bolt and turn the
adjustment bolt until the end of the bolt touches to
the brake lever.
¡ Tighten the lock nut and apply a small amount of
paint-lock.
¡ Separate the drain motor from the bracket.
¡ Turn the valve lid by using screw driver as shown
in figure and remove the valve lid from the valve
frame.
Bracket
Adjustment
screw
Valve frame
Screw dirver Valve lid Pin Bellows
Valve lid
Brake lever Adjustment screw
3mm
Drain Motor and Valve
Brake Adjustment
1. The brake adjustment has been made at the factory, so that it is not to re-adjust. However, in case of
insufficient brake operation, perform the upper procedure.
2. Overtightening of the adjustment bolt will cause poor brake performance.
3. Undertightening of the adjustment bolt will cause continuous bracking and, thereby, cause the problems of
the motor during the spin cycle.
NOTES
Drain motor
Adjustment
screw
Wire Bracket
Brake lever
Adjustment bolt
Gear mechanism ass'y
Clutch lever
