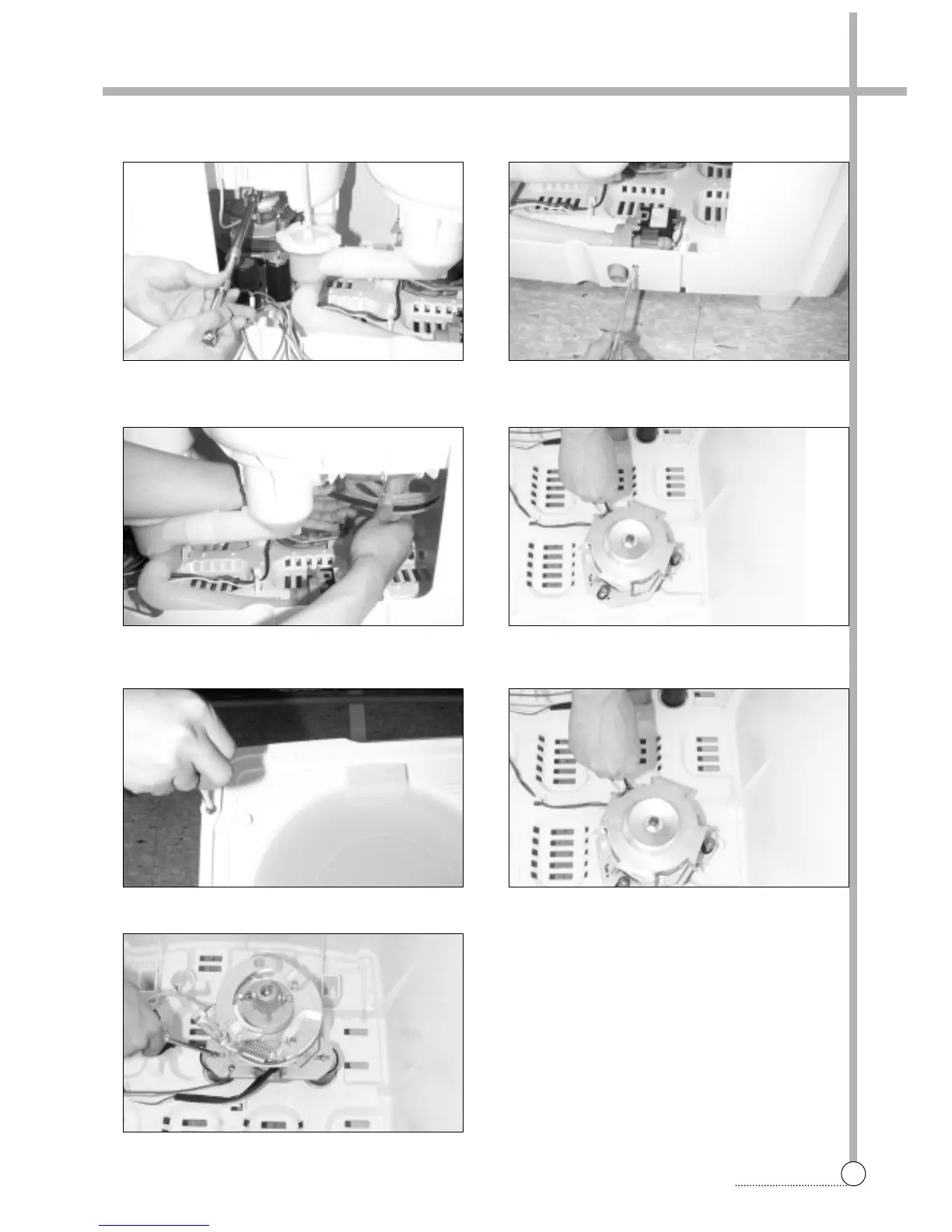

DISASSEMBLY
3. Remove bolt and nut on the upper side of the drum
coupling as and lift up the basket spin.
5. Remove a belt connecting motor pulley and pulsator
pulley.
7. Remove cap screw(2EA) and 5 screws on flange
of the tub. And lift up the tub assembly.
9. Remove 3 screws and spin motor.
4. Remove 1 screw fixing the drain pump.
(pump model)
6. Separae harness as connefctors.
8. Remove 3 screw on the base and Remove wash
motor.
