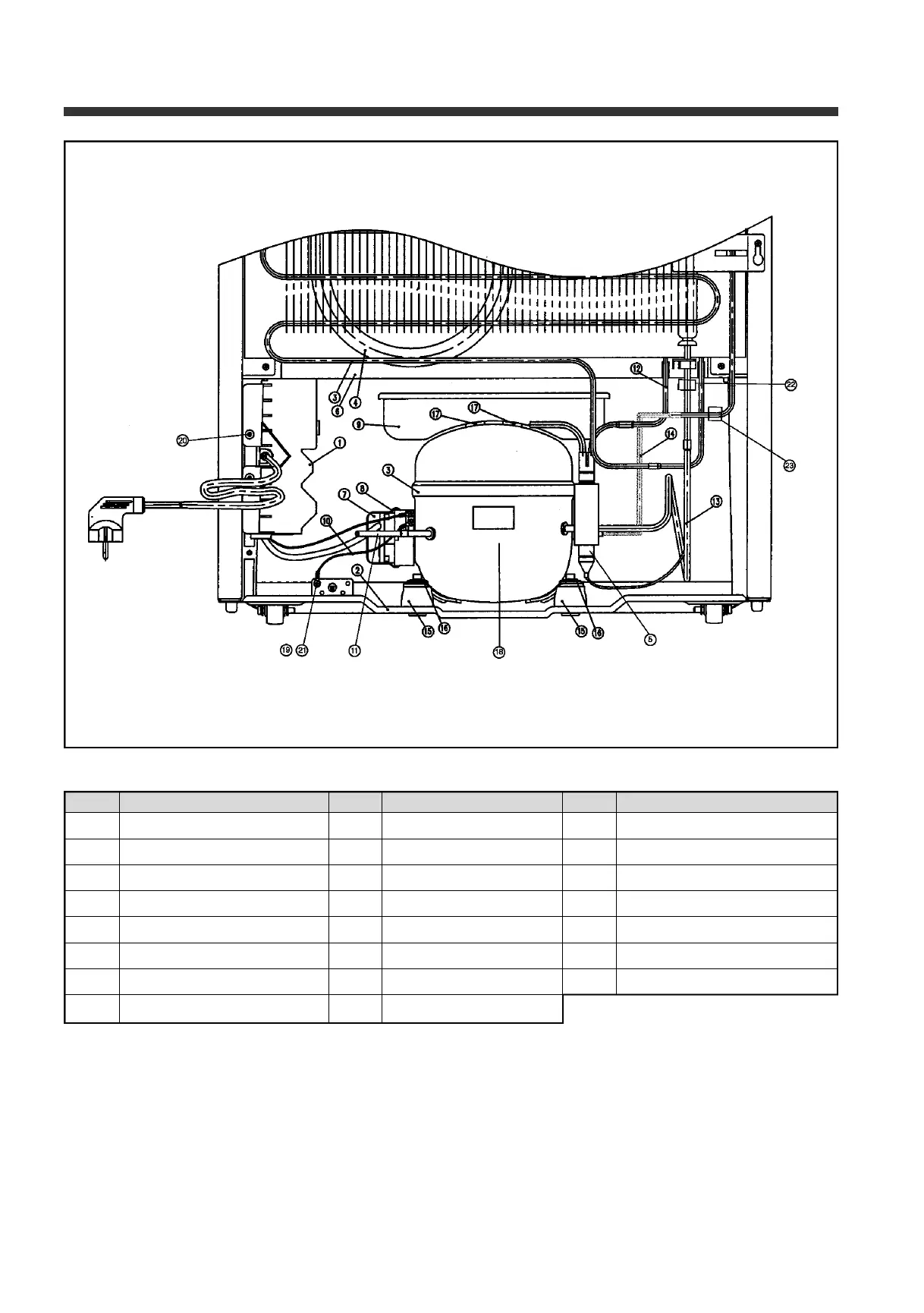

7. MACHINE ROOM VIEW A N D
NO PART NAME NO PART NAME NO PART NAME
1 ASS´Y BOX POWER 9 CASE VAPORI 17 ABSORBER VAPORI CASE
2 BASE COMP. AS 10 HARNESS EARTH 18 COMPRESSOR
3 ASS´Y WI-CON 11 PIPE CHARGE 19 SCREW MACHINE
4 SUCTION PIPE AS 12 HOT PIPE 20 SPECIAL SCREW C.
5 DRYER AS 13 PIPE SUCTION CONN 21 SPECIAL WASHER
6 BASE CAB. 14 CONN. B 22 ABSORBER PIPE B
7 COVER RELAY BOX 15 ABSORBER COMP. 23 ABSORBER PIPE C
8 BAND RELAY 16 FIXTURE COMP.
