2. WIRING DIAGRAM
4
WIRING DIAGRAM

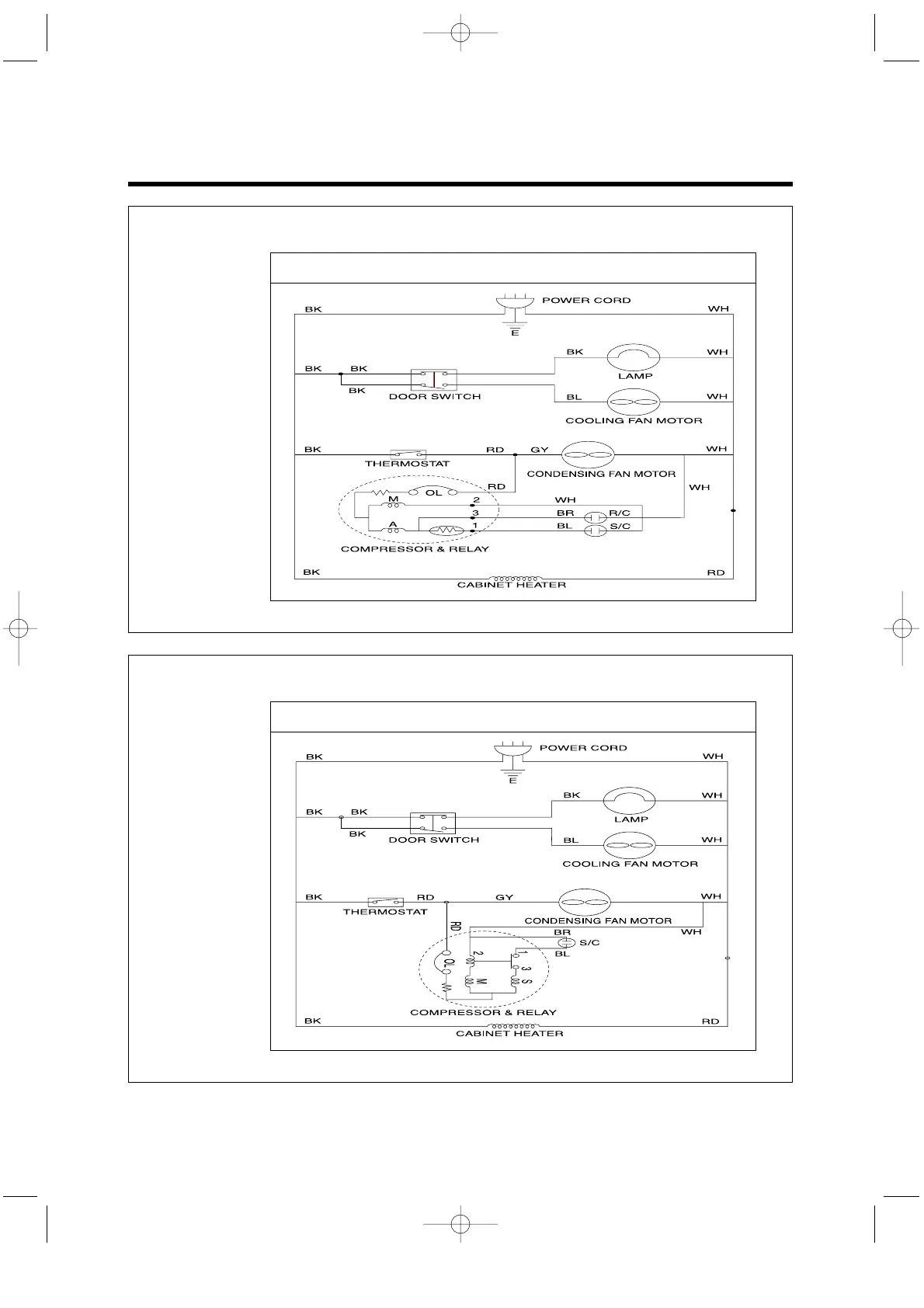

2-1. FD,SD-650R
WIRING DIAGRAM
2-2. FD,SD-650R
127V, 115V/60Hz
220V/50,60Hz
