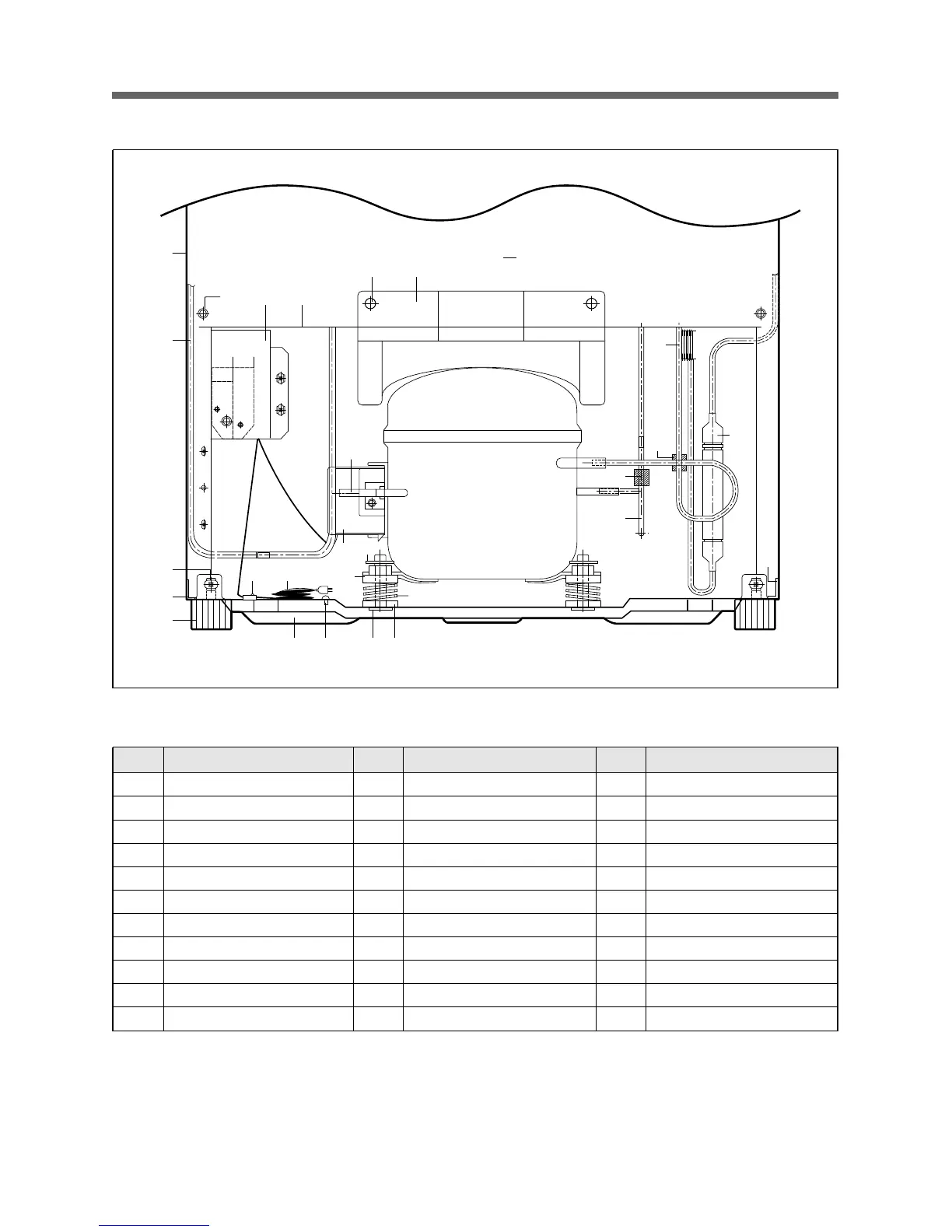

7. MACHINE ROOM VIEW AND PART LIST
1
6
5
30
11 12
17
28 27
19
15
14
16
29
25
9
26
13
9
20
8
21
10
18
31
24
22 3
23
32
2
NO PART NAME NO PART NAME NO PART NAME
1 CABINET AS 12 FIXTURE COMP BOLT 23 TIMER
2 COVER CAB AS 13 ABSORBER COMP RUB (B) 24 CAPACITOR RUNNING
3 BASE CAB AS 14 ABSORBER COMP SPG 25 SCREW MACHINE
4 REINFORCE *L 15 ABSORBER COMP RUB (A) 26 SCREW TAPPING
5 REINFORCE *R 16 WASHER COMP *T 27 CORD POWER
6 PIPE CON 17 COMPRESSOR 28 SCREW TAPPING
7 PIPE HOT 18 PIPE SERVICE 29 BOLT HEX
8 PIPE SUC AS 19 SWITCH P-RELAY AS 30 FOOT ADJ *L
9 PIPE AUX CONN 20 VIBRATIONPROOF MASS (B) 31 FIXTURE VAPORI
10 DRYER AS 21 VIBRATIONPROOF MASS (A) 32 CASE VAPORI
11 BASE COMP 22 BOX POWER
