Methods of exchanging main parts

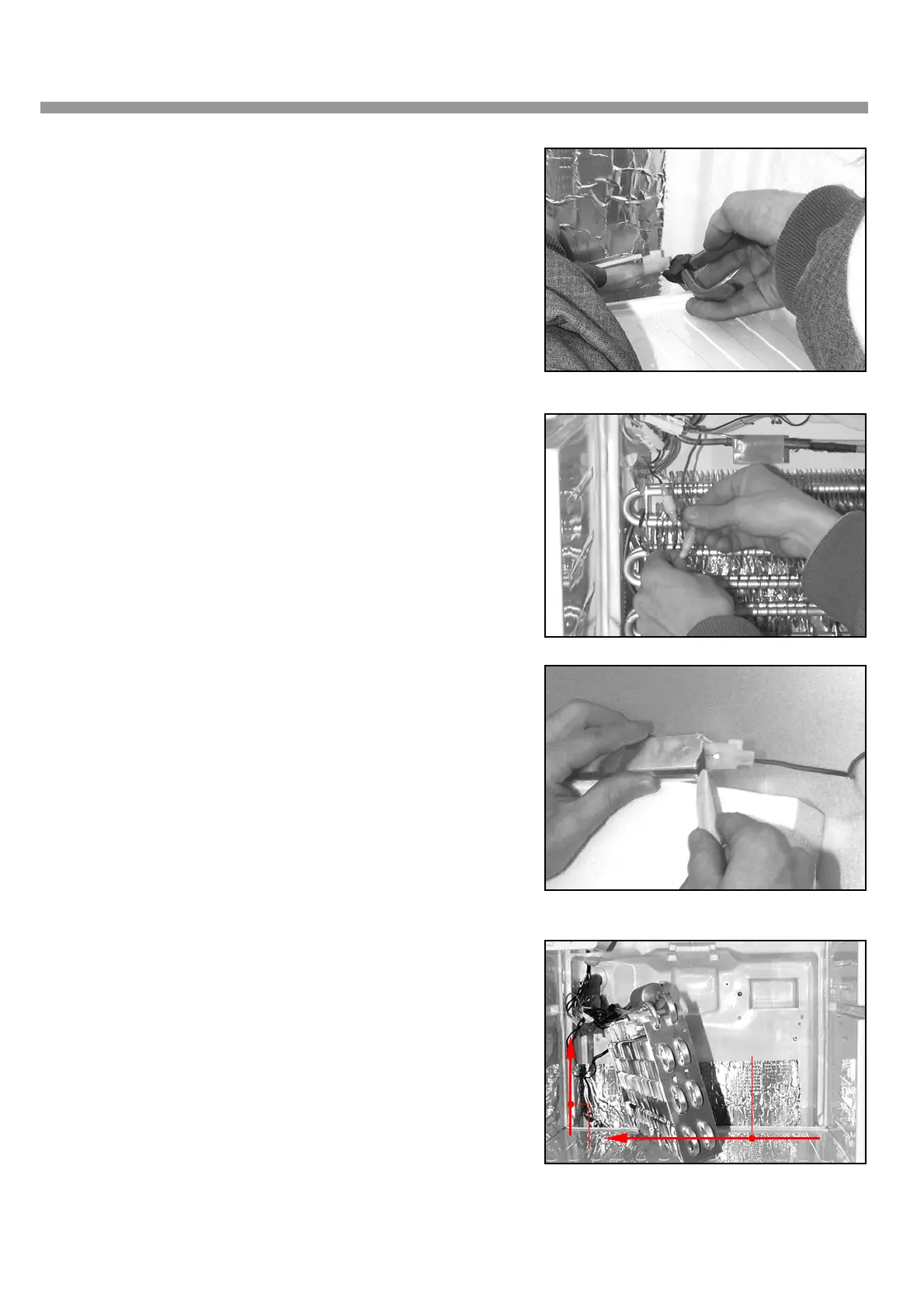

5) Strip the aluminum tape fixing the defrost heater and cut
both of lead wire.
6) Remove two (white and gray) defrost heater terminals among
the lead wires mounted on left wall.
7) Detach the upper and lower part of heater cover from defrost
heater by knife.
8) Assembly procedure after replacing defrost heater.
a.
Assemble the upper and lower part of heater cover.
b.
Lead wire is arranged as shown in figure.
c.
Attach aluminum tape after removing water.
d.
When put evaporator, take care not to strip lead wire.
