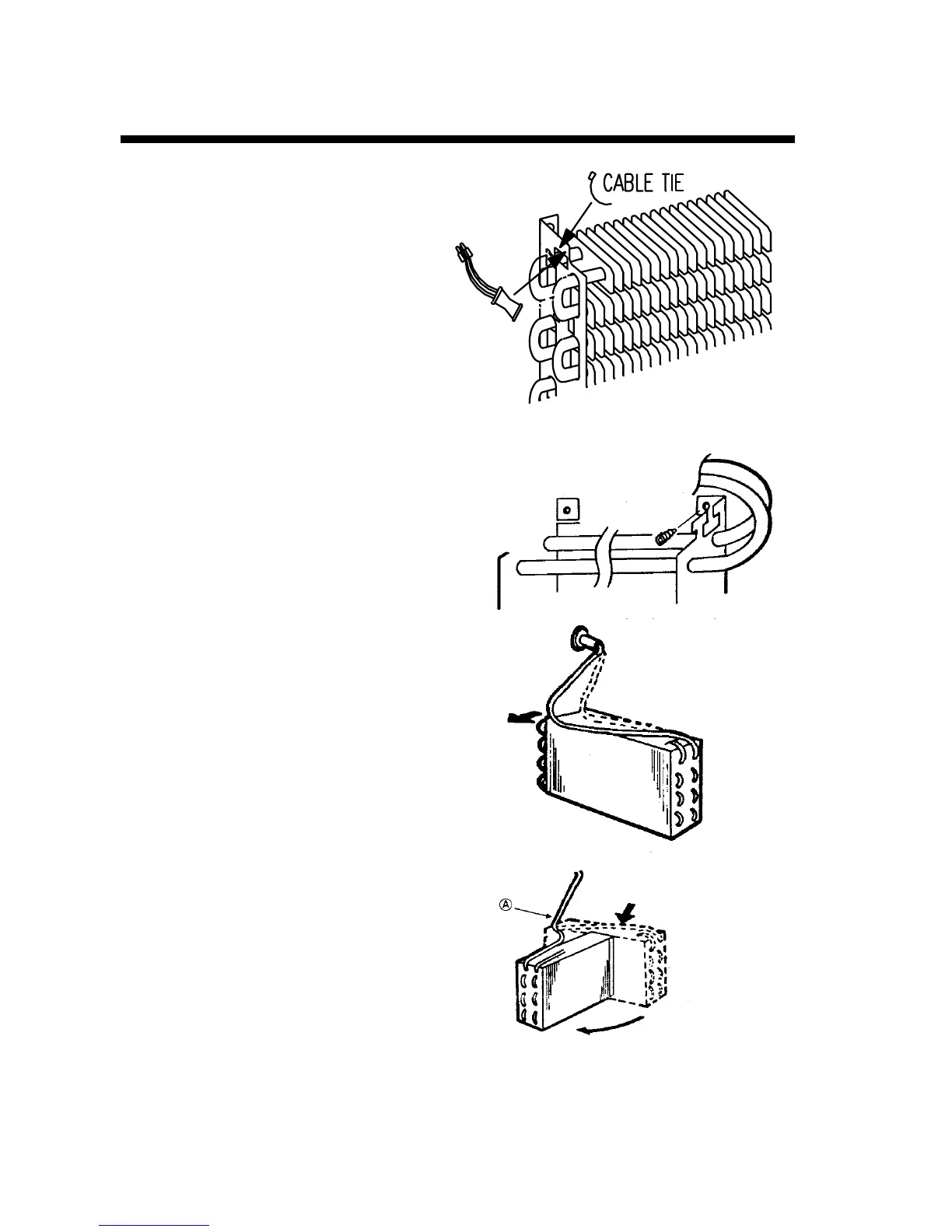

Methode of exchanging main parts
(3) Bimetal
1) Cut off the wire bind.
2) Take out the bimetal.
(4) Glass tube heater
1) Remove 2 screws that fasten the evaporator.
2) Slightly pull the evaporator to the arrow's
direction.
3) Move the entire eveporator upward the pipe
center to the arrow's direction.
(Do not crumble the part A of the
accumulator during the process.)
-7-
Evaporator fastening screw
BIMETAL
To Next Page
